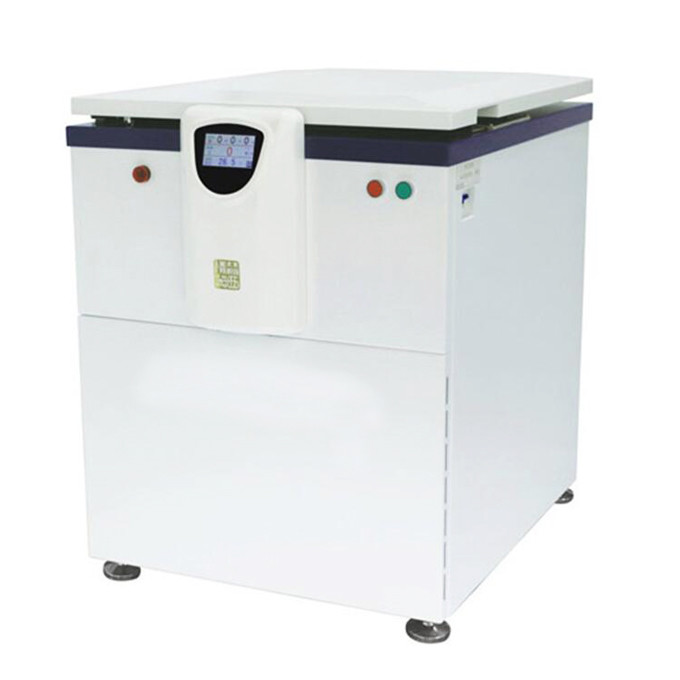

HR/T20MM 65dB High Speed Large Capacity Refrigerated Centrifuge 2KW 65dB

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: HR/T16MM, HR/T20MM
Minimum Order Quantity: 1 set
Price: USD6000-10800/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Temperature Setting Range: -20℃~40℃ Max Capacity: Swing Rotor 4×750 Ml
Max Speed(r/min): 20600r/min RCF(×g): 29280×g
Display: English LCD Screen
Highlight:

65dB high speed centrifuges

,

large capacity refrigerated centrifuge 2KW

,

HR/T20MM high capacity centrifuge

HR/T20MM High-Speed Centrifuges Lab Equipment High Speed Large Capacity Refrigerated Centrifuge





Application

The design is exquisite and can be combined with PCR8 tube, the volume is only 680 × 350 × 300mm, can quickly precipitate and separate DNA, RNA, protein and virus under the centrifugal force of 18780 × g, applied to bacteria, protein precipitation, nucleic acid extraction, cells / Subcellular component separation, environmental sample treatment, clinical test sample processing, etc.



Characteristic:

1. It adopts single-chip microcomputer and Infineon drive module, cooperates with independent research and development control board and large torque AC brushless frequency conversion motor. The fastest lifting speed is 25 seconds, stable operation and low noise, providing a comfortable laboratory environment.

2. Fluorine-free refrigeration compressor unit and environmentally friendly refrigerant R404a, with a wide temperature control range: -20 °C - +40 °C, and can be set during the operation of the centrifuge; with pre-cooling function, can quickly cool down to the set temperature With standby cooling, the set temperature can be maintained in standby mode.

3. It has various early warning functions such as overspeed, over temperature, unbalance, under pressure and overpressure, three-stage damping and shock absorption, special combination damping device, which makes the motor run safely and reliably, prevent the sample from resuscending and achieve excellent centrifugal effect. .

4. TFT-LCD true color display, touch screen button and physical button dual operation mode, with special button for centrifugal force display, display setting parameters and running parameters at the same time, can change parameters at any time during operation, no need to stop, intuitive operation interface, Simple and easy to use; the operation menu is available in multiple languages ​​(Chinese, English, Russian, Portuguese).

5. Bio-safety airtight angle rotor adopts silicone rubber integral sealing ring (EU RoHS 2015/863), which can avoid aerosol spillage and fully guarantee the safety of workers and laboratory environment.

6. Rear austenitic 304 stainless steel centrifugal chamber with all-steel sprayed plastic shell, one-piece stamped steel front face and three-layer steel protective cover, etc., which are both durable and durable, ensuring the safety of workers and laboratories.

7. One of the smallest high-speed refrigerated centrifuges in China, saving lab limited bench space.

8. The mute electromechanical motor door lock is easy to use. Simply close the door cover, the door lock system will be triggered and the door cover will be locked safely.

9.10 speed acceleration and 10 speed reduction rate control, can store 20 sets of user-defined programs, easy to call common programs, boot to the last used program.

10. Aviation forged aluminum rotor, suitable for 0.2mL to 2.0mL centrifuge tube, supporting PCR eight-row tube.

11. It has CFDA filing and CFDA production qualification, and has passed ISO 9001 certification and ISO 13485 certification.



Technical Parameters:

MODEL HR/T16MM Benchtop High speed Refrigerated Centrifuge
Max Capacity 24×1.5/2.0 ml
Max speed(r/min) 16500
MAX RCF(×g) 18780
Standard rotor 24×1.5/2.0 ml
Speed Accuracy ±50r/min
Refrigerated system Fluorine-free refrigeration compressor unit and environmentally refrigerant R404a
Temperature setting Range -20℃~40℃
Temperature Accuracy ±1℃
Time Range 1-99h59min
Noise Level ≤60 dB
POWER AV220V 50Hz
SIZE L*W*H 680x350x300mm



Rotor spec:

Product NAME CAPACITY SPEED(r/min) RCF(×g)
ROTOR 12×1.5/2.0 ml 16500 18780
24×1.5/2.0 ml 13500 16940
PCR 2×8×0.2ml 15000 11030
4×8×0.2ml 15000 11030





Model HR/T20MM Floor-Stand High speed Refrigerated Centrifuge
Max Capacity Swing rotor 4×750 ml
Max speed(r/min) 20600r/min
Speed Accuracy ±50r/min
MAX RCF(×g) 29280×g
Refrigerated system Fluorine-free refrigeration compressor unit(R404a)
Temperature setting Range -20℃~40℃
Temperature Accuracy ±1℃
Running program 20组
Control and drive system AC variable frequency motor, microcomputer control
POWER 2.0Kw
Time Range 1-99h59min
Noise Level ≤65 dB
Rotor identification AUTO
POWER SUPPLY AV220V 50Hz
WEIGHT 150 Kg
SIZE 710×560×770 mm



Rotor spec:

Parts Name Capacity HR/T20MM
speed(r/min) RCF(×g)
Swing rotor 4×750 ml 4000 3520
4×250 ml conical bottom 4000 2780
4×250 ml flat bottom 4000 2780
4×500 ml 4000 3580
Adapter 4×250 ml  4000 3580
4×8×15 ml  4000 3580
4×12×10 ml  4000 3580
4×3×50 ml  4000 3580

4×19×5 ml

(Vacuum blood collection tube)

4000  3580
Angle rotor 12×1.5/2.0 ml 20600 29280
24×1.5/2.0 ml 14000 18220
12×10 ml/5ml 14000 18810
8×15ml round bottom 12000 14830
8×15ml conical bottom 12000 15120
6×50 ml round bottom 12000 13820
6×50 ml conical bottom 12000 15120
8×50 ml round bottom 10000 13800
8×50 ml conical bottom 10000 14880
6×100 ml 11000 13310
6×250 ml 8000 9660
Swing micro-plate rotor 2×2×96hole 4000 2360
Swing micro-plate rotor 4×2×96hole 4000 3150



HHR/T20MM 65dB High Speed Large Capacity Refrigerated Centrifuge 2KW 65dB 0HR/T20MM 65dB High Speed Large Capacity Refrigerated Centrifuge 2KW 65dB 1

HR/T20MM 65dB High Speed Large Capacity Refrigerated Centrifuge 2KW 65dB 2

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
