| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | Bio-Reader300 |
| Minimum Order Quantity: | 1 set |
| Price: | USD15000-25800/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Equipment Name: | Multi-purpose Microplate Reader Elisa | Plate Types: | 96 & 384 Wells Elisa Plates |
|---|---|---|---|
| Function: | Absorbance, Fluorescence, Luminescence | Display: | English Touch Screen |
| High Light: | biotek elisa reader,biotek plate reader PD,biotek microplate reader |
||

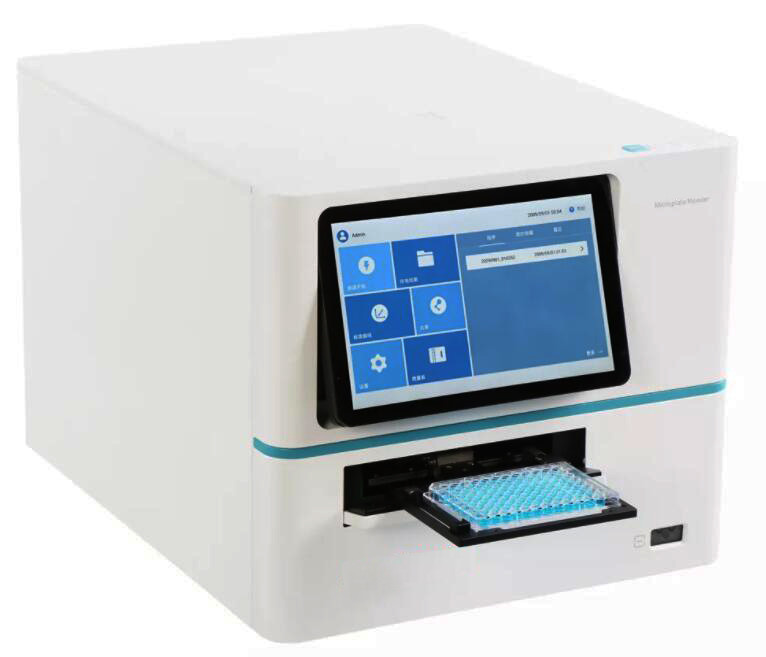

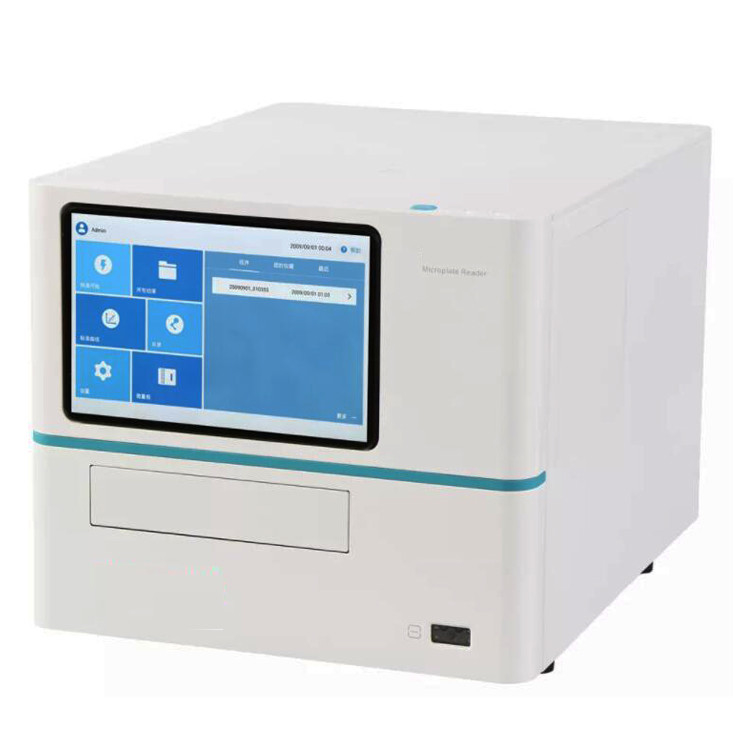

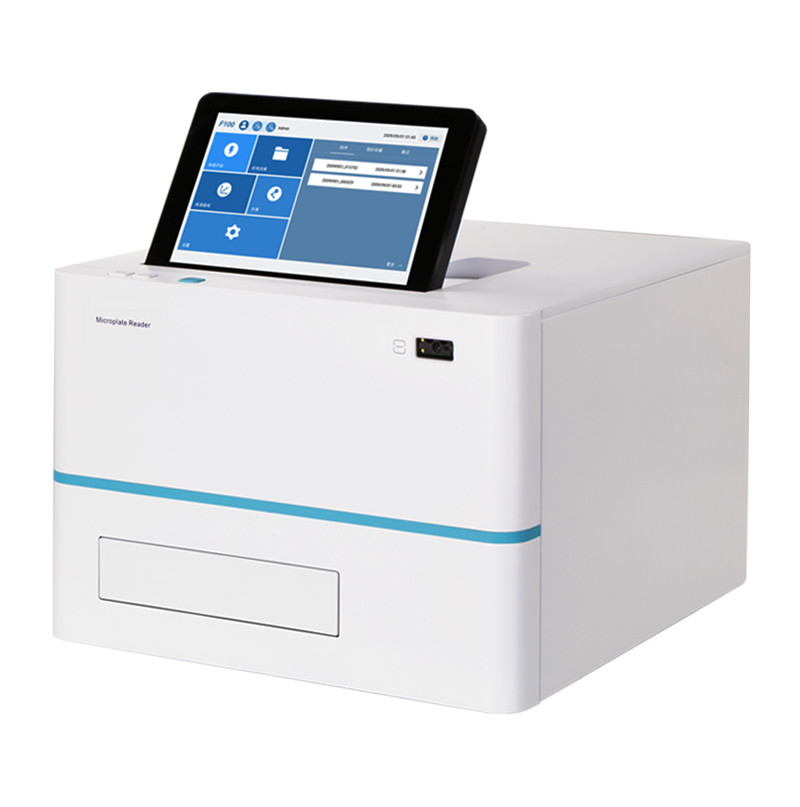

Biosystems Elisa Chemiluminescence Immunoassay Fluorescent Microplate Reader Biotek Synergy LX
The Bio-Reader300 multi-purpose chemiluminescence immunoassay fluorescent microplate reader offers affordable high performance detection solutions, powered by monochromator and filter based technologies. A multi-mode fluorescence-based DNA/RNA quantification assays of COVID-19.
The Bio-Reader300 multi-purpose microplate reader is a high performance multi-mode detection instrument to provide a simple means of detecting advanced chemistries. This instrument provides researchers UV-visible absorbance measurements, flexible use of filters for fluorescence intensity and filtered luminescence measurements.
Features:
· UV / Vis Absorbance
Wavelength selection in Bio-Reader300 is done by using an advanced monochromator system. Any wavelength between 200 to 1000nm can be selected. Using the spectral scanning feature, the whole spectrum of a sample be scanned in 1nm increments to allow identification of the optimal measurement wavelength for a new assay.
· Fluorescence
Bio-Reader300 is equipped with filter-based fluorescence optics and dichroic mirrors for screening applications such as fluorescence polarization, and TR-FRET. Standard applications such as fluorescence-based DNA/RNA quantification assays are not only supported in microplates, but also in low volume u-Nano Ultra-Micro plate.
The independent removable filter modules make it more convenient for users to replace the filter. The filter-based fluorescence optics detection ensures high sensitivity, greater light transmission, precise control over transmitted peak shape, excellent blockage of undesired wavelengths. This is ideal for excitation and emission applications. The filters are also the technically preferred and most cost efficient technology for non-absorbance based assays.
· Luminescence
Bio-Reader300 has been designed with a dedicated luminescence detection system for both flash and glow based assays. It can offer excellent sensitivity and wide dynamic range in luminescence measurement. The optimized precision dual-channel injectors ensure the detection performance of the 96-well and 384-well plate. The PMT enhances the maximum sensitivity of weak luminescence signals, prevents oversaturation of high signals, effectively improves the detection range of luminescence and minimizes signal crosstalk between wells.
· User Authority Classification
User permissions are divided into four levels, with clear permissions to avoid the occurrence of misuse by researchers;
Administrator can manage the accounts of different sub-users;
The users have independent accounts and passwords to ensure the safety and confidentiality of experimental results.
· Intuitive Interface Display
Intuitive selection of function modes, easy parameter setting;
The layout colors are distinguished clearly, convenient to be checked for the position of the sample;
Programs and results are stored independently, making it easy to be found the required applications.
· Powerful Data Analysis and Process
Provide multiple data processing methods including blank subtraction, standard curve creation, qualitative analysis, quality control, kinetics and spectral analysis to help you obtain the analysis results you want;
Algorithm customization: according to your assays needs, you can customize the required algorithm, tailor-made for convenient assays.
· Liberalized User Communication
The software has with a shared library, which can store the program, results and standard curves for sharing them with others;
The program and standard curve can be created in real time to a QR code, and the required content can be imported only by scanning the code with the instrument.
· FTP (File Transfer Protocol)
Upload the data directly to a computer with a FTP server, and users can view the data results at any time in the authorized folder.
Technical datas:
| Basic Information | Linear dynamic range | 6 logs | |
| Type | Bio-Reader300 | Crosstak | ≤0.005% |
| Function | Absorbance, fluorescence, luminescence | Shaking & Incubation | |
| Plate Formats | 96 & 384 wells (6/12/24/48 optional) | Shaking mode | Linear, circular, double circular |
| Absorbance | Incubation temperature | RT +4°C to 45°C | |
| Light source | High energy xenon flash lamp | Temperature uniformity |
±0.5°C@37°C |
| Detector | PD | Software | |
| Wavelength accuracy | 2nm | Software interface | Chinese/English |
| Wavelength repeatability(SD) |
0.2nm | Screen size | 10-inch LCD display |
| Half width (FWHM) | ≤2.5nm | Operation method | Touch capacitive screen; use mouse |
| Wavelength range | 200-1000nm, 1nm step | Data capacity | 10 GB |
| Measuring range | 0-4 OD | Compatibility | Support PC software, win7 to win10 64 bit |
| Resolution | 0.0001 OD | Data transmission | Test data report can be uploaded to PC server via FTP |
| Accuracy | 96-precision mode ±(1.0%+0.003Abs) @ (0.0-2.0Abs] ±2.0% @ (2.0-3.0Abs] |
Others | |
| Instrument port | 2 USB A type ports / 1 USB B type port 1 Ethernet port Rs232 bus interface (sampling device connection) |
||
| Repeatability | CV < 1.0% or SD< 0.003 Fast (0.0-3.0Abs] CV < 0.5% or SD< 0.003 Accurate (0.0-3.0Abs] |
||
| Stray light | 0.1%@220 nm | Size (WxDxH) | 420x550x386mm |
| Linear | R2≥0.999@[0.0-3.0Abs] | Power supply | AC 100 to 240V, 50 to 60Hz |
| Reading time | 96-well plate: fast<15s | Weight | 33kg |
| Fluorescence | u-Nano Ultra-Micro Plate (Optional) | ||
| Reading mode | Top reading | Number of samples | 1-16 |
| Excitation light source | High energy xenon lamp | Sample detection volume |
2-4μL |
| Detector | PMT | Automatic Injector Module (Optional) | |
| Wavelength range | EX: 200-1000nm; EM: 270-850nm | Quantity | 1, 2 |
| Filter EX / EM | 3 groups(470nm/525nm,523nm/564nm,642nm/692nm) | Dispensing volume |
5-1000μL, 1μL increment |
| Detection limit | ≤1pM | Liquid injection speed |
125-500μL/s |
| Linear dynamic range |
6logs | Accuracy | ±1μL@5-50μL ±2% @ 51-1000μL |
| Luminescence | Waste liquid collection |
50mL | |
| Detector | PMT | PC Software (Optional) | |
| Detection limit | 15 amol/hole | Analysis software | ReaderIt-II |
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
