| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | Scientz-IIDM |
| Minimum Order Quantity: | 1 set |
| Price: | USD9500-12000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/month |
| High Light: | Scientz-IIDM microwave chemical reactor,durable microwave synthesis reactor,laboratory microwave reactor 2450MHz |
||
|---|---|---|---|

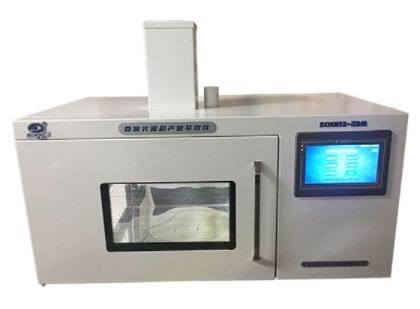

Laboratory Microwave Ultrasonic Microwave Extractor Ultrasonic-Microwave Reactor
Scientz-IIDM Microwave Ultraviolet Ultrasonic Synthesis Extraction System is a comprehensive laboratory instrument, which can arbitrarily select multiple combination modes of microwave, ultrasonic, light wave, ultraviolet and magnetic stirring, so as to truly realize one machine with multiple functions. It is the best choice to study the methods and mechanisms of chemical reaction, chemical synthesis, material preparation and analytical chemical sample pretreatment. It is widely used in Colleges and universities and scientific research institutions.
|
Model
|
SCIENTZ-IIDM
|
|
Microwave power
|
1000W(1%-100%)
|
|
Microwave frequency
|
2450 MHz
|
|
Working hours
|
0-999S
|
|
Microwave action mode
|
Pulse continuous heating
|
|
Light wave power / wavelength
|
0-800w / infrared section
|
|
Working hours
|
0-999
|
|
UV power / wavelength
|
50W/365nm
|
|
Diameter of ultrasonic horn
|
Φ 8mm
|
|
Ultrasonic power / frequency
|
10-1000W/20-25 KHz
|
|
Ultrasonic action mode
|
The immersion ultrasonic transducer is in direct contact with the materials in the container, and the acoustic vibration (energy) efficiency is close to 100%
|
|
Magnetic stirring
|
50-300 rpm
|
|
Program control
|
200 groups of programs can be preset, and each program can preset time (0-999S), microwave, light wave, ultrasonic power, ultraviolet (on / off), stirring and other control working parameters, which can be stored by computer and can be directly set,modified and called
|
|
Temperature control
|
Non contact infrared temperature measurement. Temperature and temperature control range, room temperature ~ 300 ℃ (± 1 ℃)
|
|
Whole machine control
|
Full Chinese true color touch screen man-machine interface, industrial microcomputer PLC programmable controller
|
|
Password
|
Secondary password of user and administrator
|
|
Reflection monitor
|
Integrated screen with real-time video window to monitor sample reaction status
|
|
LED lighting power / color temperature
|
24W/6200K
|
|
Network interface
|
RJ45
|
|
Sample volume
|
Standard configuration 500, 1000ml (special specifications can be customized according to user requirements)
|
|
Protection
|
With multiple safety interlock protection devices such as magnetron temperature protection and door switch protection, it has high
reliability and safety
|
|
Material
|
The stainless steel inner shell is durable
|
|
Furnace cavity volume
|
25L
|
|
Power supply:
|
220V/110V, 50HZ/60HZ, 3000W
|
|
Microwave leakage complies with national standards
|
|
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
