HPC600 Vehicle Exhaust Gas Analyser Portable Diesel Smoke Opacity Meter

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: HPC600 HPC601
Minimum Order Quantity: 1 set
Price: USD1000-4000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Measuring Range Opacity N: 0~100% Speed: 0-9990rpm
Oil Temperature: 0-150℃ Warranty Time: 12 Months And Life-time Technical Support
High Light:

Portable diesel opacity meter

,

vehicle exhaust gas analyser

,

diesel smoke opacity meter

Portable Gas Smoke Opacity Testers Diesel Vehicle Automobile Exhaust Gas Smoke Opacity Meter



Bonnin HPC600 HPC601 Portable Smoke Opacimeter Diesel Vehical Handheld Smoke Opacity Meter



Main features:
Split structure design, more convenient operation, more accurate data;
Large-screen LCD display, full Chinese menu operation;
Using split-flow sampling technology, the smoke can be measured when the diesel vehicle accelerates, decelerates and stabilizes;
The data is automatically linearized, and the opacity N, light absorption coefficient K and the corresponding filter paper smoke value Sf can be displayed;
Use "air curtain" technology to protect the optical system from pollution;
Automatic temperature control in the testing room can prevent condensation and affect the test accuracy;
With automatic time display;
Equipped with built-in automatic printer or Blue-tooth, RS232 interface;
License plate number input and 500 sets of data storage, reference function, clock display
Equipped with test channels for speed and oil temperature;
Meet the requirements of ISO116614, GB3847-2018, GB36886-2018, JJG976-2010.



Main technical parameters:

Measuring range Opacity N 0~100% (equivalent to smoke value 0~10FSN)
Light absorption coefficient K 0~16.06m-1
Speed 0-9990rpm

Oil temperature: 0-150℃
Indication error ≤±2% (measured value)
Stability Automatic zero calibration, torque drift ≤±1%/4h
Repeatability Repeat error≤±1%
Resolution N is 0.1%, K is 0.01m-1, RPM is 10rpm, OIL TEMP is 0.1℃
Output mode LCD display, printer can be attached to print smoke density (maximum darkness), instant curve, test time,
Date etc. An interface can be attached to connect to a computer network.
The temperature of the measuring room is 70℃ (automatic constant temperature). When the temperature error is ≥±10%, the temperature and error indicator lights are on
Environmental conditions Temperature -5~50℃, relative humidity ≤90%
Power AC100-240V 50/60Hz or DC12V (optional power inverter) Power consumption 150VA
Dimensions Control unit 240mm (length) × 310mm (width) × 170mm (height)
(Including bracket) Measuring unit 130mm(length)×400mm(width)×390mm(height)
Weight: control unit 4kg
measuring unit 5kg

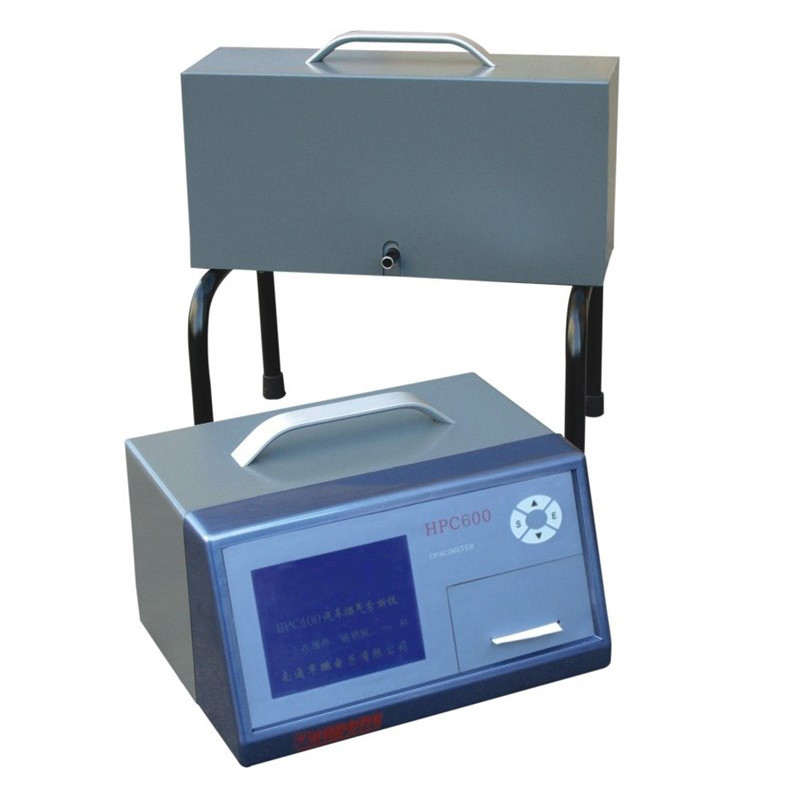

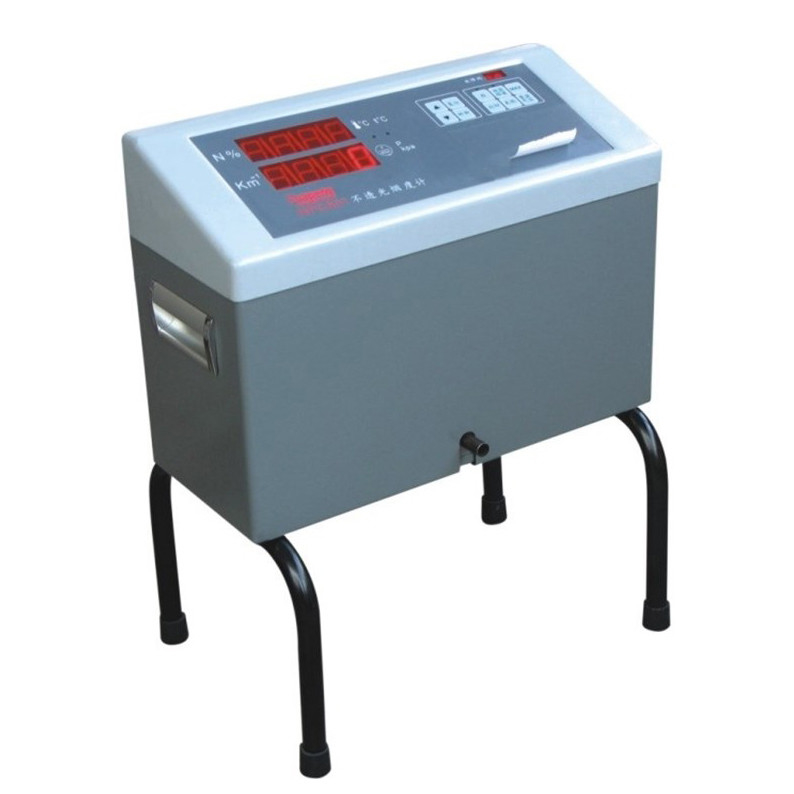

HPC600 Vehicle Exhaust Gas Analyser Portable Diesel Smoke Opacity Meter 0HPC600 Vehicle Exhaust Gas Analyser Portable Diesel Smoke Opacity Meter 1

HPC600 Vehicle Exhaust Gas Analyser Portable Diesel Smoke Opacity Meter 2

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
