AC100V Car Automobile Exhaust Gas Analyzer Portable 5 Gas HC CO CO2 O2 NOx

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: HPC501, HPC506
Minimum Order Quantity: 1 set
Price: USD1000-3000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Display: English LCD/Touch Screen Detecting Gas: HC,CO,CO2,O2,NOx
Preheating Time: 8min ( Preheating 3min Emergency Detection) Warranty Time: 12 Months And Life-time Technical Support
High Light:

AC100V Automobile Exhaust Gas Analyzer


CO2 automotive portable 5 gas analyzer


CO2 car exhaust gas analyzer


5 Gas HC,CO,CO2,O2,NOx Car Automobile Exhaust Gas Analyzer



Automotive exhaust gas analyser is used to measure the concentration of HC, CO, CO2, O2 and NOx in the exhaust gas of automobiles, automatically calculate and display the air-fuel ratio λ, and can comprehensively detect engine combustion performance and emission pollution. Adopting foreign advanced technology and imported German movement. It has high-brightness digital display, automatic zero calibration, automatic data linearization processing, automatic alarm when the gas path is blocked, automatic diagnosis of the unit when the fault occurs, the instrument is suitable for the detection of engine exhaust gas composition of gasoline, LPG, CNG, alcohol and diesel fuel , Optional built-in printer (or Blue-tooth, RS232, analog interface), meet the new national standard GB18285-2018 and American BAR-97 standards, meet ISO3930 or OIMLR99 class I accuracy, can perform free idle speed, double idle speed measurement and multi-condition measurement, It has the characteristics of convenient operation, accurate measurement data, stable and reliable work.


Main technical parameters:
Measuring range

HC: 0~10000×10-6(ppm)vol
CO: 0~14×10-2(%)vol
O2: 0~25×10-2(%)vol
NOx:0~5000×10-6(ppm)vol λ:0.50~3.00 COcor:0~10×10-2(%)vol

Indication error HC ± 12 × 10-6 (ppm) vol (absolute error) or ±5% (relative error)
CO±0.06×10-2(%)vol (absolute error) or ±5% (relative error)
CO2 ±0.5×10-2(%)vol (absolute error) or ±5% (relative error)
O2 ±0.1 ×10-2(%)vol (absolute error) or ±5% (relative error)
NOx ±25 ×10-6 (ppm) vol (absolute error) or ±4% (relative error)
Note: The absolute error and relative error listed above can meet one of the requirements.

Repeatability Repeat error≤±2%
Stability Automatic zero calibration, torque drift ≤±3%
Resolution HC: 1×10-6(ppm)vol CO: 0.01×10-2(%)vol CO2: 0.1×10-2(%)vol
O2: 0.01×10-2(%)vol NOx: 1×10-6(ppm)vol λ:0.01
Response time 95% response is not more than 10 seconds
Warm-up time 8min (3min can be preheated for emergency detection)
Output mode Digital direct reading display, printer can be attached to print the gas name, maximum concentration, test time, day
Period etc. Can attach interface and computer network
Environmental conditions Temperature -5~50℃, relative humidity ≤90%
Power supply AC100-240V 50/60Hz or DC12V (optional power inverter) power consumption 40VA
Dimensions 420mm (length) × 310mm (width) × 170mm (height)
Weight 9kg

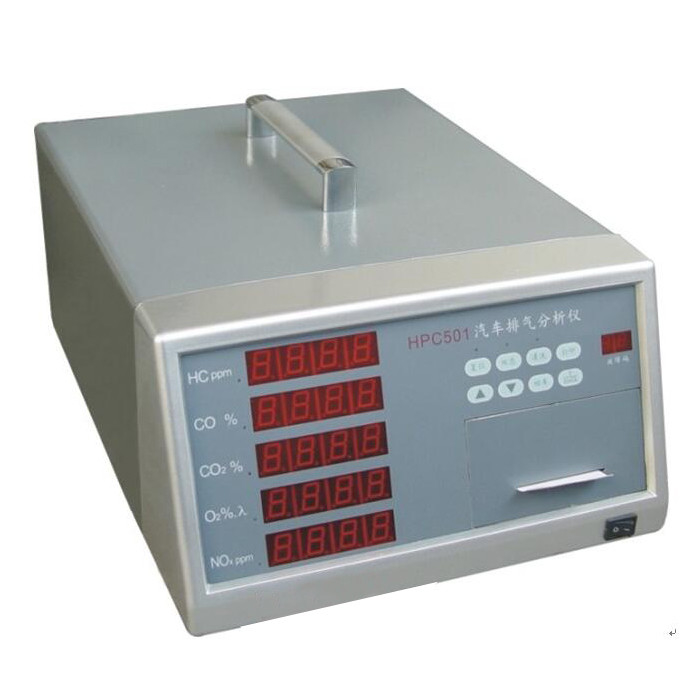

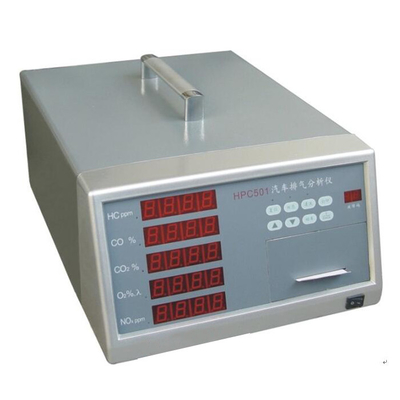

HPC501 Automobile emission analyzer.jpg Automobile emission analyzer.jpg

AC100V Car Automobile Exhaust Gas Analyzer Portable 5 Gas HC CO CO2 O2 NOx 2AC100V Car Automobile Exhaust Gas Analyzer Portable 5 Gas HC CO CO2 O2 NOx 3

AC100V Car Automobile Exhaust Gas Analyzer Portable 5 Gas HC CO CO2 O2 NOx 4

FAQ 1. Are you a factory or trading company?

We are a factory.


FAQ 2. Can you supply OEM?

OEM is available.


FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.


FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.


FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.


FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.


FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
