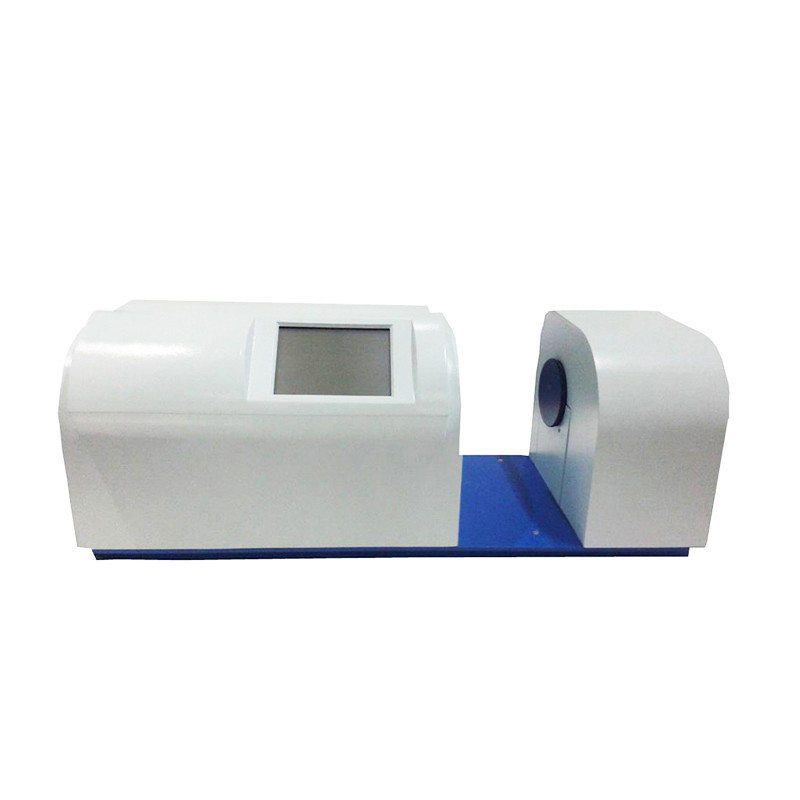

SGW-810 SGW-820 Digital Light Transmittance Haze Tester ASTM D1003

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: SGW-810, SGW-820
Minimum Order Quantity: 1 set
Price: USD2000-8000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Display: English Touch Screen Instrument Light Source: C Light Source(6447K)
Measuring Range Transmittance: 0%-100.00% Warranty Time: 12 Months And Life-time Technical Support
High Light:

haze meter ASTM D1003

,

light transmittance haze tester

,

SGW-810 haze tester

SGW-810 Digital Haze Meter Tester SGW-820 Digital Plastic Film Transmittance Haze Meter





BONNIN SGW-810 Digital Haze Meter Tester SGW-820 Digital Plastic Film Transmittance Haze Meter



The Digital Haze Tester is based on the National Standard GB/T2410-2008 "Transparency and Haze Test Methods for Transparent Plastics" of the People's Republic of China and the Standard Test Method for Haze and ASTM D1003-61 (1997). "Luminous Transmittance of Transparent Plastice" is a computerized automatic measuring instrument designed to measure the transmittance and transmission haze of all transparent and translucent parallel planes (plastic plates, sheets, plastic films, flat glass). It has a wide range of applications in defense scientific research and industrial and agricultural production.

It meet the test standards such as GB/T2410-2008, ASTM D 1003-61 (1997), JIS K7105-81 and are conducive to technical exchanges at home and abroad.



Instrument features:

Parallel lighting, hemispherical scattering, and integrating sphere photoelectric receiving method.

Using microcomputer automatic operating system and data processing system, no knob operation, easy to use. Up to 2000 sets of measurement result data can be saved, U disk storage function and standard USB interface to establish communication with PC.

The transmittance results are directly displayed to 0.01% and the haze is displayed to 0.01%.

Due to the use of the modulator, the instrument is not affected by the ambient light, and it is not necessary to use a dark room, which ensures the accuracy of large sample measurement.

With thin-film magnetic fixtures and liquid sample cups, it brings great convenience to users.

A piece of haze is attached randomly, which makes it easy to check the function of the instrument at any time. (Note: The haze cannot be rubbed, it can be blown with a blow ball).



Technical Parameters:

Instrument model SGW-810
Instrument light source C light source(6447K)
Measuring range Transmittance 0%-100.00%
Haze 0%-100.00% (0%-30.00% Absolute measurement)
(30.01%-100% Relative measurement)
Minimum indication Transmittance 0.01%, Haze 0.01%
Accuracy Transmittance≤1%
When haze<0.5%, ≤±0.1%; when haze>0.5%, ≤±0.3%
Repeatability Transmittance≤0.5%
When haze≤0.5%, 0.05%; When haze>0.5%, 0.1%
Sample window Into window Φ25mm out window Φ21mm

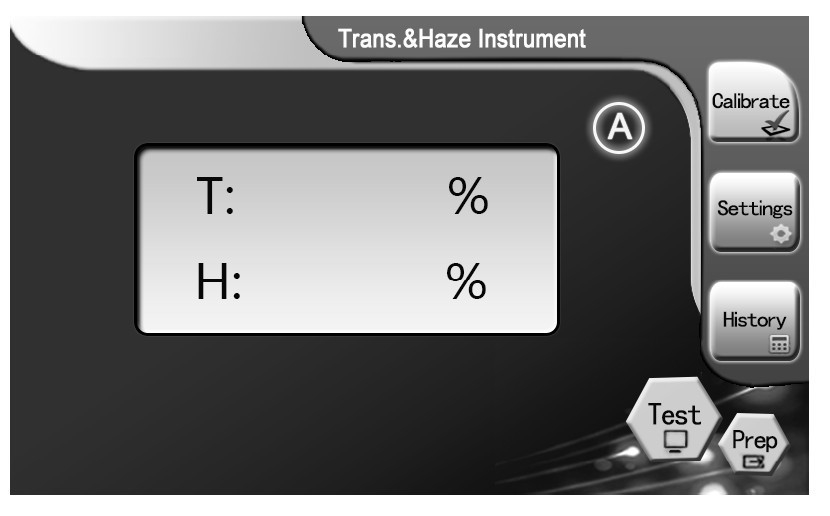

Display method 7 inch color touch screen
Communication Interface USB/Udisk
Data storage 1000 groups
power supply 220V±22V,50Hz±1 Hz
Instrument size 74omm ×230mm× 300mm
Instrument net weight 21kg


SGW-810 SGW-820 Digital Light Transmittance Haze Tester ASTM D1003 0SGW-810 SGW-820 Digital Light Transmittance Haze Tester ASTM D1003 1

SGW-810 SGW-820 Digital Light Transmittance Haze Tester ASTM D1003 2

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
