Automatic Camera Video Bonnin Melting Point Testing Machine FDA CFR21

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: AMP Series
Minimum Order Quantity: 1 set
Price: USD2000-5000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Display: Touch Screen Functions: Automatically Records The Melting Curve
Temperature: Room Temperature ~ 400 ℃ Warranty Time: 12 Months And Life-time Technical Support
High Light:

FDA melt point apparatus

,

Bonnin melting point testing machine

,

melting point tester CFR21

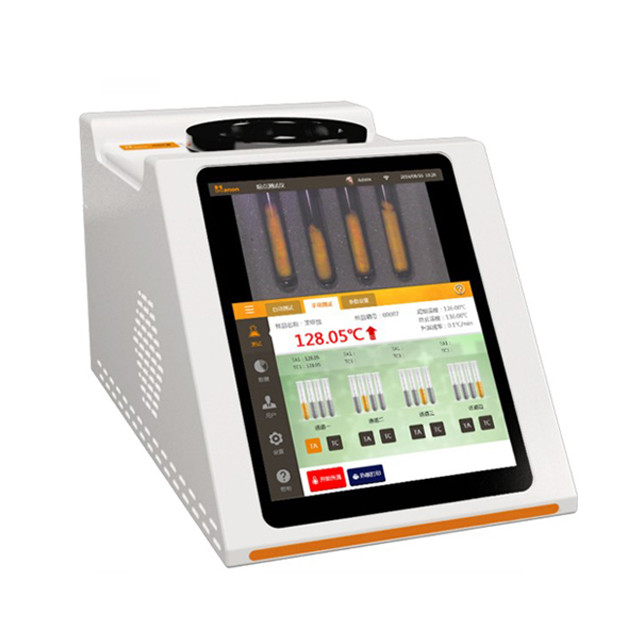

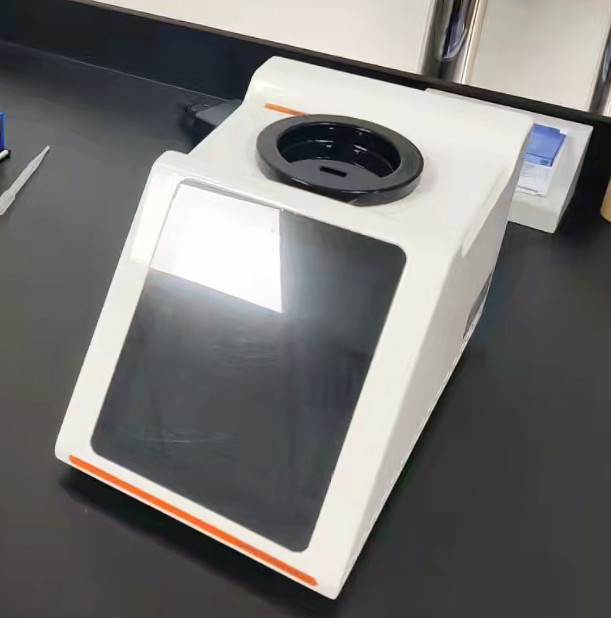

BONNIN Automatic Camera Video Melting Point Apparatus Automatic Melting Point Tester FDA CFR21



AMP series Video Melting Point Apparatus, perfectly integrate video technology into melting point measuring. It not only provides users with reliable melting point test result, but also intuitively displays temperature curve and real-time video image, and achieves the function of save, replay the video, stamp video and so on. It also provides better help for users to observe melting process of sample.



Features:

 All Screen Design

        Adopt a 8 inch capacitive touch screen, with the brilliant Android system, let the operating easier.



 Amazing Data Processing & Exporting

The methods, atlas and detailed result are available for storage. Connecting printer or all data export are both available.

        Compliant with GLP, GMP(EU,UPS&CN) and FDA CFR21 part 11



 Visual and Automatic Determination It includes a color display to observe the phase transition, is equipped with a video camera and a video replay function which allows reviewing the melting point determination. It also suit for color samples, which tradition automatic melting point apparatus not available.



 Available Testing 4 Samples Concurrently

 Max concurrent sessions 4 samples each batch, record and track each result independently, meet FDA CFR21 part 11 requirements.

 Multi-user ID Classify Function

 Adopt User ID management function. Users ID are available for adding, deleting and jurisdiction setting.



Technical parameters:

Model AMP420 AMP430 AMP450 AMP470 AMP490
Position Capacity 4 4 4 4 4
Magnification of lens 8 8 8 8 8
Display 8 inch capacitive touch screen 8 inch capacitive touch screen 8 inch capacitive touch screen 8 inch capacitive touch screen 8 inch capacitive touch screen
Temp Range 300℃ 350℃ 350℃ 400℃ 400℃
Temperature resolution 0.1℃ 0.1℃ 0.1℃ 0.1℃ 0.1℃
Temp Accuracy ±0.4℃(<200℃)±0.7℃(<300℃) ±0.4℃(<200℃)±0.7℃(<300℃) ±0.4℃(<200℃)±0.7℃(<300℃) ±0.4℃(<200℃)±0.7℃(<300℃) ±0.4℃(<200℃)±0.7℃(<300℃)
Temp Gradients Step-less setting at 0.1℃--20℃ Step-less setting at 0.1℃--20℃ Step-less setting at 0.1℃--20℃ Step-less setting at 0.1℃--20℃ Step-less setting at 0.1℃--20℃
ID classify No 20 20 30 100
Camera&Video Camera Camera&Video Camera&Video Camera&Video Camera&Video
Video Replay Manual Manual Automatic Automatic Automatic
Model No Yes Yes Yes Yes
Graphic 0 0 100 200 500
Methods Storage Capacity 0 30 30 80 200
Rom Capacity 8GB 16GB 16GB 32GB 128GB
FDA CFR21 part 11 No Yes No Yes Yes
Communication Ports USB×3,RS232,Wi-Fi,RJ45 USB×3,RS232,Wi-Fi,RJ45 USB×3,RS232,Wi-Fi,RJ45 USB×3,RS232,Wi-Fi,RJ45 USB×3,RS232,Wi-Fi,RJ45



Automatic Camera Video Bonnin Melting Point Testing Machine FDA CFR21 0

Automatic Camera Video Bonnin Melting Point Testing Machine FDA CFR21 1Automatic Camera Video Bonnin Melting Point Testing Machine FDA CFR21 2

Automatic Camera Video Bonnin Melting Point Testing Machine FDA CFR21 3

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
