| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | SGW568-533-532-531 |
| Minimum Order Quantity: | 1 set |
| Price: | USD2000-8000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/month |
| Display: | English Touch Screen | Functions: | Automatically Record Optical Rotation, Sugar Degree |
|---|---|---|---|
| Test Range: | ±45°(optical Rotation) ±120°Z(sugar) | Warranty Time: | 12 Months And Life-time Technical Support |
| Highlight: | Bonnin digital automatic polarimeter,SGW568-533-532-531 automatic polarimeter,fully automatic polarimeter |
||

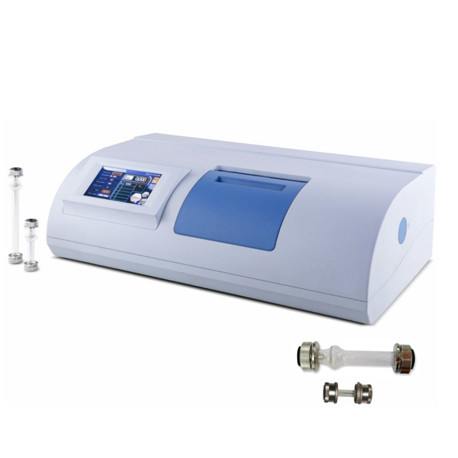

SGW568-533-532-531 High-Speed Automatic Polarimeter
BONNIN WZZ-3 Laboratory Use Automatic Digital Polarimeter
This Polarimeter is a special instrument for measuring the optical rotation of a substance. Polarimeters are widely used in quality control in the food, chemical and pharmaceutical industries. This Polarimeter with automatic photoelectric inspection technology, boasts accurate and reliable measurement, convenient operation and so on. By detecting the optical rotation, the density, content and purity of substances etc. can be analyzed and determined. It’s widely used in medicine, petroleum, food, chemicals, flavors, spices, sugar marking, other industries and universities and research institutes.
This digital polarimeter applies the unique and state-of-art control technology, equipped with high quality prisms. It not only greatly enhances the response speed, measurement time, and minimum transmittance when the polarimeter is testing samples, but also fully embodies the high speed, efficiency and accuracy features, which completely transformed the slow response speed and long measuring time of the traditional polarimeter. It’s a landmark’s breakthrough of polarimeter development in China. In terms of function, the user can customize up to 300 commonly used measurement methods which are pre-stored in the system. With applying the latest IT technology, the instrument can access the Internet.
Technical Data:
| Model | SGW-568 | SGW-533 | SGW-532 | SGW-531 | ||
| Measurement mode | Optical rotation, specific rotation, sugar degree and concentration(Custom) | |||||
| Frequently used methods | 300 | 300 | 30 | 30 | ||
| Light source | Light-emitting diode(LED)(up to 20,000 hours) + precision interference filters | |||||
| Working wavelength | 589.44nm(Sodium D Spectrum) | |||||
| Measurement range | ±90°(Rotation) ±259°Z(Sugar) | |||||
| Minimum reading | 0.0001° | 0.001° | 0.001° | 0.001° | ||
| Accuracy | ±0.003° | ±0.004° | ±0.004° | ±0.006° | ||
| Repeatability | ≤0.002° | ≤0.002° | ≤0.002° | ≤0.002° | ||
| Min. transmission of samples able to be measured | 0.01% | 0.1% | 0.1% | 0.1% | ||
| Response speed | 8°/S | |||||
| Measurement time | 6 times/26s | |||||
| Sample temperature control | Yes | No | ||||
| Control mode | Peltier(Built-in) | No | ||||
| Control range | 10-50℃ | No | ||||
| Control accuracy | ±0.2℃ | No | ||||
| Operation system | WINDOWS | No | No | |||
| Display | 8-inch color dot matrix touch LCD | |||||
| Calibration method | Multi-point automatic calibration | |||||
| Data storage | 16G Database | 10000 sets | 5000 sets | |||
| GMP Regulations | Qualified | |||||
| Output communication interface | USB/Keyboard/Mouse/Universal Printer/VGA/Ethernet/Optical wireless card for wireless internet access | USB/Printer/Ethernet | ||||
| Test tubes | 200mm 100mm(regular) 100mm(temp control) | |||||
| Optional tubes | 50mm(regular) 200mm(temp control) | 50mm(regular) | ||||
| Weight(Gross) | 36kg | |||||
| Dimensions | 860mm 510mm 470mm | |||||
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
