| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | WZZ-2S 2B |
| Minimum Order Quantity: | 1 set |
| Price: | USD2000-5000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/month |
| Display: | English LCD Screen | Functions: | Automatically Record Optical Rotation, Sugar Degree |
|---|---|---|---|
| Test Range: | ±45°(optical Rotation) ±120°Z(sugar) | Warranty Time: | 12 Months And Life-time Technical Support |
| Highlight: | Pharmaceutical Polarimeter,polarimetry in pharmaceutical analysis,WZZ-2S 2B pharmaceutical polarimeter |
||

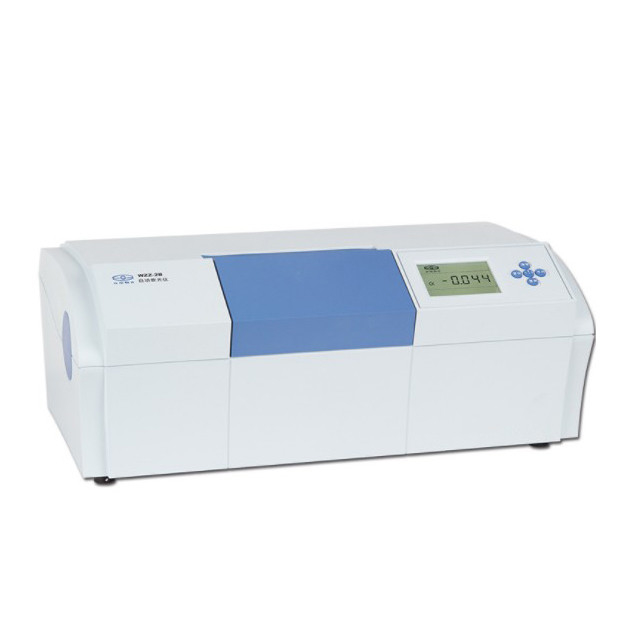

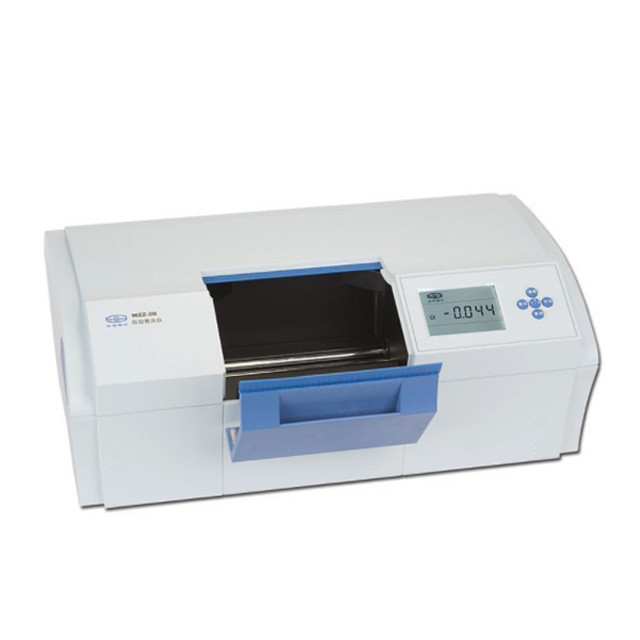

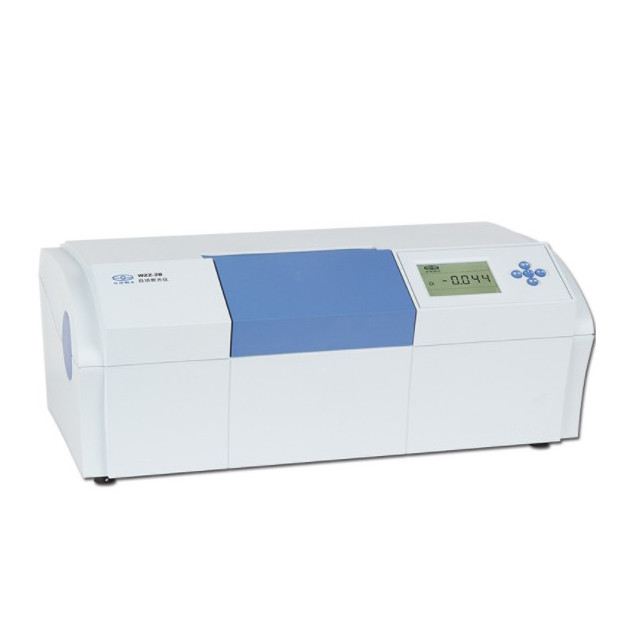

WZZ-2S 2B Fully Automatic Digital Polarimeter Laboratory Pharmaceutical Medicine Analysis
This Polarimeter is a special instrument for measuring the optical rotation of a substance. Polarimeters are widely used in quality control in the food, chemical and pharmaceutical industries. This Polarimeter with automatic photoelectric inspection technology, boasts accurate and reliable measurement, convenient operation and so on. By detecting the optical rotation, the density, content and purity of substances etc. can be analyzed and determined. It’s widely used in medicine, petroleum, food, chemicals, flavors, spices, sugar marking, other industries and universities and research institutes.
Characteristics
Photoelectric test and microcomputer control;
Measuring optical rotation and sugar degree;
Storage of three times results;
Calculation of average values;
Measurement of dark-colored sample;
RS232.
Specifications
| Parameters/Model | WZZ-2S | WZZ-2B |
| Measurement modes: | Optical rotation, sugar degree | Optical rotation |
| Wavelength: | 589.44nm | 589.44nm |
| Light Source: | LED + interference filter | LED + interference filter |
| Measurement range: |
±45°(optical rotation) ±120°Z(sugar) |
±45°(optical rotation) |
| Accuracy: |
±(0.01+measuring value ×0.05%)°(optical rotation) ±(0.03+measuring value ×0.05%)°Z(sugar) |
±(0.01+measuring value ×0.05%)°(optical rotation) |
| Minimum indicating value: |
0.001°(optical rotation) 0.01°Z(sugar) |
0.002°(optical rotation) |
| Repeatability: | ≤0.002° | ≤0.01° |
| sample transmittance: | 1% | 10% |
| Display: | 5-inch LCD | 5-inch LCD |
| Test Tube: | 100mm/200mm (regular) | 100mm/200mm (regular) |
| Interface: | Optional printer | RS232 |
| Weight (Gross): | 33kg | 33kg |
| Overall Dimensions: | 730mm 480mm 470mm | 730mm 480mm 470mm |
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
