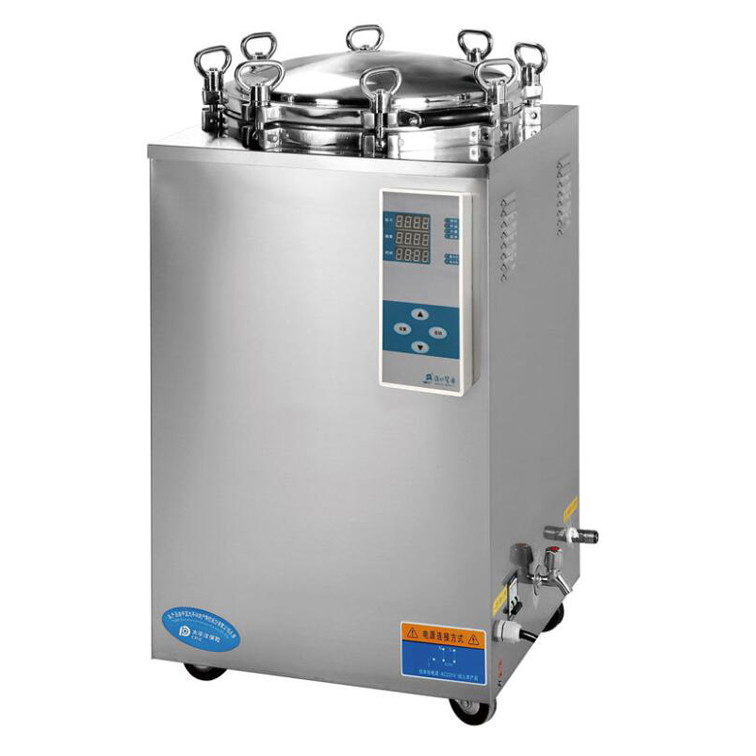

LS-LD Vertical High Pressure Steam Sterilizer Autoclave 75L PCR Test Instruments

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: LS-LD Series
Minimum Order Quantity: 1 set
Price: USD500-2200/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Effective Volume Of Sterilization Chamber: 35L/50L/75L/100L Fixed Work Stress: 0.22Mpa
Rated Operating Temperature: 134℃ Power: 1 X 2.5KW/AC220V 50HZ
High Light:

LS-LD vertical autoclave sterilizer

,

vertical high pressure steam sterilizer autoclave

,

75L vertical pressure steam sterilizer

LS-LD Automatic Vertical Pressure Steam Autoclave, Vertical Pressure Steam Sterilizer



The vertical pressure steam sterilizers are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effect.

The vertical pressure steam sterilizers are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

Characteristics



Technical Data

MODEL LS-35LD LS-50LD LS-75LD LS-100LD LS-120LD LS-150LD
Technical Data
Chamber volume 35Lφ318×450mm 50Lφ340×550mm 75Lφ400×600mm 100Lφ440×650mm 120Lφ480×660mm 150Lφ510×740mm
Working pressure 0.22Mpa
Working temperature 134℃
Max.working pressure 0.23Mpa
Heat average ≤±1℃
Timer range 0-99min/0-99hour59min
Temperature adjust range 105-134℃
Power 2.5KW/AC220V 50HZ 3KW/AC220V 50HZ 4.5KW/AC220V 50HZ 7KW/AC220V 50HZ
Overall dimension(mm) 480×460×850 520×520×980 560×560×980 590×590×1080 600×640×1140 670×69×1130
Transport dimension(mm) 570×550×970 590×590×1110 650×630×1150 680×650×1220 730×730×1270 760×760×1270
G.W/N.W 56Kg/42Kg 68Kg/50Kg 90Kg/70Kg 105Kg/85Kg 125Kg/100Kg 135Kg/105Kg



LS-LD Vertical High Pressure Steam Sterilizer Autoclave 75L PCR Test Instruments 0LS-LD Vertical High Pressure Steam Sterilizer Autoclave 75L PCR Test Instruments 1

LS-LD Vertical High Pressure Steam Sterilizer Autoclave 75L PCR Test Instruments 2

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
