OEM Ultra HPLC High Performance Liquid Chromatography System LCD Screen

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: ISO, CE
Model Number: EX-1700 EX-1800
Minimum Order Quantity: 1 set
Price: USD15000-32800/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Pump Type: Parallel Pump Great Work Pressure: 42Mpa
Flow Setting Range: 0.001~9.999mL/min Display: English LCD Screen, PC Control
Highlight:

OEM high performance liquid chromatography system

,

hplc ion chromatography durable

,

LCD Liquid Chromatography System

EX-1700 EX-1800 Ultra HPLC Laboratory High Performance Liquid Chromatography System



EX1800 ultra high performance liquid chromatograph, the system pressure increased from the original 69MPa to 90MPa (ultra high pressure). At the same time the system adds a solvent manager and flow control system. The system can be used in series or in parallel, fully automatic online solid phase extraction, two-dimensional or multi-dimensional chromatographic analysis.

Compared with conventional HPLC in the past, EX1800 is more integral in appearance. The simple and reasonable layout makes the operator more handy.

In terms of product appearance, performance indicators, stability and user experience, all parties are facing foreign advanced instruments.

It also supports conventional liquid chromatography (HPLC) and ultra high performance liquid chromatography (UHPLC), and can expand two-dimensional or multi-dimensional chromatographic analysis.

Multiple detector configurations, multiple expansion interfaces and application combinations.

Digital, Networked, Intelligent, Automatic
has a pressure range of 9000Psi and can handle 1.8-2.0 μm HPLC columns. It provides better separation, higher resolution, and faster analysis than conventional HPLCs. Actual analysis time can be reduced to 1/8-1/10 that of a conventional HPLC. EX1700 offers superior lab solutions for fast super-efficient analysis, while greatly lowering operation costs. Whether it’s about efficiency, precision, or overall costs, EX1700 has the absolute advantage over international HPLC products which run under normal pressures.

Compared with the conventional HPLC products of world-renowned brands, the EX1700 speedy HPLC offers better separation ability and peak symmetry, as well as more stable baseline and higher resolution. It also greatly reduces analysis times and costs while minimizing environmental impact. The EX1700 makes it possible to analyze hundreds of samples in just one day!

EX1700DP Ultra-high Precision Infusion System

1. High pressure stable constant-flow pump
2. High efficiency small-sized mixer

Model EX1700DP infusion unit
Liquid Infusion System Double parallel reciprocating infusion pumps equipped with binary high-pressure mixer
Flow Range 0.001-5.000 ml/min
Maximum Output Pressure 60MPa (0.001-2.500 ml/min)
Flow Set Value Error SS ≤ ±1% (water, 20°C, 1 ml/min, 10 MPa)
SS ≤ ±2% (water, 20°C, 1 ml/min, 40 MPa)
Flow Stability Error SR ≤ 0.3% (1 ml/min) (10 MPa)
GLP Function Providing pressure curve and flow curve, recording using frequency of piston seals


EX1700UV Highly Sensitive UV Detector

1. Low noise, low drift, and high sensitivity
2. Optional devices are available based on user’s needs including a micro-flow evaporative light-scattering etector and differential refractive index detector.

Model EX1700 UV detector
Light Source D2 lamp
Wavelength Range 190-700nm
Spectrum Bandwidth 4 nm
Flow Cell Volume 1.6μL (optical path length of 5mm)
Noise 4 × 10 -5 AU* (dynamic, specified test conditions)
Drift 5 × 10 -4 AU/h* (dynamic, specified test conditions)
Wavelength Accuracy ± 1 nm
Wavelength Precision < 0.1 nm
Response Time 0.02, 0.1, 0.2, 0.5, 1, 2 6,adjustable
Sampling Rate 50 sps (50 times per second)
Minimum Full Width at Half Maxima < 0.5 sec
GLP Function Recording spectral energy and D2 lamp burn time

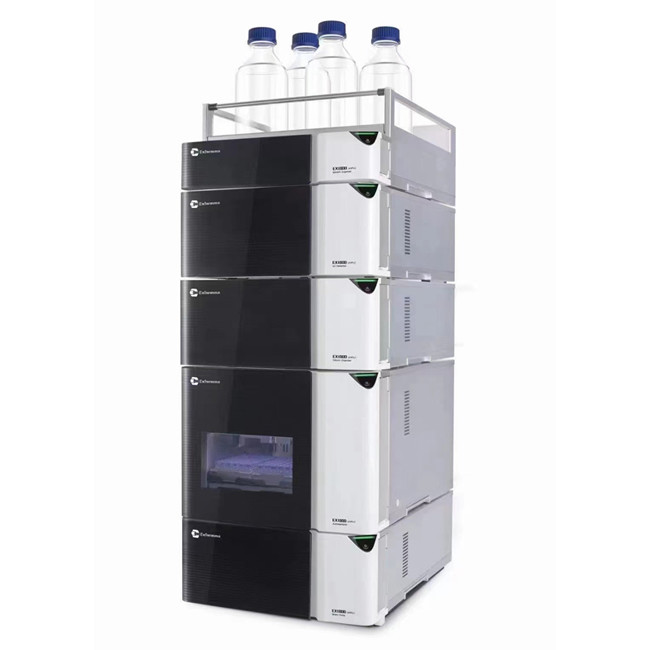

OEM Ultra HPLC High Performance Liquid Chromatography System LCD Screen 0OEM Ultra HPLC High Performance Liquid Chromatography System LCD Screen 1

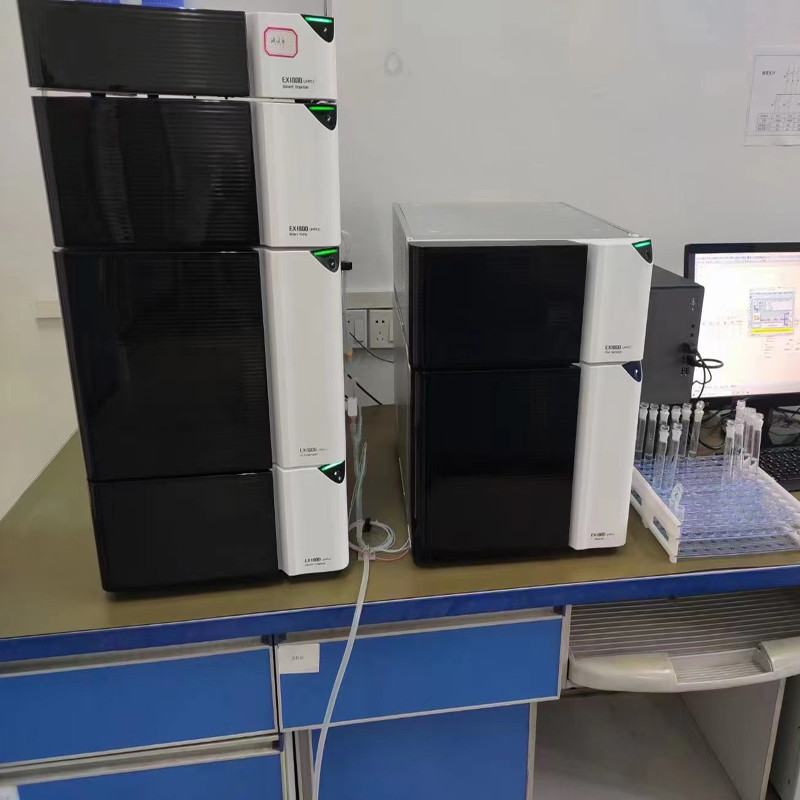

OEM Ultra HPLC High Performance Liquid Chromatography System LCD Screen 2

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
