SYD-0165A Laboratory Distillation Apparatus Vacuum Petroleum Distillation Tester LCD

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: SYD-0165A
Minimum Order Quantity: 1 set
Price: USD52000-6800/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Heating Furnace Of Distillation Flask: (0~1300)W, Continuously Adjustable Capacity Of Buffer Vessel: 1000ml
Temperature Control Point Of Air Bath Of Receiver: Ambient To 100℃ Display: English LCD Screen
High Light:

SYD-0165A Laboratory Distillation Apparatus


Vacuum Distillation Tester LCD


Petroleum distillation tester

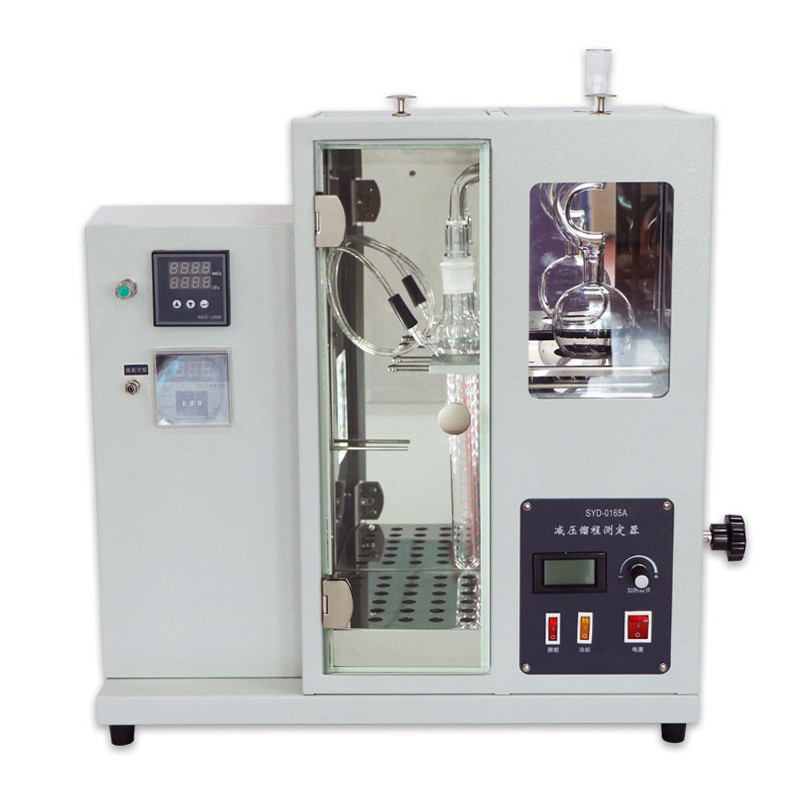

SYD-0165A Laboratory Distillation Apparatus Petroleum Vacuum Distillation Tester


This instrument is designed and made as per industrial standard SH/T 0165-92 Standard Test Method for Distillation Characteristics of Petroleum Products with High Boiling Point Range by Vacuum Process. It is suitable to determine the distillation characteristics of wax oil, lubricating oils and other petroleum products with high boiling point range.

I.Main technical features
This instrument adopts single chip microcomputer technology, can automatically control the vacuum pressure.

II. Main technical specifications
1. Power supply:AC(220±10%)V, 50Hz
2. Heating power:Heater for distillation flask:1300W,Heater for receiver:350W
3. Heating furnace of distillation flask:(0~1300)W, continuously adjustable
4. Temperature control point of air bath of receiver:Ambient to 100℃, continuously adjustable
5. Temperature sensor of air bath:Pt100,RTD
6. Temperature control mode:Digital temperature controller
7. Temperature control precision:Set temp.±1℃
8. Capacity of buffer vessel:1000ml
9. Max. residual pressure:2mmHg
10. Digital pressure gauge:(0~200)mmHg
11. Illumination light in the air bath :Energy saving lamp
12. Working condition:Ambient temp.:(15~35)℃ RH:< 85%
13. Dimension:600mm×250mm×650mm

SYD-0165A Laboratory Distillation Apparatus Vacuum Petroleum Distillation Tester LCD 0SYD-0165A Laboratory Distillation Apparatus Vacuum Petroleum Distillation Tester LCD 1

SYD-0165A Laboratory Distillation Apparatus Vacuum Petroleum Distillation Tester LCD 2

FAQ 1. Are you a factory or trading company?

We are a factory.


FAQ 2. Can you supply OEM?

OEM is available.


FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.


FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.


FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.


FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.


FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
