| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | SYD-0165B |
| Minimum Order Quantity: | 1 set |
| Price: | USD5000-6800/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Nucleic Acid Range: | 1~750 Ng/μl, DsDNA | Protein Measurement Range: | 0.1~40 Mg/ml, BSA |
|---|---|---|---|
| Light Path: | 1mm | Sample Volume: | 1~2μL |
| Display: | English Touch Screen | ||
| High Light: | SYD-0165B Oil Distillation Equipment,Petroleum Vacuum Distillation Tester,Semi auto Oil Distillation Equipment |
||

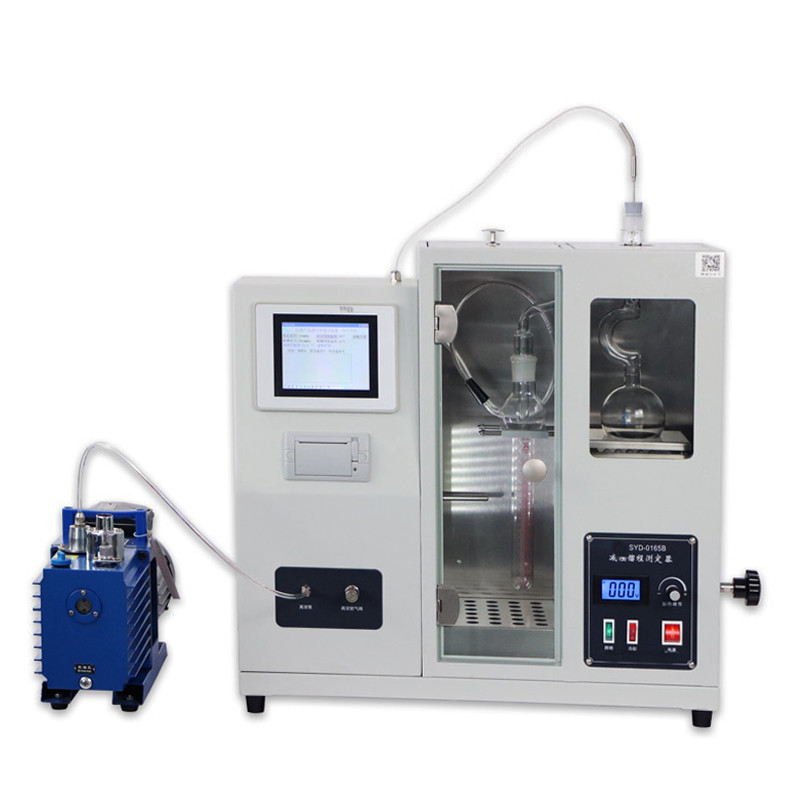

SYD-0165B Oil Distillation Equipment Petroleum Semi-automatic Vacuum Distillation Tester
SYD-0165B Oil Distillation Equipment Petroleum Semi-automatic Vacuum Distillation Tester is designed and made as per industrial standard SH/T 0165-92 Standard Test Method for Distillation Characteristics of Petroleum Products with High Boiling Point Range by Vacuum Process.It is suitable to determine the distillation characteristics of wax oil, lubricating oils and other petroleum products with high boiling point range.
I. Main technical features
1. It adopts single-chip machine technology to control the vacuum pressure automatically.
2. It adopts high accuracy temperature sensor to detect the steam temperature automatically. No need to observe it by naked eye.
3. It adopts LCD technology, can input, modify and show parameters and control them by touch screen.
4. It equips a micro-printer to save and print test results.
II. Main technical specifications
1. Power supply: AC(220±10%)V , 50Hz.
2. Heating furnace of distillation flask: (0～1300)W, adjustable
3. Heating power of receiver: 350W,automatically controlled.
4. Temperature control point of receiver: Ambient to 99℃±3℃,adjustable.
5. Setting range of vacuum residual pressure: (2～99) mmHg±0.1mmHg.
6. Measurement range of vacuum residual pressure:
(2～150) mmHg±0.1mmHg, automatic pressure maintenance
7. Volume of buffer vessel: 1000ml
8. Illumination light in the air bath :Energy saving lamp
9. Working condition: Ambient temp.:(5～35)℃ RH:< 85％
10. Dimension: 600mm×230mm×605mm
III. Optional accessories
1.Vacuum calibration table
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
