2KW Petroleum Distillation Testing Equipment ASTM D86 Lab Distillation Tester

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: SYD-6536
Minimum Order Quantity: 1 set
Price: USD5000-6800/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Nucleic Acid Range: 1~750 Ng/μl, DsDNA Protein Measurement Range: 0.1~40 Mg/ml, BSA
Light Path: 1mm Sample Volume: 1~2μL
Display: English Touch Screen
High Light:

ASTM D86 automatic Distillation Tester

,

2KW Petroleum Testing Equipment

,

2000W Petroleum Distillation Testing Equipment

Petroleum Distillation Testing Equipment ASTM D86 Lab Distillation Tester



Petroleum Distillation Testing Equipment is designed and made as per standards GB/T6536 Test Method for Distillation Characteristics of Petroleum Products and ASTM D86 Standard Test Method for Distillation of Petroleum Products at Atmospheric Pressure. It is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, and solvent having special boiling point, naphtha, diesel oil, distillate fuels and similar petroleum products.

Technical features
1. It adopts a special heating furnace to ensure the safety. The heating power can be adjusted continuously.
2. The rising up and lowering down of distillation flask can be adjusted free by lifting device.Flexible and convenient to operate.
3. The condensing tube water bath has the function of temperature control, which can be set and adjusted in the range of (room temperature + 10) ℃~ 60 ℃. The temperature in the bath is uniform and meets the requirements of the test.

Technical specifications
1. Power supply: AC(220±10%)V, 50Hz
2. Total power consumption: ≤2000W;
3. Receiving cylinder: 100ml,scale division 1ml
4. Distillation flask: 125mL. It can meet requirements GB/T 6536 and ASTM D86
5. Water bath’ temperature controlling:
(1) Range:(ambient temp.+10)℃~60℃
(2) Accuracy:±0.5℃
6. Ambient temperature:15℃~35℃ Relative humidity: ≤85%
7. Dimension:460mm×400mm×550mm
8. Net weight:18.5kg

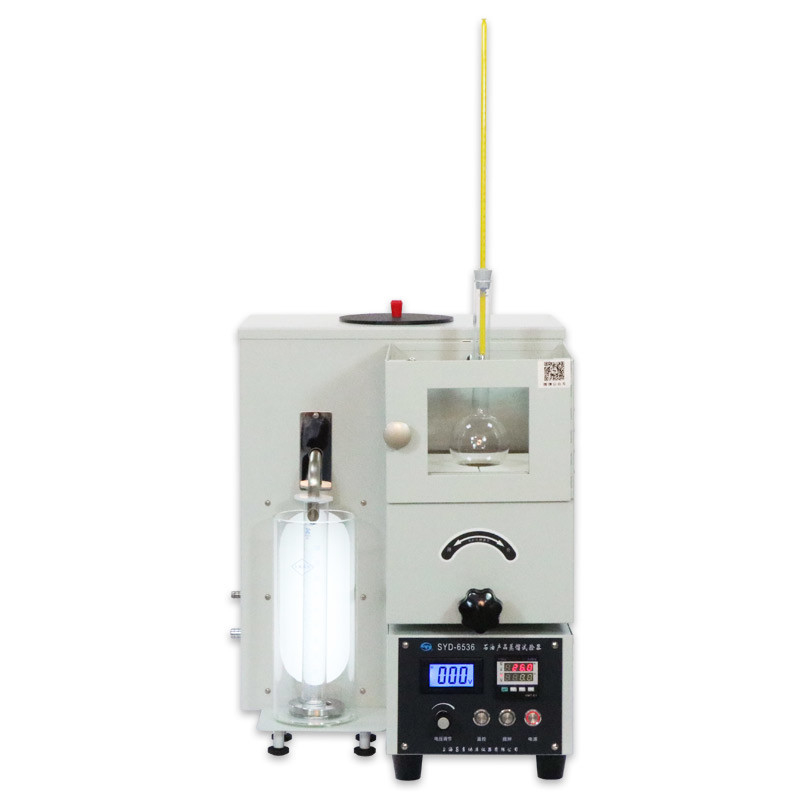

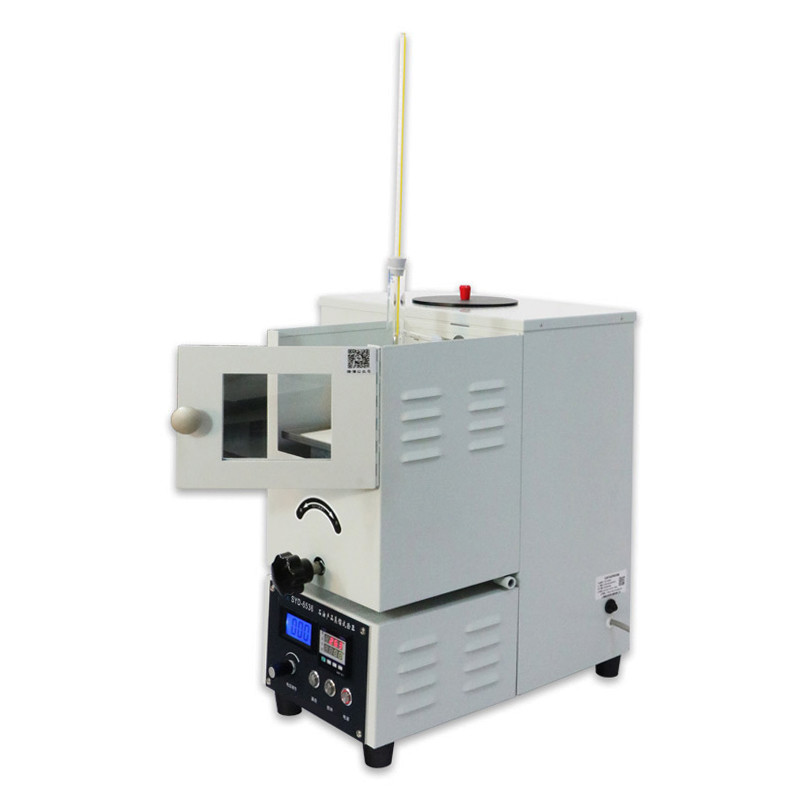

2KW Petroleum Distillation Testing Equipment ASTM D86 Lab Distillation Tester 02KW Petroleum Distillation Testing Equipment ASTM D86 Lab Distillation Tester 1

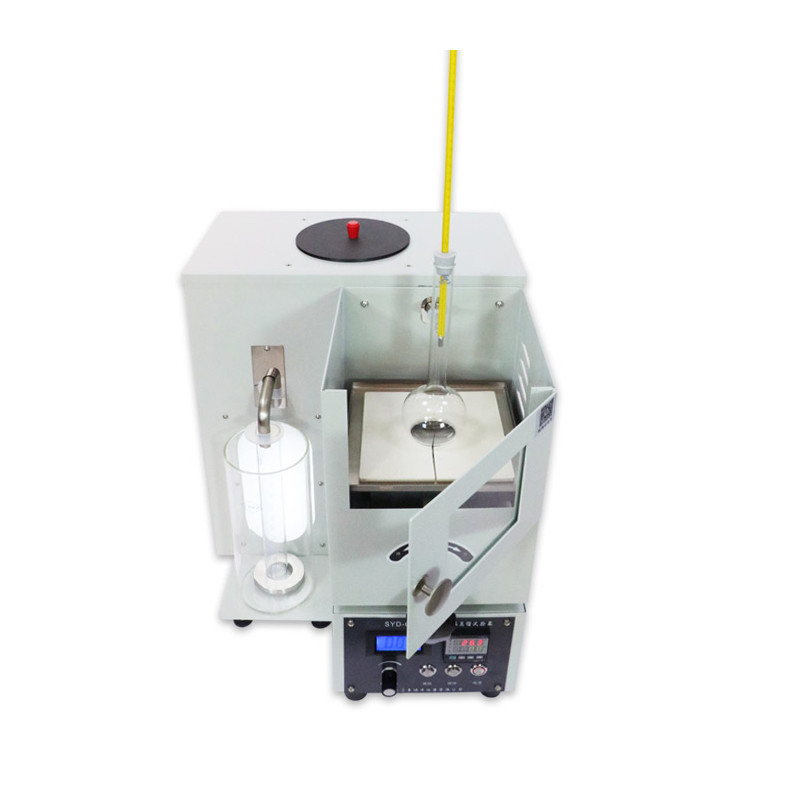

2KW Petroleum Distillation Testing Equipment ASTM D86 Lab Distillation Tester 2

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
