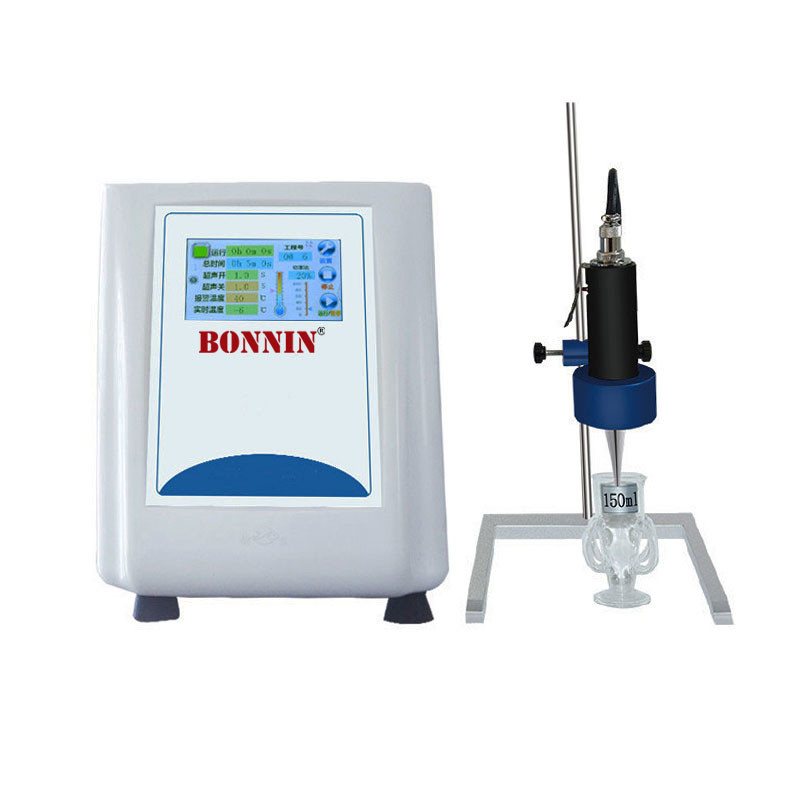

Laboratory Portable Ultrasonic Homogenizer Cell Disruptor Sonicator 20KHz To 30KHz

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: UH Series
Minimum Order Quantity: 1 set
Price: USD500-1800/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Temp Control Range: 0-100C(Can Be Customized) Ultrasonic Setting Time: 0.1-99.9S
Single Stop Time: 1-99H59M59S Frequency Range: 20-30KHz
Display: English Touch Screen
High Light:

Portable Ultrasonic Homogenizer


30KHz ultrasonic cell disruptor


20KHz laboratory ultrasonic sonicator

Portable Ultrasonic Homogenizer Laboratory Ultrasonic Sonicator Cell Disruptor Mixer



Ultrasonic Homogenizer is a kind of multi-functional and multi-purpose instrument which uses strong ultrasound to produce cavitation effect in liquid and to deal with substances. It can be used to break up many kinds of animal and plant cells and virus cells. It can also be used for emulsification, separation, extraction, defoaming, degassing, cleaning and accelerating chemical reactions.

The instrument with LCD Screen, with automatic and manual (use foot) working modes, ultrasonic time, power stability, sample temperature detection display, frequency automatic tracking and other functions, suitable for small volume samples.



It can be used for 96-hole enzyme labeling and countless small tube arrangement, hand-held ultrasonic device to control ultrasound, so that countless samples in a short time to complete ultrasonic treatment.


Technical Specification

Model UH-250 UH-400
Frequency range 2.5-250W Continous adjustable 4-400W Continous adjustable
Mixing capacity 0.1-150ml(With optional probe) 0.1-300ML(With optional probe)
Optional probe Φ2,3,5,6(mm) Φ2,3,5,6,8(mm)
Ultrasonic setting time 0.1-99.9S
Single stop time 1-99H59M59S
Frequency range 20-30KHz
Temp control range 0-100C(Can be customized)
Alarm Functions Time, temp, overload ,no-load ,over tem
Probe(standard) Φ3 or Φ5(mm) Φ5 or Φ6(mm)
Display Mode Touch screen
Data storage 20sets
Power(optional110V) 220V/110V/ 50Hz/60HZ
Exterior Dimension 410*225*290(mm)
Optional function Computer + data printing function+ soundproof cabinet Lighting and sterilization
Control Mode Single chip microcomputer + TFT touch control
Voice alarm and prompt function Yes

Laboratory Portable Ultrasonic Homogenizer Cell Disruptor Sonicator 20KHz To 30KHz 0Laboratory Portable Ultrasonic Homogenizer Cell Disruptor Sonicator 20KHz To 30KHz 1

Laboratory Portable Ultrasonic Homogenizer Cell Disruptor Sonicator 20KHz To 30KHz 2

FAQ 1. Are you a factory or trading company?

We are a factory.


FAQ 2. Can you supply OEM?

OEM is available.


FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.


FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.


FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.


FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.


FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
