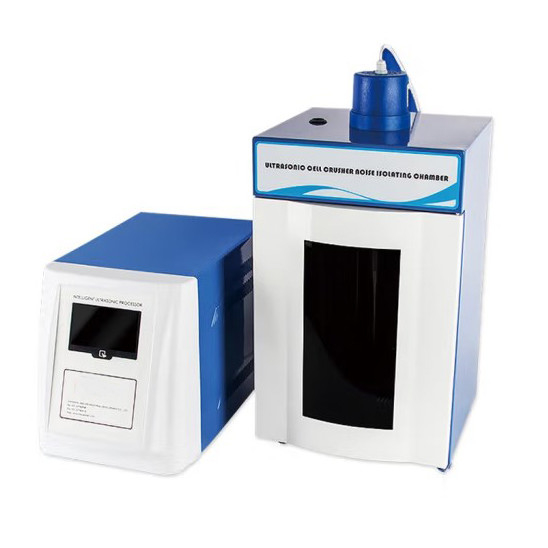

Multifunction ISO Laboratory Ultrasonic Homogenizer Sonicator Cell Disruptor 7 Inch

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: JY92-IIDN JY96-IIDN
Minimum Order Quantity: 1 set
Price: USD2000-6800/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Data Storage Function: 20 Sets Datas Display: English Touch Screen
High Light:

multifunction Ultrasonic Homogenizer

,

ISO laboratory ultrasonic sonicator

,

sonicator cell disruptor 7 inch

JY92-IIDN JY96-IIDN Laboratory Ultrasonic Sonicator, Lab Ultrasonic Homogenizer



Application

Ultrasonic Homogenizer is a kind of multi-functional and multi-purpose instrument which uses strong ultrasound to produce cavitation effect in liquid and to deal with substances. It can be used to break up many kinds of animal and plant cells and virus cells. It can also be used for emulsification, separation, extraction, defoaming, degassing, cleaning and accelerating chemical reactions.

Application area

It is widely used in teaching of research and production in the fields of biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology, agronomy, and pharmaceuticals.

Features

Models for Small Volume

Model JY96-IIN JY88-IIN JY92-IIN JY92-IIDN
Power 1.5-150W Continuous 2.5-250W Continuous 10-650W Continuous 10-900W Continuous
Mixing capacity 0.1-150ml ( with optional probe) 0.1-300ml (with optional probe) 0.1-500ml (with optional probe) 0.1-600ml (with optional probe)
Optional probe Φ2,3,8(mm) Φ2,3,8,10(mm) Φ2,3,10,12(mm) Φ2,3,10,12,15(mm)
Ultrasonic setting time 0.1-99.9S
Single stop time 0.1-99.9S
Total time setting 1-99H59M59S
Frequency range 20-25KHz
Temp control range 0-100C(Can be customized)
Alarm Functions Time, temp, overload ,no-load Time, temp, overload ,no-load , over temp
Probe(standard) Φ6(mm)
Display Mode Display Mode
Data storage 20sets
Power(optional110V) 220V/110V/ 50Hz/60HZ
Exterior Dimension 410*225*290(mm)
Optional function Computer + data printing function+ soundproof cabinet Lighting and sterilization
Control Mode Single chip microcomputer + TFT touch control
Voice alarm and prompt function Yes

Models for Large Volume

Model HX-IID JY98-IIIDN JY99-IIDN
Power 10-1000WContinuous 20-1200WContinuous 50-1800WContinuous
Mixing capacity 0.1-750ml(with optional probe) 1-1000ml(with optional probe) 1-1200ml(with optional probe)
Optional probe Φ2,3,8,10,12,15(mm) Φ3,6,10,15,22,25(mm) Φ3,6,10,15,20,25,28(mm)
Ultrasonic setting time 0.1-99.9S
Single stop time 0.1-99.9S
Total time setting 1-99H59M59S
Frequency range 19.5-20.5KHz
Temp control range 0-100C(Can be customized)
Alarm Functions Time, temp, overload ,no-load ,over temp
Probe(standard) Φ6(mm) Φ20(mm) Φ22(mm)
Display Mode Touch screen
Data storage 20sets
Power(optional110V) 220V/110V/ 50Hz/60HZ
Exterior Dimension 410*225*290(mm)
Optional function Computer + data printing function+ soundproof cabinet Lighting and sterilization
Control Mode Single chip microcomputer + TFT touch control
Voice alarm and prompt function Yes


Multifunction ISO Laboratory Ultrasonic Homogenizer Sonicator Cell Disruptor 7 Inch 0Multifunction ISO Laboratory Ultrasonic Homogenizer Sonicator Cell Disruptor 7 Inch 1

Multifunction ISO Laboratory Ultrasonic Homogenizer Sonicator Cell Disruptor 7 Inch 2

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
