Durable Lab Spectrophotometer FTIR Fourier Transform Infrared Spectroscopy OEM

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: FTIR-530
Minimum Order Quantity: 1 set
Price: USD15000-28800/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Product Name: FTIR Fourier Transform Infrared Spectrometer Wavelength Range: 7800 ~ 375 Cm-1
Resolution: 0.85 Cm-1 Display: PC Software Controlled
High Light:

AC110V Lab Spectrophotometer

,

durable FTIR spectrophotometers

,

ftir fourier transform infrared spectroscopy OEM

FTIR-530 FTIR-650 FTIR Spectroscopy Fourier Transform Infrared Spectrophotometer FTIR Machine



FTIR-530 Fourier Transform Infrared Spectrometer Based on more than thirty years experience in FTIR R&D and manufacturing, we has launched a new type FTIR Spectrometer FTIR-530 with fully independent intellectual property rights. Adhering to consistent excellent quality and superior performance, the new model obtains the best balance between intelligence and convenient operation, advance performance and low operation and maintenance cost. It is a good choice for basic science research analysis, production quality control,testing and detection in various fields.



u High sensitivity and stability

u Intelligent real-time monitoring of instrument status

u Multiple communication options

u Flexible and convenient testing

u Powerful software workstation





Features

l High sensitivity optical system: cube-corner Michelson interferometer combined with patented fixing mirror alignment technology(fixing mirror alignment assembly),to ensure long term stability, without the need of dynamic alignment which needs extra complicated electronic circuits. Reflecting mirrors are coated with gold to provide the maximum light throughput and ensure the detection sensitivity.

l High stability modular partition design: compact structure modular design with layout on cast aluminum base and overall balance of mechanical robustness and partition heat dissipation, offering higher ability of deformation resistance and less sensitive to vibrations and thermal variations, greatly improves the mechanical stability and long term working stability of the instrument.

l Intelligent multi-sealed moisture-proof design: multiple sealed interferometer, large-capacity desiccant cartridge with visible window and easy replacement structure, real-time monitoring of temperature and humidity inside the interferometer, getting rid of influences of high temperature, high humidity and chemical corrosions to the optical system in many ways.

l Innovated integration electronic system: high sensitivity integrated DLATGS detector pre-amplifier technology, dynamic gain amplification technology, high precision 24-bit A/D conversion technology, real-time control and data processing technology, digital filter and network communication technology, ensuring high quality real-time data collection and high-speed transmission.

l Good anti-electromagnetic interference capability: The electronic system is designed to meet CE certification and electromagnetic compatibility requirements, minimizing electromagnetic radiation in design and technology,in line with green instrument designing concept.

l High intensity IR source assembly: High intensity, long lifetime IR source module, with the highest energy distributed in fingerprint region, adopts a reflex sphere design to obtain even and stable IR radiation. External isolated IR source module and large space heat dissipation chamber design provide higher thermal stability and stable optical interference.

l The sampling compartment, reserving accessory mounting holes on the base plate, is wide enough for various accessories such as Defused/Specular Reflection, ATR, Liquid cell, Gas cell, and IR microscope etc.



Specifications:

Interferometer Cube-corner Michelson interferometer
Beam splitter Multilayer Ge coated KBr
Detector Room temperature DLATGS module (standard) Temperature stabilized, high sensitivity DLATGS module (optional)
IR Source High intensity, long lifetime, air-cooled IR source
Wavenumber Range 7800cm-1~350cm-1
Resolution 0.85 cm-1
Signal to noise ratio Better than 20,000:1 (RMS value, at 2100cm-1 ~ 2000cm-1 or 2100cm-1 ~ 2200cm-1, resolution: 4cm-1, detector: DLATGS, 1 minute data collection)
Wavenumber Accuracy ±0.01 cm-1
Scanning Speed Microprocessor control, different scanning speed selectable.
Software Main FTOS Suite software workstation, compatible to all version Windows OS Various specialized functional software modules (optional)
Communication Ethernet interface (standard) WIFI wireless communication (optional)
Data Output Standard data format, report generation and output
Status Diagnosis Power on self check, real-time temperature and humidity monitoring and reminders
Certification   F-D-A 21 CFR Part11 compliance,IQ/OQ/PQ(Optional)
Environment Conditions

Temperature: 10℃~30℃,

humidity: less than 70%


Power Supply AC220V±22V,50Hz±1Hz AC110V(optional)
Dimensions & Weight 520 x 435 x 255mm, 24kg
Accessories Transmission sample holder (Standard) Optional accessories such as gas cell, liquid cell, Defused/Specular Reflection, single/multi reflection ATR, etc.

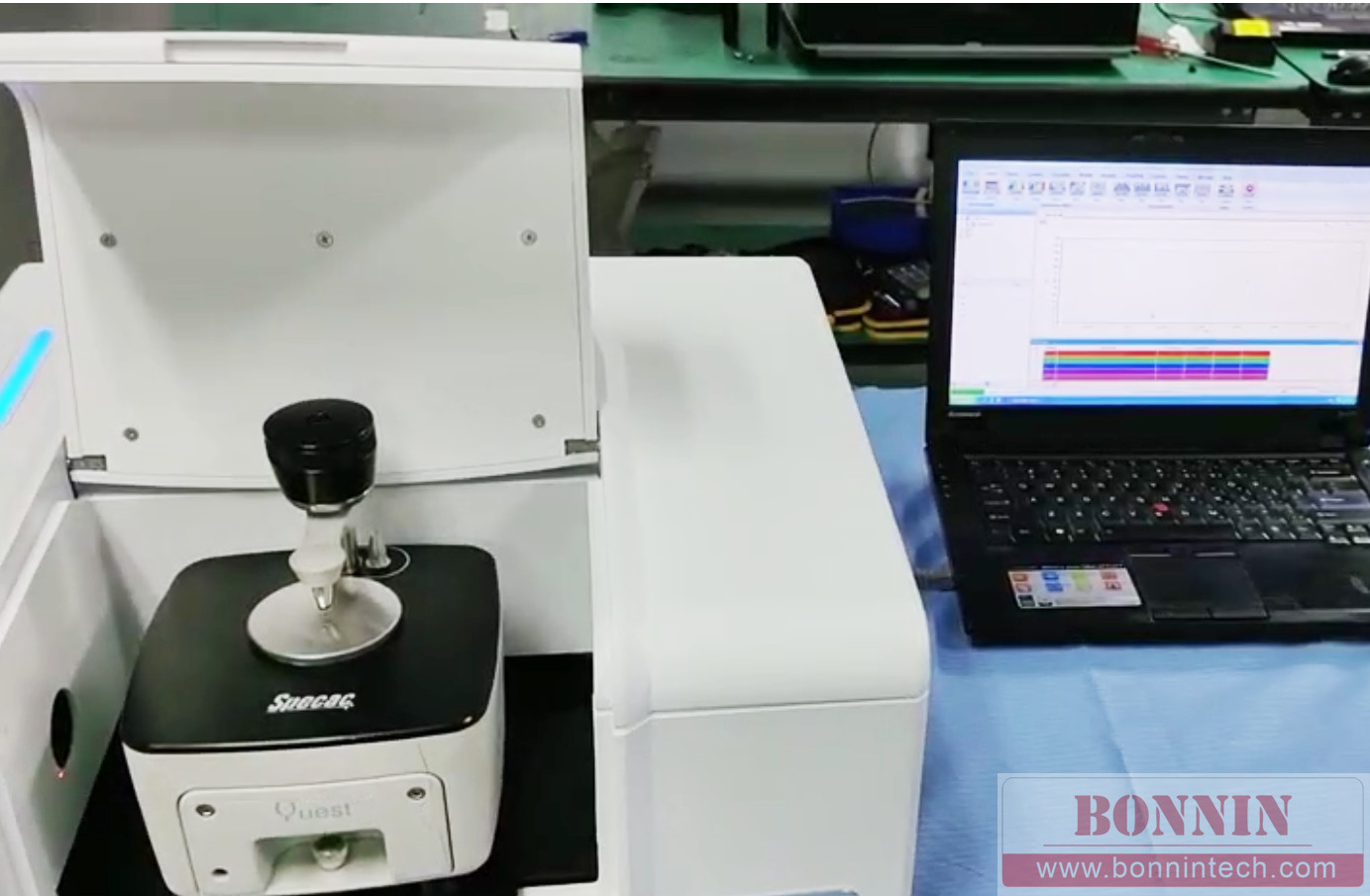

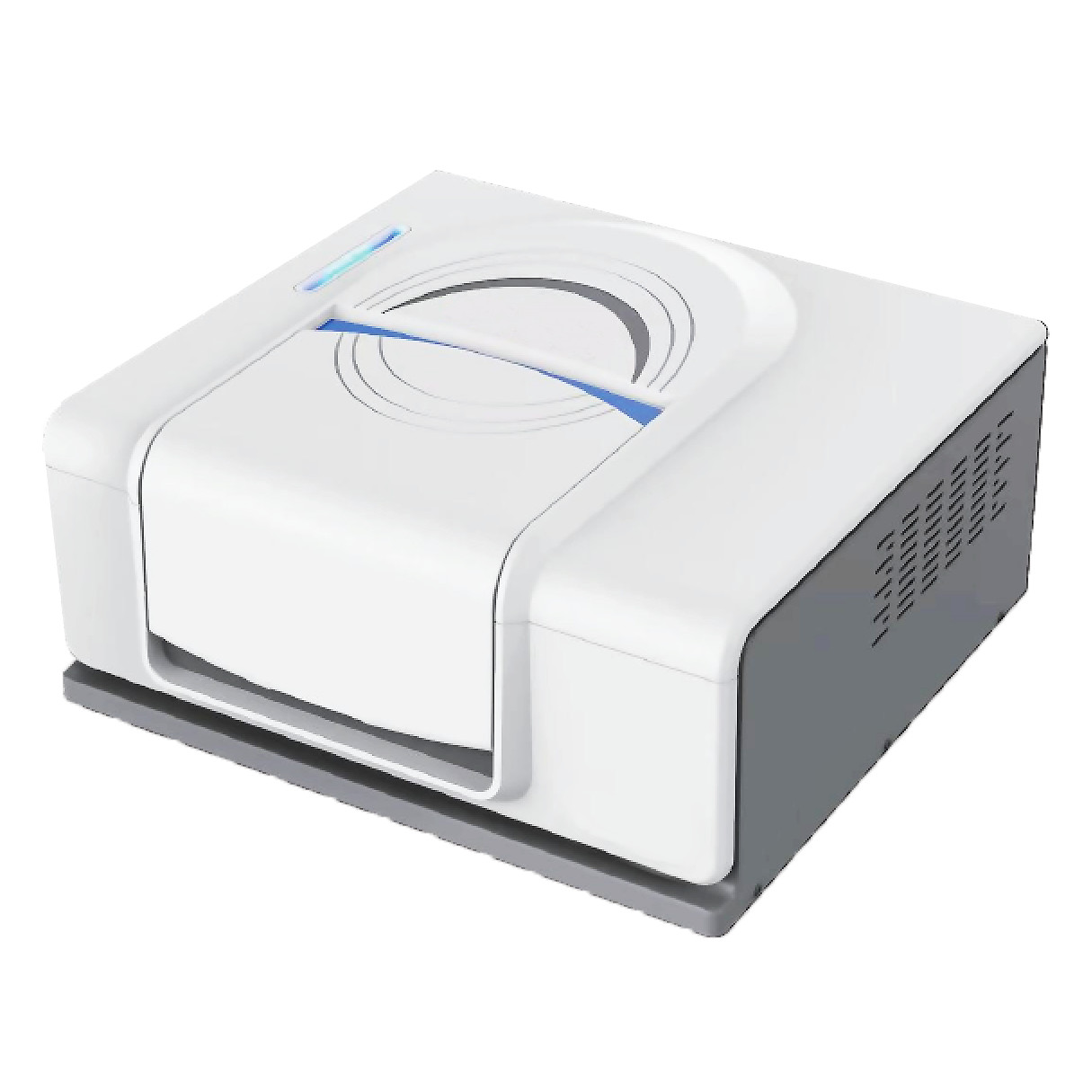

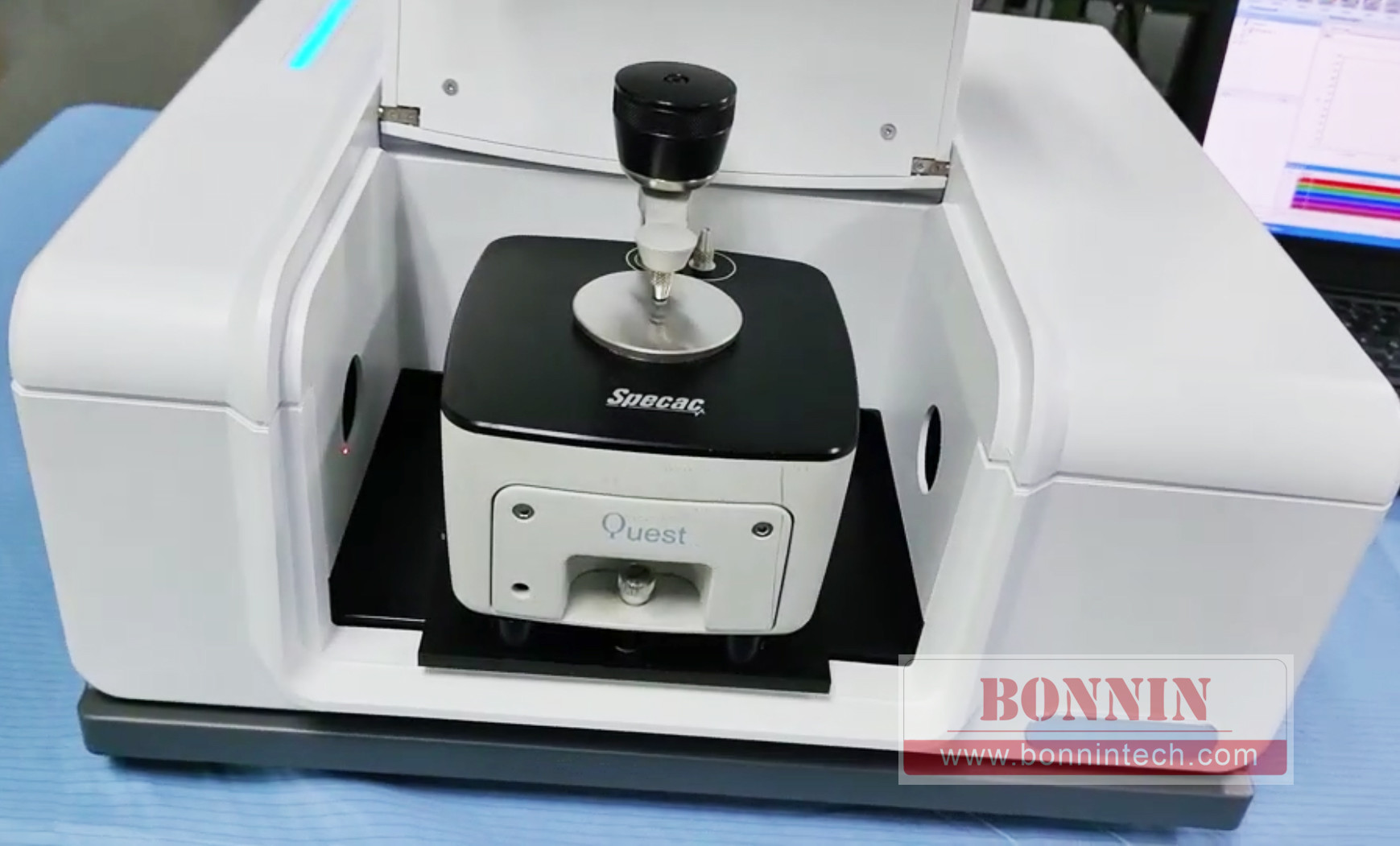

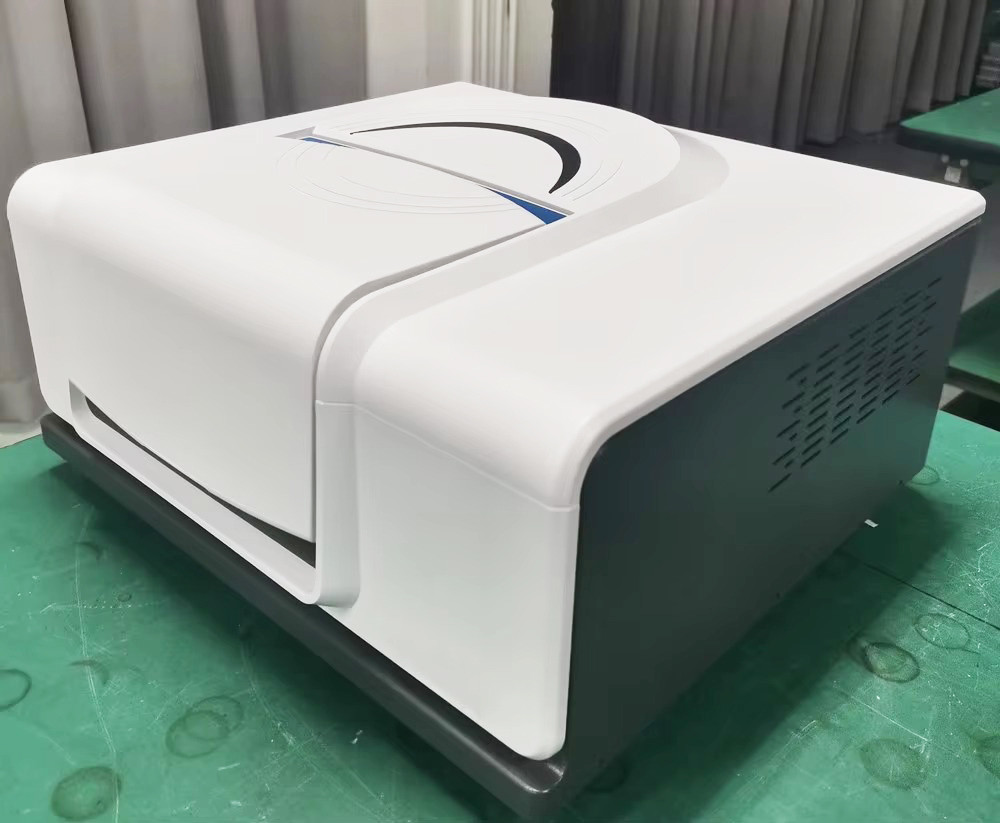

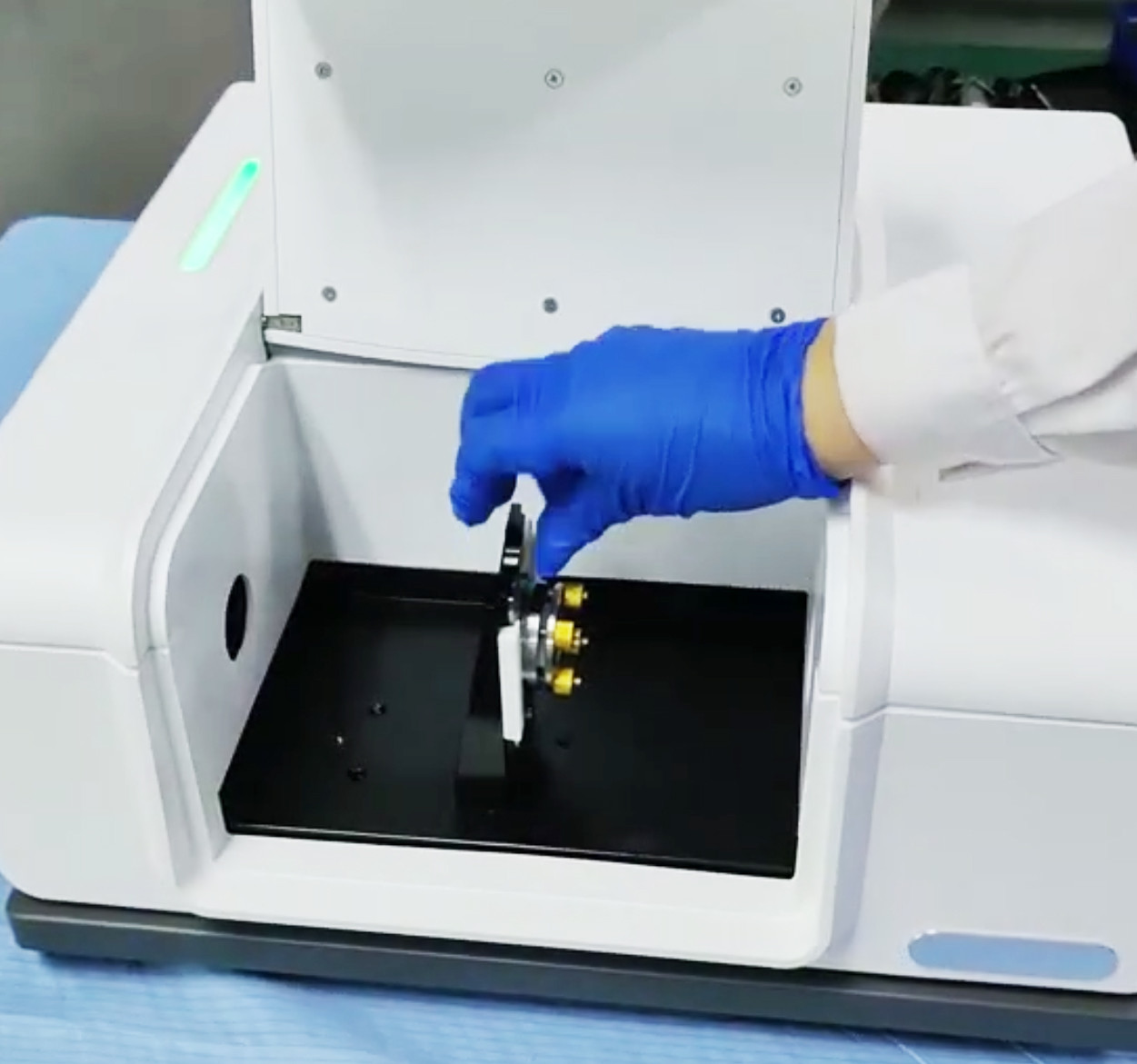

Durable Lab Spectrophotometer FTIR Fourier Transform Infrared Spectroscopy OEM 0



Durable Lab Spectrophotometer FTIR Fourier Transform Infrared Spectroscopy OEM 1Durable Lab Spectrophotometer FTIR Fourier Transform Infrared Spectroscopy OEM 2

Durable Lab Spectrophotometer FTIR Fourier Transform Infrared Spectroscopy OEM 3

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
