Bonnin USB2.0 60Hz Double Beam UV Spectrophotometer In Medical Laboratory

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: BN-F97
Minimum Order Quantity: 1 set
Price: USD8000-15800/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Wavelength Scan Speed Multi-speed Level: Maximum At 48000nm/min F97XP/F97Pro: 2nm、5nm、10nm、20nm
Excitation Wavelength: 200nm~900nm Display: PC Software Controlled
High Light:

60Hz double beam uv spectrophotometer


Bonnin uv vis spectroscopy lab


USB2.0 spectrophotometer in medical laboratory

Wide Spectrum Fluorescence Spectrophotometer Pharmaceutical Biochemical Clinical Testing Spectrophotometer

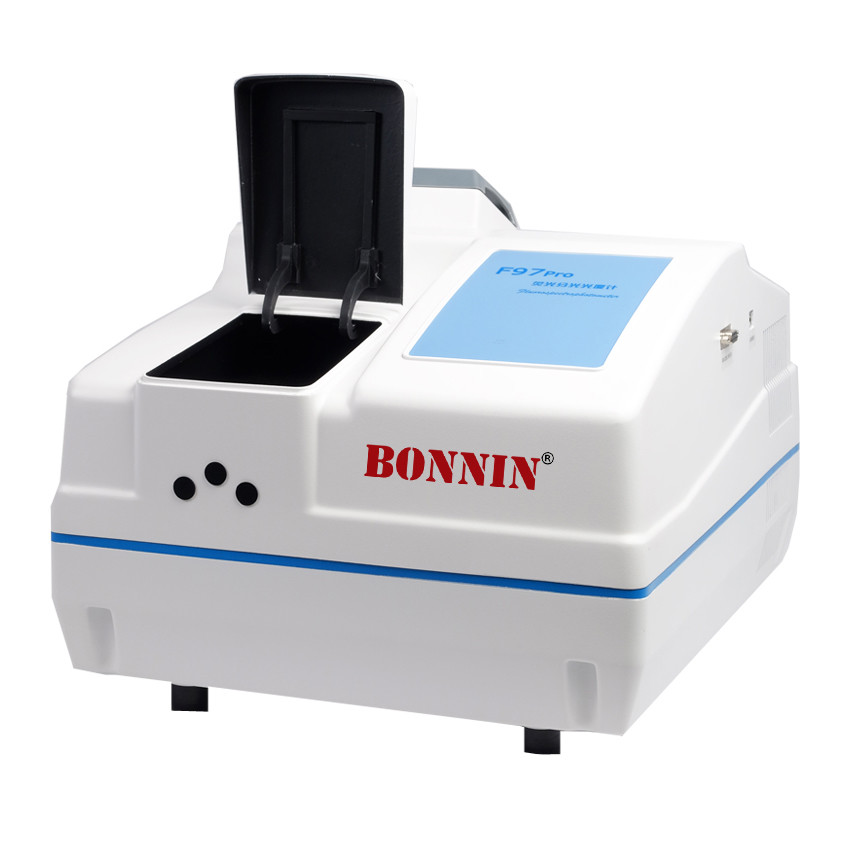

BN- F97 fluorescence spectrophotometer is a new generation of high performance molecular luminescence analysis instrument. The product structure is exquisite, has the characteristics of high detection sensitivity, fast scanning speed, wide spectrum measuring range, high dynamic range, fast 3D scanning, and so on. Easily meet the requirements in the field of material research, pharmaceutical analysis, biochemical and clinical testing, water quality analysis and control, food safety testing (dairy products, aquatic products, such as vitamin C, selenium, aflatoxin), and other areas.


Main Features

High sensitivity: based on high efficiency optical design and weak signal detection technology, the water Raman peak signal to noise ratio can be greater than 200 (P - P) to the leading domestic and international advanced level.

High scanning speed: the high speed digital signal processing unit provides the world's fastest scanning speed at 48000nm/min. Only 1 second to get classic fluorescence spectra, 1 minute to get high quality of three-dimensional fluorescence spectra.

Wide Spectral measurement range: using a double monochromator design, excitation and emission wavelength range covering 200 nm to 900 nm, meet the needs of most fluorescence analysis.

Excitation light path monitoring system: instrument is equipped with excitation light dual beam ratio monitoring system to ensure the fluorescence signal high and stable.

High quality assurance: using Hamamatsu’s high quality Xenon light source and photoelectric multiplier tube detectors and instruments to provide sufficient light intensity signal and the detection sensitivity.

Built-in optical gate: Built-in optical gate, designed for unstable sample.


Specification of BN-F97 Series Fluorescence Spectrophotometer
Excitation Source 150W xenon lamp(Hamamatsu)
Excitation Wavelength 200nm~900nm
Emission Wavelength 200nm~900nm
Excitation Slit F97XP/F97Pro:2nm,5nm,10nm,20nm
Emission Slit F97XP/F97Pro:2nm,5nm,10nm,20nm
Wavelength Accuracy F97XP:±0.4nm
Wavelength Repeatability F97XP:≤0.2nm
Signal-to-Noise Ratio F97XP:Raman peak of water(P-P):S/N≥200(10nm Slit)
F97/F97Pro:Raman peak of water(P-P):S/N≥150(10nm Slit)
Limit F97XP:≤5×10-11 g/ml(Quinine Sulfate Solution)
F97/F97Pro:≤1×10-10 g/ml(Quinine Sulfate Solution)
Linearity γ≥0.995
Peak Repeatability ≤1.5%
Stability(10min) Zero Drift:±0.3
Value Limit:±1.5%
Wavelength Scan Speed Multi-speed Level, Maximum at 48000nm/min
Photometric Quantity Range 0.00-10000.00
Data Transportation USB2.0
Power 200W
Power Source AC 220V/50Hz; 110V/60Hz
Instrument Dimension 380×445×310(mm)
Weight Net Weight:12kg Gross Weight:14kg


Optional Parts

Accessories Functions
Single sample rack Conventional liquid fluorescence sample
Multi purpose fluorescent sample rack holder Base holder for other racks
Double-frequency filter(300nm,350nm,400nm,450nm,500nm,550nm,600nm,650nm 8 for one set) Remove the interference of double-frequency peaks of these wavelengths.
200ul micro scale centrifuge tube rack For centrifuge tube fluorescence measurement
Micro scale capillary sample rack For micro scale capillary sample
Semi-auto sample rack Semi-auto sample rack
Membrane sample rack (Reflection) For membrane sample
Membrane sample rack (Transmission) For membrane sample
Powder sample rack For powder samples
Jacket sample rack

Bonnin USB2.0 60Hz Double Beam UV Spectrophotometer In Medical Laboratory 0Bonnin USB2.0 60Hz Double Beam UV Spectrophotometer In Medical Laboratory 1

Bonnin USB2.0 60Hz Double Beam UV Spectrophotometer In Medical Laboratory 2

FAQ 1. Are you a factory or trading company?

We are a factory.


FAQ 2. Can you supply OEM?

OEM is available.


FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.


FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.


FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.


FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.


FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
