Environmental Analysis GC Gas Chromatography Machines With TCD FPD FID Detector

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: GC1120
Minimum Order Quantity: 1 set
Price: USD5000-12800/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Product Name: GC Gas Chromatograph Detector: Could With FID+TCD+FPD+NPD
Sampler: Temperature Range, 7℃ - 420℃ Display: 7-inch English LCD Screen
High Light:

gas chromatography machine FPD

,

gc gas chromatography machine TCD

,

FID gas chromatography machines

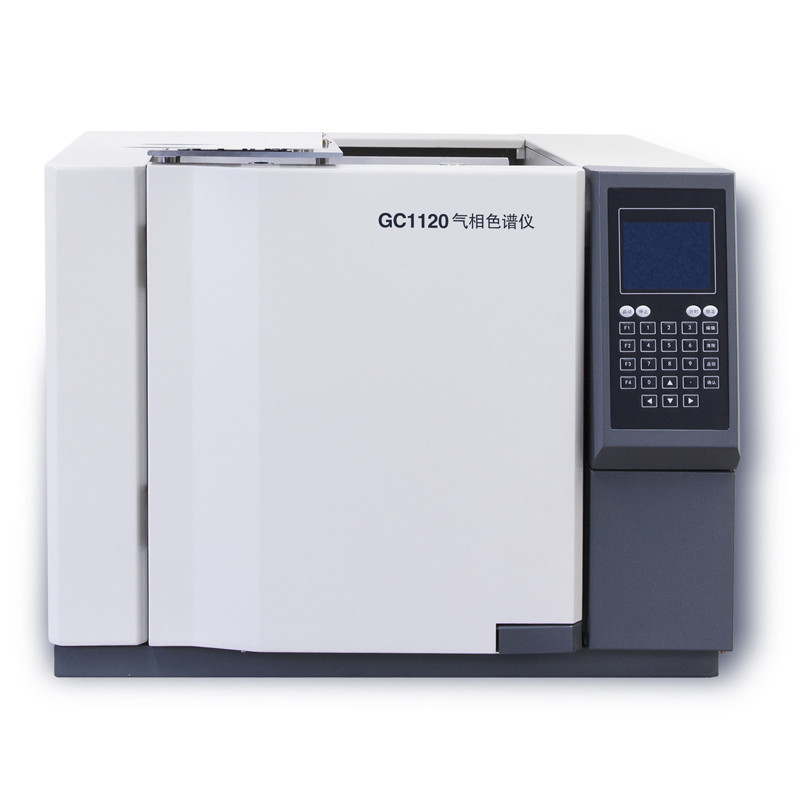

GC1120 Manufacturer GC Chromatography Equipment Gas Chromatograph Price



GC1120 GC1290 FID TCD FPD NPD Laboratory GC Chromatography Equipment Gas Chromatograph is equipped with a packed column inlet and a capillary inlet, a large-screen display in both Chinese and English, and a multi-detector multi-function gas chromatograph.



The main application areas of gas chromatograph:
1. Petroleum and petrochemical analysis:
Chemical analysis, crude oil analysis, refinery gas analysis, simulated distillation, oil analysis, elemental hydrocarbon analysis, sulfur/nitrogen/oxygen compound analysis, gasoline additive analysis, aliphatic hydrocarbon analysis, aromatic hydrocarbon analysis in oil and gas field exploration.
2. Environmental analysis:
Air pollutant analysis, water analysis, soil analysis, solid waste analysis.
3. Food analysis:
Pesticide residue analysis, flavor and fragrance analysis, additive analysis, fatty acid methyl ester analysis, food packaging material analysis.
4. Drug and clinical analysis:
Analysis of estriol, analysis of catecholamine metabolites, analysis of pregnandiol and pregnatriol in urine, analysis of testosterone in plasma, analysis of ethanol/anaesthetics and amino acid derivatives in blood.
5. Analysis of pesticide residues:
Organochlorine pesticide residue analysis, organophosphorus pesticide residue analysis, pesticide residue analysis, herbicide residue analysis, etc.
6. Fine chemical analysis:
Additive analysis, catalyst analysis, raw material analysis, product quality control.
7. Polymer analysis:
Monomer analysis, additive analysis, copolymer composition analysis, polymer structure characterization/impurity analysis in polymers, thermal stability studies.
8. Synthetic industry:
Methods research, quality control, process analysis.



Main pcharacteristics:
1. Large-screen LCD/touch screen display, the screen switching is simple and clear, and the appearance is fashionable and beautiful.
2. Rear door "smart door controller" technology
3. Perfect self-diagnosis function, which can easily check the fault location and fault type.
4. Perfect temperature overheat protection and platinum wire resistance open-circuit and short-circuit alarm functions to ensure that the temperature does not get out of control.
5. Optional built-in AD conversion circuit to directly output digital signals.
6. The anti-control function can be realized according to the user's needs, and the setting and analysis control of all parameters can be completed on the PC.
7. Under the condition of dry ice or liquid nitrogen, negative temperature operation can be realized, supporting a wide range of temperature control from -80°C to 450°C. 8. Within 180°C, the oven control accuracy is as high as ±0.01°C.
9. Two packed columns and one capillary column can be installed at the same time, or two pairs of capillary columns can be installed at the same time.
10. It can realize dual thermal conduction, dual FID, or thermal conduction and hydrogen flame working at the same time.



Technical datas:

Model GC1290 GC Gas Chromatograph GC1120 GC Gas Chromatograph
  EPC(electronic pneumatic control)
7 inch touch screen display

Sample Introduction System sample injector and evaporation chamber
Column Oven Temperature range Ambient temperature +7℃ ~ 400℃ (in 1℃ increment)
Temperature accuracy 0.05℃
programmed temperature setting 0.1℃~40℃/min (in 1℃ increment)
Program ramps 7 ramps in total (10 ramps available with control workstation
Flame Ionization Detector (FID) Detection limit ≤3×10-12g/s (C16)
Drift ≤6×10-13A/h
Thermal Conductivity Detector (TCD) Sensitivity ≥5000mV.mL/mg
Baseline noise ≤20µV
Flame Photometric Detector
(FPD)
Detection limit ≤8×10-13g/s(P) ; ≤8×10-11g/s(S)
Drift ≤2×10-11A/30min
Baseline noise ≤5×10-12A
Electron Capture Detector
(ECD)
Detection limit ≤2×10-13g/s (γ-666)
Drift ≤80µV/30min
Baseline noise ≤20µV
Linear dynamic range ≥103
Nitrogen-Phosphorus Detector (NPD) Detection limit ≤5×10-13g/s(P) ; ≤5×10-12g/s(N)
Photoionization Detector (PID) Detection limit ≤1ppb(benzene)



Optional Parts Main function
GC1120-TCD Thermal conductivity detector
GC1120-ECD Electron capture detector
GC1120-FPD Flame photometer detector
GC1120-NPD Nitrogen phosphorous detector
Chromatographic work station External interface box + work station (not include PC)
Simulation software Imitation find chromatographic condition, emulation teaching, train and knowledge base.



Environmental Analysis GC Gas Chromatography Machines With TCD FPD FID Detector 0



Environmental Analysis GC Gas Chromatography Machines With TCD FPD FID Detector 1Environmental Analysis GC Gas Chromatography Machines With TCD FPD FID Detector 2

Environmental Analysis GC Gas Chromatography Machines With TCD FPD FID Detector 3

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
