| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | GC1120 |
| Minimum Order Quantity: | 1 set |
| Price: | USD5000-12800/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Product Name: | GC Gas Chromatograph | Detector: | Could With FID+TCD+FPD+NPD |
|---|---|---|---|
| Sampler: | Temperature Range, 7℃ - 420℃ | Display: | 7-inch English LCD Screen |
| High Light: | Chromatography Instruments touch screen,ECD gas chromatography lab,PID mass spectrometry and gas chromatography |
||

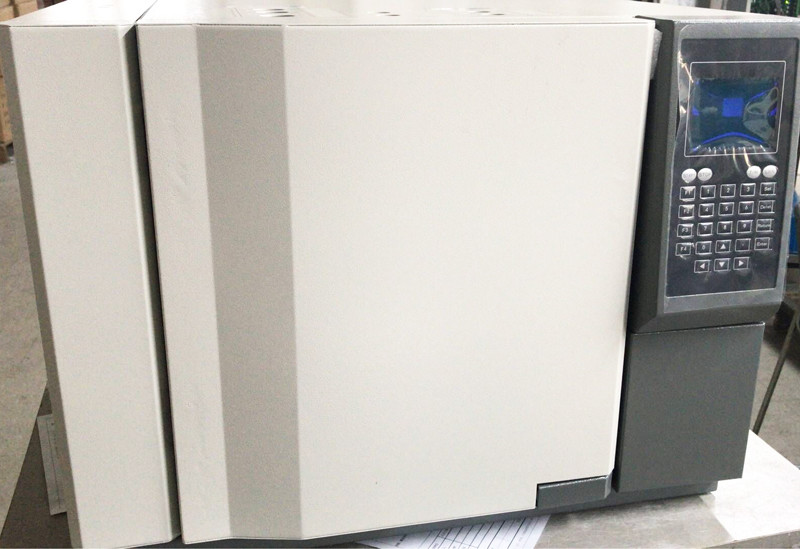

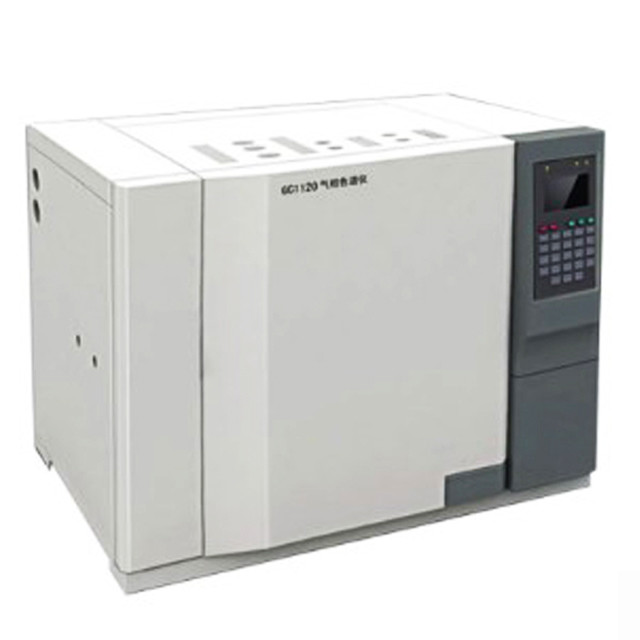

GC1120 FID TCD FPD NPD Lab Gas Analyzers Laboratory GC Gas Chromatograph With Mass Spectrometer
GC1120 FID TCD FPD NPD Lab Gas Analyzers Laboratory GC Gas Chromatograph With Mass Spectrometer is equipped with a packed column inlet and a capillary inlet, a large-screen display in both Chinese and English, and a multi-detector multi-function gas chromatograph.
Main pcharacteristics:
1. Large-screen LCD/touch screen display, the screen switching is simple and clear, and the appearance is fashionable and beautiful.
2. Rear door "smart door controller" technology
3. Perfect self-diagnosis function, which can easily check the fault location and fault type.
4. Perfect temperature overheat protection and platinum wire resistance open-circuit and short-circuit alarm functions to ensure that the temperature does not get out of control.
5. Optional built-in AD conversion circuit to directly output digital signals.
6. The anti-control function can be realized according to the user's needs, and the setting and analysis control of all parameters can be completed on the PC.
7. Under the condition of dry ice or liquid nitrogen, negative temperature operation can be realized, supporting a wide range of temperature control from -80°C to 450°C. 8. Within 180°C, the oven control accuracy is as high as ±0.01°C.
9. Two packed columns and one capillary column can be installed at the same time, or two pairs of capillary columns can be installed at the same time.
10. It can realize dual thermal conduction, dual FID, or thermal conduction and hydrogen flame working at the same time.
Technical datas:
| Model | GC1290 | GC1120 | |
| EPC(electronic pneumatic control) 7 inch touch screen display |
|||
| Sample Introduction System | sample injector and evaporation chamber | ||
| Column Oven | Temperature range | Ambient temperature +7℃ ~ 400℃ (in 1℃ increment) | |
| Temperature accuracy | 0.05℃ | ||
| programmed temperature setting | 0.1℃~40℃/min (in 1℃ increment) | ||
| Program ramps | 7 ramps in total (10 ramps available with control workstation | ||
| Flame Ionization Detector (FID) | Detection limit | ≤3×10-12g/s (C16) | |
| Drift | ≤6×10-13A/h | ||
| Thermal Conductivity Detector (TCD) | Sensitivity | ≥5000mV.mL/mg | |
| Baseline noise | ≤20µV | ||
| Flame Photometric Detector (FPD) |
Detection limit | ≤8×10-13g/s(P) ; ≤8×10-11g/s(S) | |
| Drift | ≤2×10-11A/30min | ||
| Baseline noise | ≤5×10-12A | ||
| Electron Capture Detector (ECD) |
Detection limit | ≤2×10-13g/s (γ-666) | |
| Drift | ≤80µV/30min | ||
| Baseline noise | ≤20µV | ||
| Linear dynamic range | ≥103 | ||
| Nitrogen-Phosphorus Detector (NPD) | Detection limit | ≤5×10-13g/s(P) ; ≤5×10-12g/s(N) | |
| Photoionization Detector (PID) | Detection limit | ≤1ppb(benzene) | |
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
