RT PCR System Real Time PCR Equipment 7 Inch TFT Touch Screen

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: Q1604F, Q3204F
Minimum Order Quantity: 1 set
Price: USD5000-10000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Sample Capacity: 1~16, 1~32 Sample Volume: 10-100 μL
PCR Tube Type: 8 Strips PCR Tube, Single PCR Tube Display: 7 Inch Color TFT Touch Screen, Computer Control
Software: Powerful Data Analysis Function Warranty Time: 12 Months And Life-time Technical Support
Highlight:

real time PCR equipment TFT

,

rt pcr test machine 7 inch

,

rt PCR system TFT

Reliable Real-Time PCR Lab Equipment Small Mini Real-Time qRT-PCR System



BONNIN Q1604F fluorescence quantitative PCR system is a portable fluorescence quantitative PCR instrument. This product adopts a four-channel dual 8-well blocks design (Q3204F is four-channels and double 16-well blocks), which can realize multiple functions in one machine, and has a built-in 7-inch high-definition TFT color touch screen, WIN10 operating system, and built-in analysis software, which can complete quantitative analysis and print reports without a computer. It adopts American Marlow customized Peltier module, high-sensitivity photodetector and side scanning technology to ensure superior performance and stable detection results.



Application fields: This fluorescence quantitative PCR system can be used for real-time detection in pastures, forest farms, farms and water sources, rapid diagnosis of disasters, epidemic prevention and control, animal epidemics, inspection and quarantine in the field of food safety, and scientific research in biological laboratories.



Features:

1) Four channels and double 8/16-well blocks design, can run two different programs
at the same time.
2) Small size, light weight, easy to carry.
3) Powerful software analysis function, which can be used for Quantitative Analysis,
Melting Curve Analysis, Genotyping, Relative quantification, and etc.
4) 7-inch high-definition TFT color touch screen, and embedded win10 operating
system.
5)  20G flash memory can save 40,000 experimental data.
6)Printer as an optional which can print the records directly, no need to connect the
computer.
7) Imported 32 bundled optical fibers are used to collect fluorescence from the side to increase the intensity of fluorescence signal and reduce light conduction damage.
8) Black reaction block to avoid background noise.
9) LED light source has the advantage of energy saving, environmental protection, long service life and maintenance free.
10) The electromagnetic lock cover technology prevents the hot lid from accidentally opening.
11) Front shutdown button makes file data more secure.
12) Constant current control circuit makes power output smooth and extends Peltier life, also improves temperature control accuracy
13) It has the protection functions of over-current, over temperature, power-off data self recovery, etc.
14) Forward and backward air vent design, can be placed side by side, saving laboratory space.

Technical datas:
Model Q1604F fluorescence quantitative PCR system Q3204F fluorescence quantitative PCR system
Sample Capacity 16×0.2ml(2×8well, dual block) 32×0.2ml(4×8well, dual block)
Consumable Clear 0.2 ml PCR tube /8-tube strips
Reaction Volume 10-100μl
Temperature Range 0-100℃(Resolution:0.1℃)
MAX. Ramp Rate 8℃/S
Temperature fluctuation ±0.1℃
Uniformity ±0.25℃
Accuracy ±0.25℃
Hot Lid Temperature 30-110℃((Adjustable, default 105℃))
Temperature control technology Customized Peltier allow 1.000.000 cycles
Temperature Control Block/Tube
Excitation wavelength F1:470nm F2:523nm F3:571nm F4:628nm
Emission wavelength F1:525nm F2:571nm F3:612nm F4:692nm
Factory Calibrated Dyes F1: FAM/SYBR Green I F2: HEX/VIC/JOE/TET F3: ROX F4: CY5
Excitation Long life LED
Detection High sensitivity photoelectric detector
Dynamic Range 1-1010 Copies
Sensitivity 1 copy
Feature function Quantitative/qualitative analysis, Melting curve, Genotyping
Date Export Formats excel, csv, txt
Printing Report can be printed (optional USB thermal printer)
Control Method 7 inch color TFT touch screen, Can be connected to computer control
Communication USB2.0
Dimension 300x267x198mm(L x W x H)
Net Weight 8KG 11KG
Voltage 220VAC 50Hz
Power DC15V 255W DC30V 600W

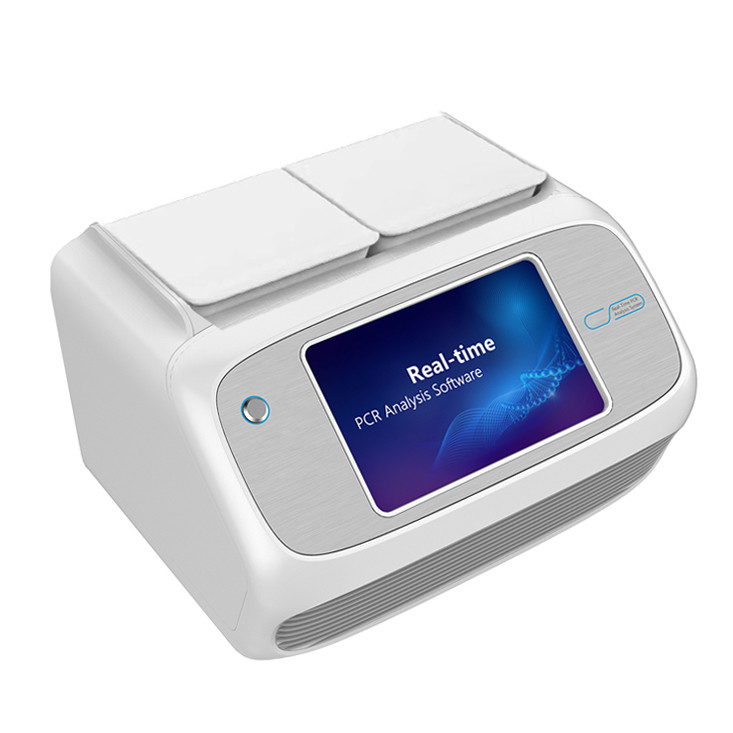

RT PCR System Real Time PCR Equipment 7 Inch TFT Touch Screen 0

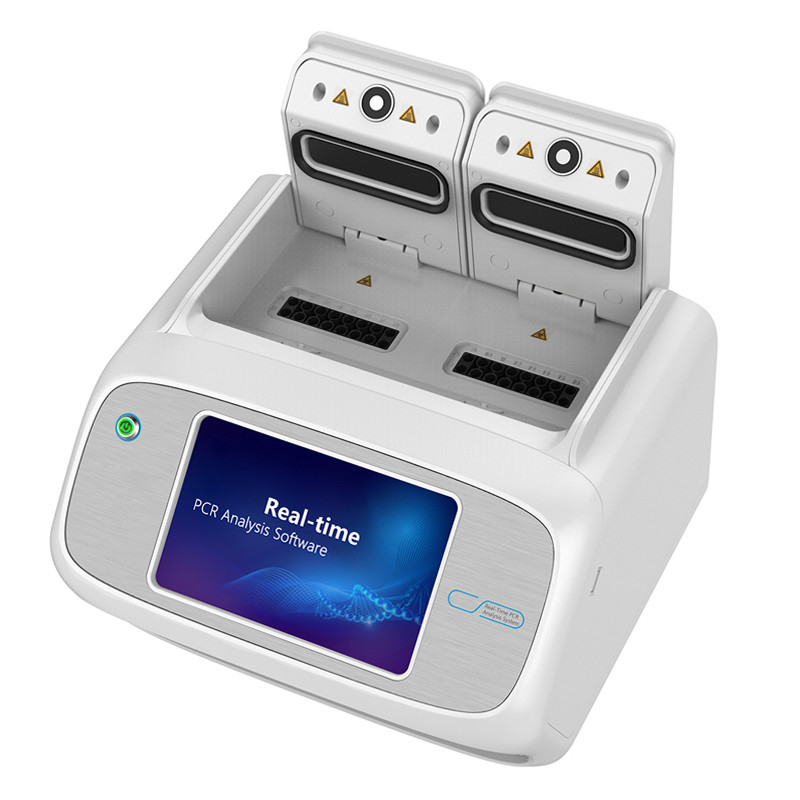

RT PCR System Real Time PCR Equipment 7 Inch TFT Touch Screen 1



RT PCR System Real Time PCR Equipment 7 Inch TFT Touch Screen 2

RT PCR System Real Time PCR Equipment 7 Inch TFT Touch Screen 3RT PCR System Real Time PCR Equipment 7 Inch TFT Touch Screen 4

RT PCR System Real Time PCR Equipment 7 Inch TFT Touch Screen 5

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
