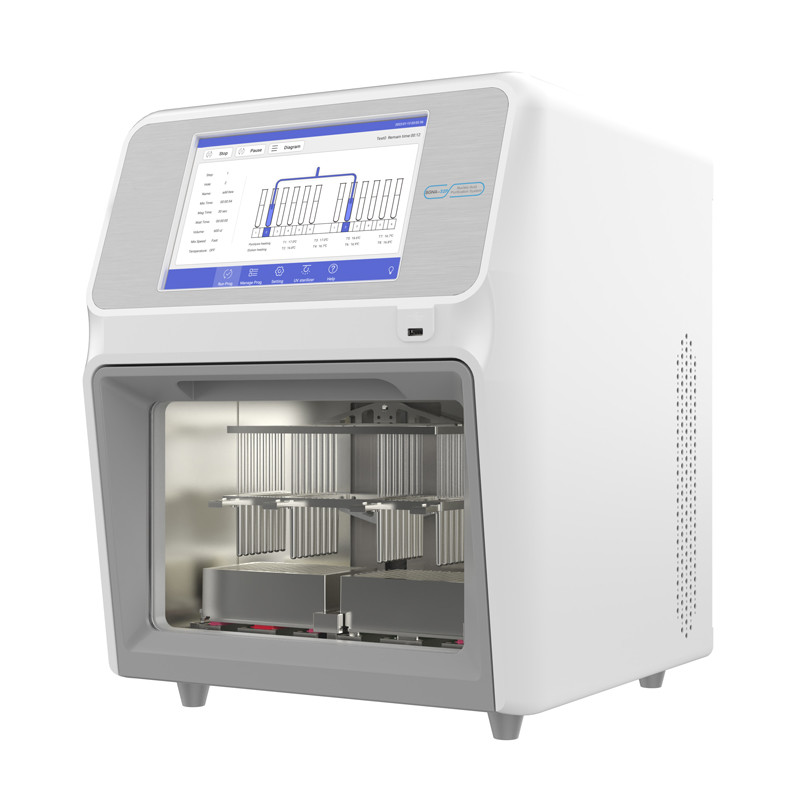

ISO DNA Automated Nucleic Acid Extraction Instrument Device 7 Inch Touch Screen

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: QPure-32P
Minimum Order Quantity: 1 set
Price: USD4500-9000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Sample Capacity: 1~32 Sample Volume: 20~1000ul
Display: 7 Inch English Touch Screen Extraction Time: 15~40 Minutes / Cycle
Sterilization Method: UV Sterilization Lamp Plates Type: 96 Deepwell Plate And 8 Strips Magnetic Sleeve
High Light:

7 inch nucleic acid extraction device


ISO DNA nucleic acid extraction instrument


automated nucleic acid extraction instrument

DNA Nucleic Acid Extraction Instrument Automated Workstation Nucleic Acid Extraction Device


QPure-32P automatic nucleic acid extraction system is an automatic DNA extraction instrument that can provide safe and efficient nucleic acid extraction and purification for biological laboratories and clinical medicine departments. Nucleic acid is extracted from various samples, and the instrument is equipped with multiple safety functions such as door opening protection function, ultraviolet disinfection function, and observation window ultraviolet isolation, so as to ensure the safety and reliability of experimental results.


1. Simple appearance and simple operation;
2. With built-in Wifi module, one machine can control multiple automatic nucleic acid extractors at the same time by connecting to a computer or mobile phone.
3. Support U disk to save/fetch program files, support U disk to update software.


1)Using high-precision screw to realize the transmission structure, the extraction efficiency is fast, and the nucleic acid yield is high;
2)Simple and generous appearance, bright and spacious observation window, working conditions are clearly visible;
3)Use UV light for disinfection to reduce cross-infection and aerosol contamination of samples;
4)Android operating system, matching 10.1-inch capacitive touch screen, simple and smooth operation;
5)Real-time display of program progress and remaining time
6)Scalable Ethernet remote control
7)Adjustable heating mode and vibration gear to meet different experimental needs
8)Automatic power-off protection, prompts to continue unfinished program operation after power is restored, to ensure safe operation of the entire extraction/purification process
9)Equipped with door opening protection function to prevent misoperation
10)Support U disk import/export program, can connect keyboard and mouse;
11)Support U disk and LAN update software;
12)Fast extraction 10-50 minutes/time (depending on different reagents)


Technical Data:

Model QPure-32P Nucleic Acid Extraction and Purification System
Throughput 1-32
Process Volume 20-1000ul
Consumable 96 deepwell Plate + Magnetic rod's tip
Collection Efficiency ≥98%
Stability CV<3%
Operation Temp. Range 10℃-30℃
Humidity Range 20%-80%
Heating Temp. Range +5℃~125℃
Oscillatory mixed mode Adjustable
Pollution Control UV light
Lighting Yes
safety protection Auto data protection
Reagent type Magnetic bead reagent
Display 10.1 touch screen, Android operation system
Communication LAN, USB, Wi-Fi
Dimension 430x390x505(LxWxH)
Weight 30KG
Power Supply AC110/220V 50Hz/60Hz 450W

ISO DNA Automated Nucleic Acid Extraction Instrument Device 7 Inch Touch Screen 0ISO DNA Automated Nucleic Acid Extraction Instrument Device 7 Inch Touch Screen 1

ISO DNA Automated Nucleic Acid Extraction Instrument Device 7 Inch Touch Screen 2

FAQ 1. Are you a factory or trading company?

We are a factory.


FAQ 2. Can you supply OEM?

OEM is available.


FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.


FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.


FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.


FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.


FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
