| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | AutoPure-32A |
| Minimum Order Quantity: | 1 set |
| Price: | USD7500-9000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/month |
| Sample Capacity: | 1~32 | Sample Volume: | 20~1000ul |
|---|---|---|---|
| Display: | 7 Inch English Touch Screen | Extraction Time: | 15~40 Minutes / Cycle |
| Sterilization Method: | UV Sterilization Lamp | Plates Type: | 96 Deepwell Plate And 8 Strips Magnetic Sleeve |
| Highlight: | AutoPure-32A nucleic acid extractors,50Hz automatic nucleic acid extractor,AC110V dna rna extraction machine |
||

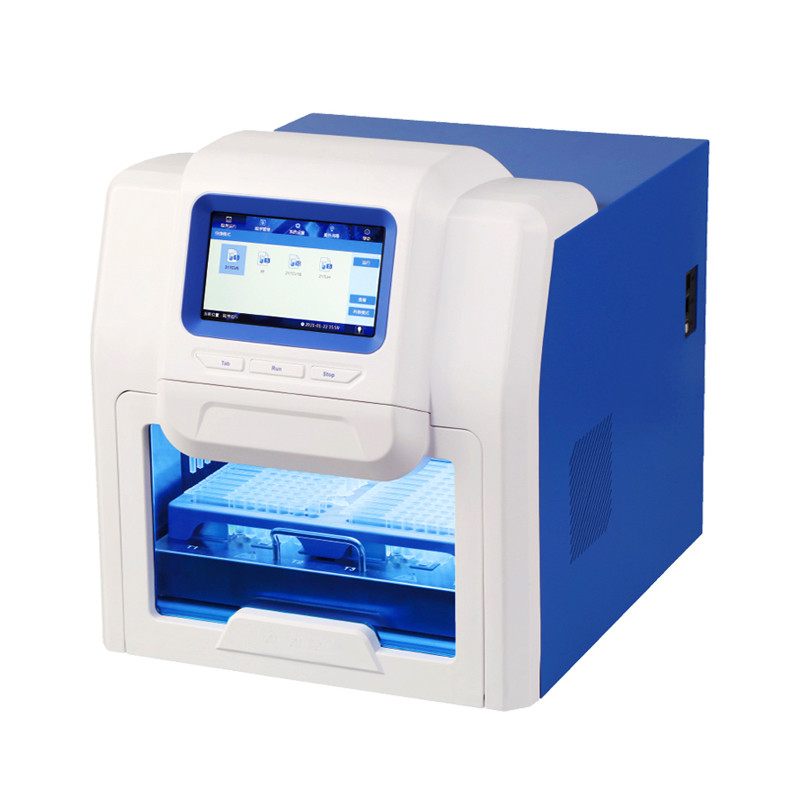

AutoPure-32A Automated DNA RNA Purification Nucleic Acid Extractor
AutoPure-32A Automated Nucleic Acid Extraction System is an easy-to-use benchtop instrument that automates the nucleic acid extraction process for contamination and impurity testing without hands-on. The instrument using magnetic beads separation technology from blood, cultured cells or bacteria, tissues, cell-free body fluids and plant samples, to purify and extract nucleic acid and protein efficiently and stably.
Features
1. It is easy to use with 7 inch touch screen
2. Very simple operation (easy to install, operate, maintain) without computer
3. Very fast extraction protocol, 15~40 minutes / cycle depending on sample type and method
4. Universal built-in program for easy using
5. High purity and excellent yield of nucleic acid
6. UV lamp to avoid cross contamination
7. 3 shortcut key to make for easy running, stopping the magnetic beads program
8. Open system can optimize purification proposal according to various magnetic beads kits
9. Drawer design to prevent possible injuries
10. With special plastic consumables to avoid cross contamination
11. Improves workflow, and allows staff to perform other value-added tasks
12. Ensures impurities are removed; improved sample quality leads to better
downstream analyses
13. Capable of extracting 1~32samples per run
14. Alarm for indicating the completion of purification
15. Pause function for emergent stop
Technical Data
| Type | AutoPure-32A Automated Nucleic Acid Extraction System |
| Throughput | 1~32 |
| Sample volume | 20~1000ul |
| Collection efficiency of the magnetic particles | >95% |
| Magnetic rod number | 32 |
| Plate types | 96 Deepwell plate |
| Extraction steps | Lysis, Sample binding, Washing and elution |
| Purification accuracy | 100 copy sample positive rate >95% |
| Heating Temperature | For cell lysis: Ambient temperature ~90℃ |
| For nucleic acid elution | Ambient temperature ~90℃ |
| Operation | 7 inch color touch screen |
| Storage Capacity | more than 100 programs |
| Protocol Management | Create, edit , delete, protocol mode |
| Pollution Control | UV light |
| Extension interface | 4 standard USB port, built-in SD card |
| Exhaust | Fan |
| Power Supply | AC110/220V, 50/60Hz |
| Dimensions | Dimensions |
| Weight | 23kg |
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
