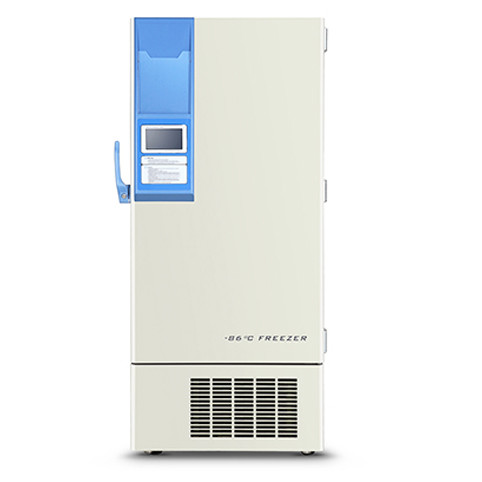

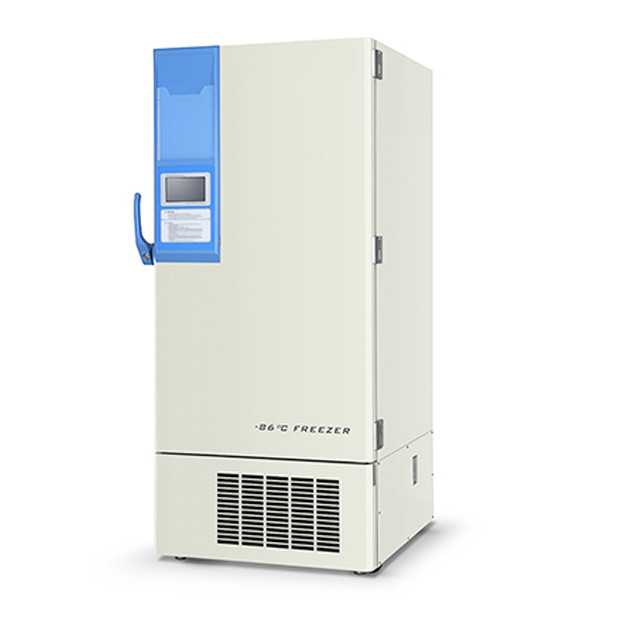

Ultra Low Temperature Laboratory Fridge Deep Freezer Vaccine Minus 86C 528L

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: DW-BN528S
Minimum Order Quantity: 1 set
Price: USD5000-15000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Incubator Name: Vaccine Refrigerator Temperature: -40~-86℃
Capacity(L): 528 Internal Size(W*D*H)mm: 585*696*1266
High Light:

528L ultra low temperature lab freezer


deep freezer vaccine minus 86C


laboratory fridge freezer 528L

-86°C Ultra Low Temperature Freezer Deep Vaccine Freezer



-40°C~-86°C ultra low temperature freezers comes with updated refrigeration system, ensuring fast refrigeration. And the VIP plus vacuum insulation foaming door brings out perfect temperature performance and reducing overheating in the inner of the cabinet. This laboratory freezer / medical freezer is designed with touch screen display for setting temperature in the range of -40°C~-86°C freely with high-precision display of 0.1 °C. This is an energy saving and environmental friendly ultra deep freezer, which is designed in CFC-free mixture refrigerant is environmental friendly. The refrigerant system of the -86°C ultra low temp freezer is adopted Embraco compressor and EBM fans from Germany.


New generation of -40°C~-86°C upright deep freezer provides you with targeted refrigeration system ensuring fast refrigeration. And this refrigeration technology was awarded the Second Prize under State Technological Invention Award.


Safety alarm system

This ultra low temperature freezer enables the audible and visible alarm system, including power failure alarm, high /low temperature alarm, sensor failure alarm, door ajar alarm, system failure alarm, etc.


Optimized Foaming Design



Model Specification:


-86℃ Ultra-low Temperature Freezer
Model DW-BN528S
Capacity(L) 528
Internal Size(W*D*H)mm 585*696*1266
External Size(W*D*H)mm 930*1041*1947
Package Size(W*D*H)mm 1035*1165*2158
NW/GW(Kgs) 286/363
Temperature Range -40~-86℃
Ambient Temperature 16-32℃
Cooling Performance -86℃
Climate Class N
Controller Microprocessor
Display Touch screen
Compressor 1pc
Cooling Method Direct Cooling
Defrost Mode Manual
Refrigerant Mixture gas
Insulation Thickness(mm) 130
External Material High quality steel plates with spraying
Inner Material Galvanized steel sheet
Shelves 3(stainless steel)
Door Lock with Key Yes
External Lock Yes
Access Port 2pcs. Ø 25 mm
Casters 4+(2 leveling feet)
Data Logging/Interval/Recording Time USB/Record every 1 minute / 365 days
Backup Battery Yes
Temperature High/Low temperature,High ambient temperature
Electrical Power failure
System Sensor failure,Main board communication error,Built-in datalogger USB failure,Condenser cooling failure,Door ajar,System failure
Power Supply(V/HZ) 220-230~/50
Rated Current(A) 6.57
Standard Remote alarm contact
Options Chart recorder, CO2 backup system, Printer


Ultra Low Temperature Laboratory Fridge Deep Freezer Vaccine Minus 86C 528L 0Ultra Low Temperature Laboratory Fridge Deep Freezer Vaccine Minus 86C 528L 1

Ultra Low Temperature Laboratory Fridge Deep Freezer Vaccine Minus 86C 528L 2

FAQ 1. Are you a factory or trading company?

We are a factory.


FAQ 2. Can you supply OEM?

OEM is available.


FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.


FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.


FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.


FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.


FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
