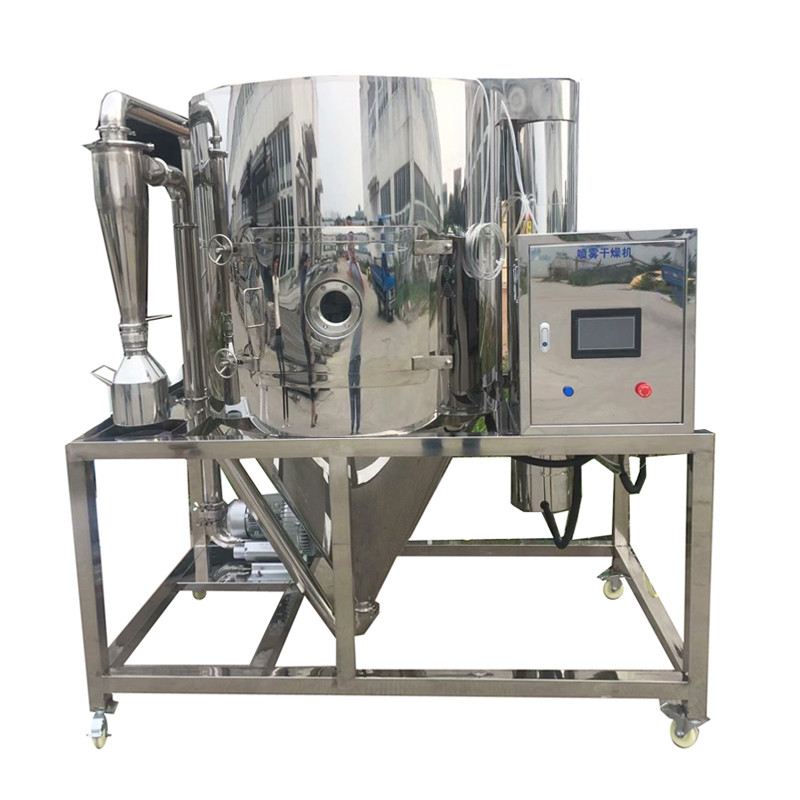

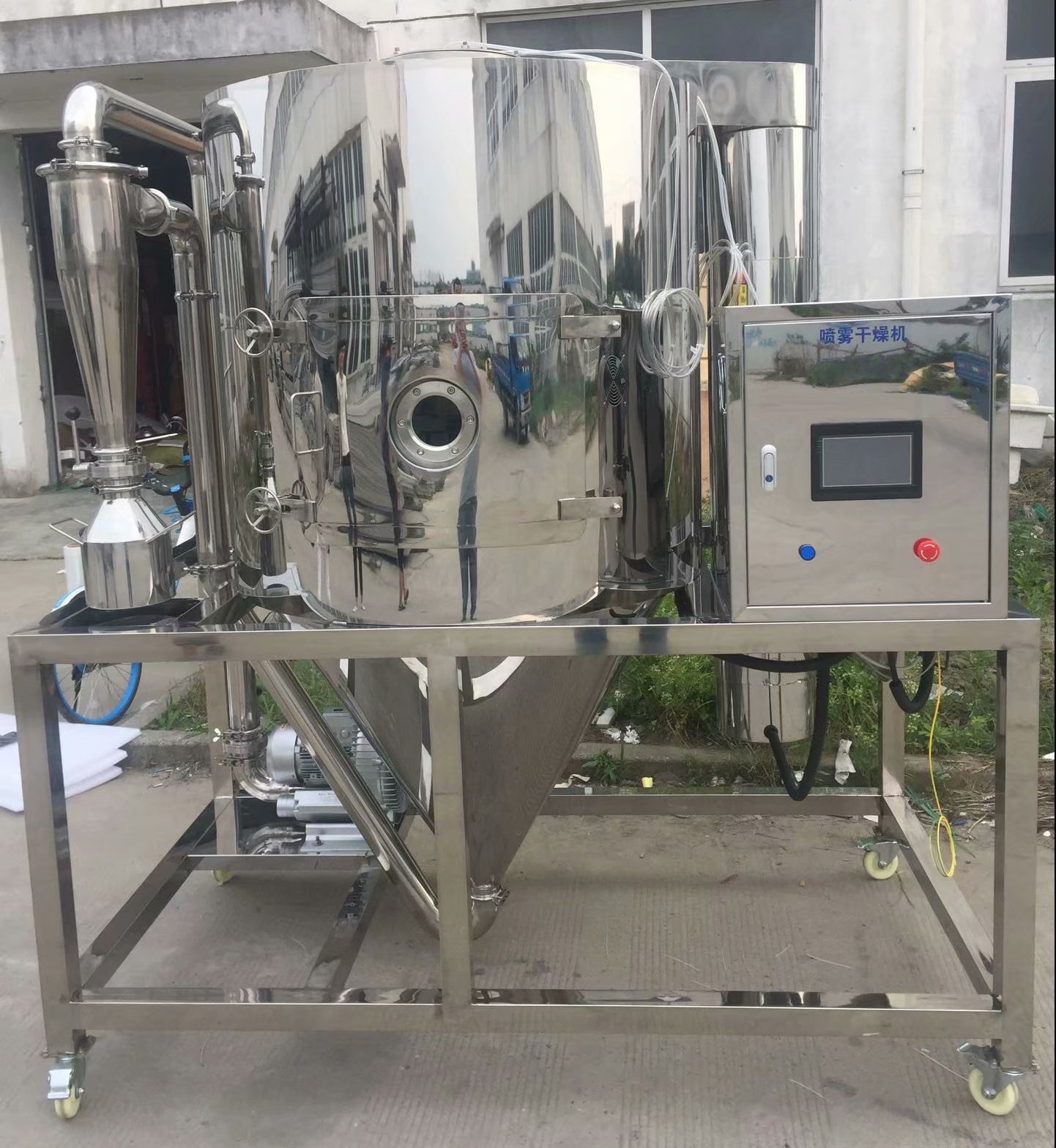

5L/ H Industrial Spray Dryer Machine For Milk Powder Atomizer

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: BNT-5L
Minimum Order Quantity: 1 set
Price: USD2000-18000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Max Capacity: 5000ml/h Temperature Range Of Inlet Air: 30ºC -280ºC
Display: English Touch Screen Power: 9KW 380V
High Light:

5L/ h industrial spray dryer


spray dryer machine 5000ml/ h


spray dryer machine for milk powder

Cheap Price For Spray Dryer, Industrial Spray Dryer Atomizer Milk Spray Drying Machine


BNT- 5L Stainless steel spray dryer (centrifugal spray dryer / high-speed centrifugal spray dryer) is mainly used in universities, research institutes and food and pharmaceutical companies to produce micro-particle powders. It has a broad spectrum of application for all solutions such as emulsions and suspensions. Sex, suitable for the drying of heat sensitive substances such as biological products, biological pesticides, enzyme preparations, etc., because the materials ejected are only subjected to high temperature when sprayed into mist-sized particles, so they are only heated instantaneously and can maintain these activities. The material retains its active ingredients intact after drying.

For example:
Food, pharmaceuticals, milk powder, egg yolk, soy sauce, coffee, starch, protein, hormones, serum, antibiotics, enzymes, spices, extracts, organic chemistry Wax, dyes, detergents, surfactants, pesticides, preservatives, synthetic resins, pigments, etc. Inorganic chemistry Development of fuel cells for various automotive and marine propulsion fuels such as ferrite, ceramics, powder for copying, magnetic materials, metal powders, photosensitive materials, various industrial chemicals, and sample waste liquids

Instrument features
1. Imported centrifugal nozzle, high efficiency
2.The feed amount can be adjusted by the feed peristaltic pump, and the minimum sample volume can reach 50ml.
3. Dry powder after drying, the particle size is relatively uniform, and more than 95% of the dry powder is in the same particle size range.
4. The drying speed is rapid, and 95-98% of water can be evaporated in an instant. It takes more than ten seconds to complete the drying time.
5. Co-current spray drying is adopted. During the drying process, the temperature of the droplets is not high and the product quality is good.
6. Depending on the physical properties of the material, it can be dried with hot air or with cold air.
7. spherical shape of the droplets, and the product has good dispersibility, fluidity and solubility.
8. Simplified production process and convenient operation and control. Spray drying is usually used for solvents with a moisture content of 40-60%. Special materials can be dried into a powdered product at the same time even with a moisture content of up to 90%.
9. In order to prevent the material from being polluted and prolong the life of the equipment, all parts in contact with the material are made of stainless steel of 1Cr18Ni9Ti.
10. The whole body is made of mirror-type stainless steel to prevent deformation and corrosion of the sticky wall.
11. With sample observation window, it is safe and intuitive.

Technical Parameter
Model BNT-5L
Inlet air temperature control 30 °C ~ 300 °C
Outlet temperature control 30 °C ~ 140 °C
Evaporation water volume 5000mL/H
Maximum feed amount up to 5000ml/h (adjustable)
Feeding mode peristaltic pump adjustment
Minimum feed amount 50mL
Temperature control accuracy ± 1 ° C
Maximum air volume 5.5 m3/min
Average drying time 1.0~1.5S
Machine power 9KW / 380V
Nozzle diameter 5mm
Equipment weight 500KG
Dimensions 2000mm (length) × 1100mm (width) × 2200mm (height) Size can be customized



5L/ H Industrial Spray Dryer Machine For Milk Powder Atomizer 0

5L/ H Industrial Spray Dryer Machine For Milk Powder Atomizer 15L/ H Industrial Spray Dryer Machine For Milk Powder Atomizer 2


Excellent Pre-sale service
1. According to your specification request, provide the best price for you.
2. After you confirmed the specification and price, our engineers and sales will make a Official Quotation for you confirm.
3. After our Finance Department confirmed your deposit, we will start manufacture the products for you.
4. Update the progress of production to you in time, to help you know your order details progress
5. After the product manufacture finished, if you need, we will arrange shipping for you. With our professional skill, you just need to pick your products up at the destination place, and don’t need to worry about the shipping at all.

Outstanding After-sale service
1. 12 months guarantee term, and Professional Technical Support.
2. If you have any questions when you use our products, please tell us, we will help you solve the problems in time.
3. If any spare parts have problem after you used it, we can provide it for you, help you solve the problem if anything affect your business.
4. We can also provide engineer to your local place if you need. You just need to bear the Airplane ticket, and accommodation cost.
5. Other relevant service you request.
