220V 3.5KW Vacuum Mini Spray Dryer Lab Scale 2000ml/ H Lab Testing Instruments

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: BNT-6000Y
Minimum Order Quantity: 1 set
Price: USD2000-8000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Max Capacity: 1500-2000ml/h Temperature Range Of Inlet Air: 30ºC -280ºC
Display: English Touch Screen Power: 3.5KW 220V
High Light:

3.5KW Mini Spray Dryer

,

220V small spray dryer

,

2000ml/ h lab scale spray dryer

Milk Powder Mini Spray Dryer, Vacuum Small Lab Scale Spray Dryer

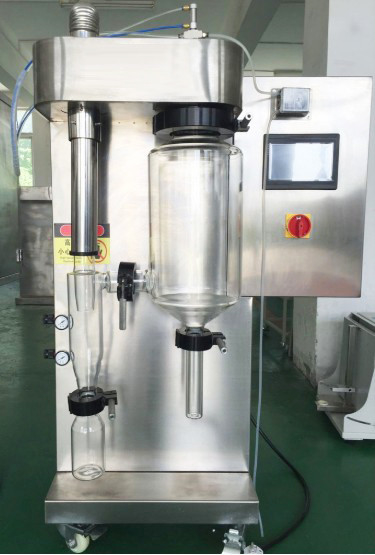

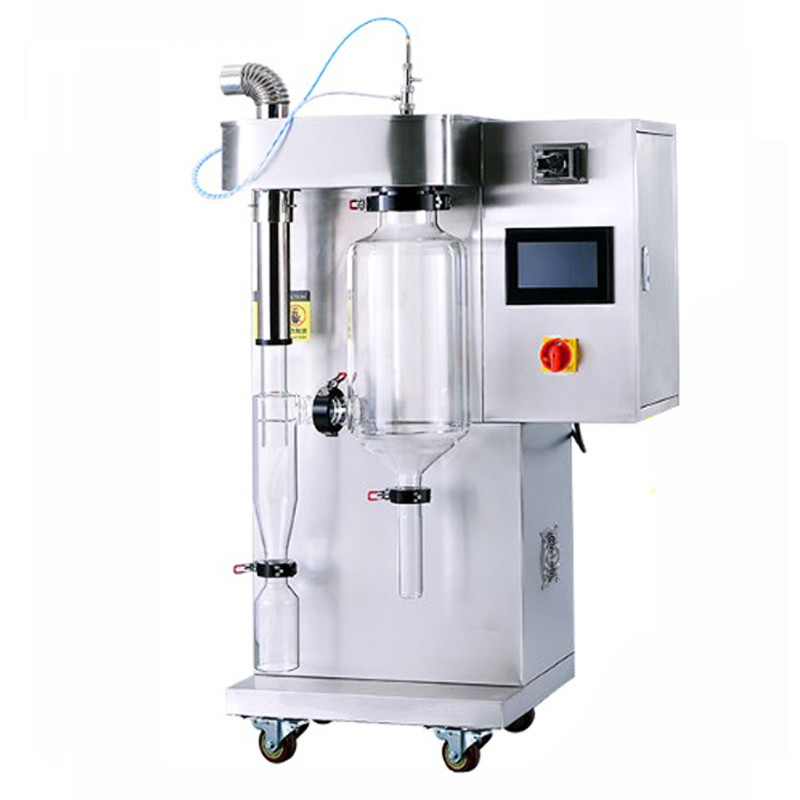

BNT-6000Y Mini Laboratory Spray Dryer, Small Spray Dryer

The compact design of the unit allows it to be placed in a laboratory or in a specially designed stainless steel rack, all in one, with no additional equipment required. One-touch boot, color LCD touch screen operation, can be completely automatic or manual monitoring of two modes of operation, convenient operation and monitoring of the experimental process. Is currently the smallest, the smallest noise, the drying effect is very good a spray dryer.



Features:

1. Large color touch screen operation, combined with automatic control and manual control, ten-stage program temperature control, and self-storing function.
2. Full-automatic control: one-button start-up, after setting the spray process parameters, the temperature reaches the predetermined temperature, the peristaltic pump starts itself.
3. Manual control: If the process parameters need to be adjusted during the experiment.
4. Shutdown protection function: Just press the stop button when shutting down.
5. The spray, drying and collection system is made of transparent high-quality borosilicate heat-resistant glass material, which makes the spray drying process in a non-polluting and stable environment.
6. The small spray dryer has built-in imported oil-free air compressor.
7. The atomization structure of the two-fluid spray.
8. The real-time regulation PID constant temperature control technology, temperature control precision is ±1 °C.
9. In order to keep the sample clean, an air inlet filter is provided.
10. The feed amount can be adjusted by the feed peristaltic pump, and the minimum sample volume can reach 50ml. Magnetic stirrer optional
11. Dry powder after drying, the particle size is relatively uniform, and more than 95% of the dry powder is in the same particle size range.
12. The small spray dryer is equipped with a nozzle cleaner (passing needle) for the viscous material. When the nozzle is blocked, it will be automatically cleared, and the frequency of the needle can be automatically adjusted.
13. Innovative tower wall purging device with higher material recovery rate.
14. Automatic cleaning function, greatly enhancing the dry sample recovery rate.
15. The automatic cleaning function of the drying tower eliminates the need for manual cleaning, which greatly saves the experiment time.



Main technical datas:

Max capacity 1500-2000ml/h
Temperature range of Inlet air 30ºC -280ºC
Temperature range of outlet air 40ºC -120ºC
Precision of temperature ± 1 ºC
Dryer time 1.0-1.5 S
Speed of squirmy pump 30-2000ml/h
Consume of dryer air 0-330m3 /h, max pressure: 686Pa
Consume of spray air 0-4.2m3 /h, spray pressure: 2-5bar
Spray system 2 liquid nozzles with standard 0.7mm jet
options of 0.5/1.0/1.5/2.0/2.5mm
Spray direction downwards co-current
Power 3.5KW 220V
Dimensions 650×500×1550 ( mm ) L x W x H



220V 3.5KW Vacuum Mini Spray Dryer Lab Scale 2000ml/ H Lab Testing Instruments 0

220V 3.5KW Vacuum Mini Spray Dryer Lab Scale 2000ml/ H Lab Testing Instruments 1220V 3.5KW Vacuum Mini Spray Dryer Lab Scale 2000ml/ H Lab Testing Instruments 2
