| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | ISO, CE |
| Model Number: | FP6450, FP6440 |
| Minimum Order Quantity: | 1 set |
| Price: | USD1000-2800/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Pump Type: | Dual Channel, K, Na, Ca, Li And Ba Can Be Detected Simultaneously. | Flame Size: | Pre-selected With Flame Size |
|---|---|---|---|
| Display: | English Touch Screen, Optional Operating Software | ||
| Highlight: | Multielement Lab Spectrophotometer,table top spectrophotometer LCD,Dual channel Flame Photometer |
||

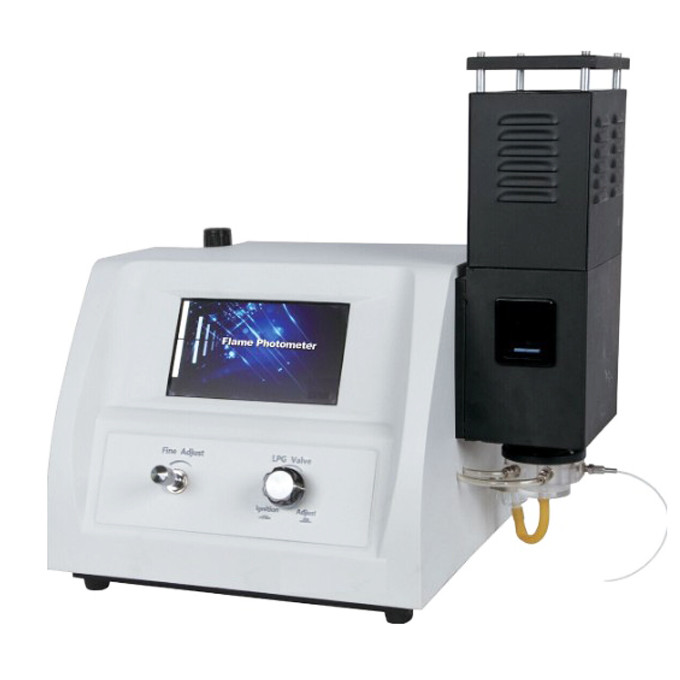

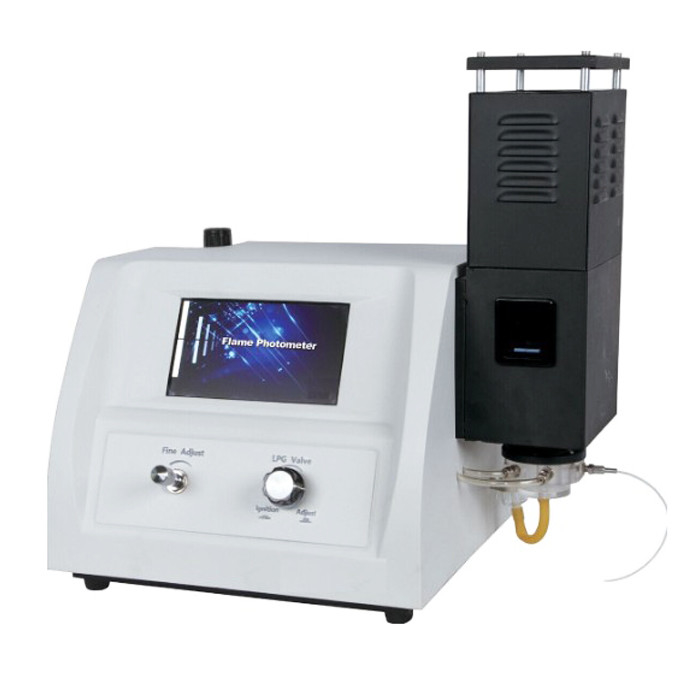

Multi-element table top spectrophotometer, Touch Screen Flame Photometer
FP series multi-element flame photometer is a newly designed instrument. It has the advantages of small size, easy operation and stable and reliable. Host with 7-inch color capacitive touch LCD screen, can store up to 10 points a group of standard curve 200 sets of test data. FP series flame photometer uses liquefied gas as gas.
Main feature:
● with potassium, sodium, lithium, calcium, barium concentration of direct reading function. (Depending on model)
● With potassium, sodium, lithium, calcium, barium detection range screen switching function. (Depending on model)
● With correlation coefficient automatic calculation function.
● Pre-selected with flame size.
● With a safety flame protection device.
● With data direct printing device (optional).
● Has a USB communication port.
● Optional operating software.
Main technical parameters:
| Model | FP6450 | FP6440 | FP6432 | FP6431 | FP6430 | |||||
| Display method | 7 inch color capacitive touch LCD screen | |||||||||
| Show results | Concentration value | |||||||||
| Reading range | 0.000～999.9 | |||||||||
| Test elements | Potassium, sodium, lithium, calcium, barium | Potassium, sodium, lithium, calcium | Potassium, sodium, barium | Potassium, sodium, calcium | Potassium, sodium, lithium | |||||
| Number of channels | 5 | 4 | 3 | 3 | 3 | |||||
|
test limit mmol/L |
Potassium | ≤0.004 | ||||||||
| Sodium | ≤0.008 | |||||||||
| Lithium | ≤0.015 | 〇 | 〇 | ≤0.015 | ||||||
| Calcium | ≤0.050 | 〇 | ≤0.050 | 〇 | ||||||
| Barium | ≤0.044 | 〇 | ≤0.044 | 〇 | 〇 | |||||
|
Linearity error mmol/L |
Potassium | ≤0.005 | ||||||||
| Sodium | ≤0.03 | |||||||||
| Lithium | ≤0.021 | 〇 | 〇 | ≤0.021 | ||||||
| Calcium | ≤0.075 | 〇 | ≤0.075 | 〇 | ||||||
| Barium | ≤0.066 | 〇 | ≤0.066 | 〇 | 〇 | |||||
| Response time | ＜8s | |||||||||
| Minimum suction volume | ＜6ml/min | |||||||||
| stability | With the standard solution for continuous injection, 15s within the instrument shows the relative maximum amount of change ≤ 3% 1 test per minute, a total of 6 times, the maximum value of the instrument changes ≤ 15% | |||||||||
| Repeatability | ≤3% | |||||||||
| Graph | Have | |||||||||
| printer | Optional | |||||||||
| Printer type | Built-in thermal printer | |||||||||
| USB interface | Have | |||||||||
| Connect to the computer | Yes | |||||||||
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
