| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | LS-HD Series |
| Minimum Order Quantity: | 1 set |
| Price: | USD500-2200/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Effective Volume Of Sterilization Chamber: | 35L/50L/75L/100L | Fixed Work Stress: | 0.22Mpa |
|---|---|---|---|
| Rated Operating Temperature: | 134℃ | Power: | 1 X 2.5KW/AC220V 50HZ |
| High Light: | vertical autoclave sterilizer Digital,Bonnin steam sterilizer machine,PCR Test Instruments Sterilizer |
||

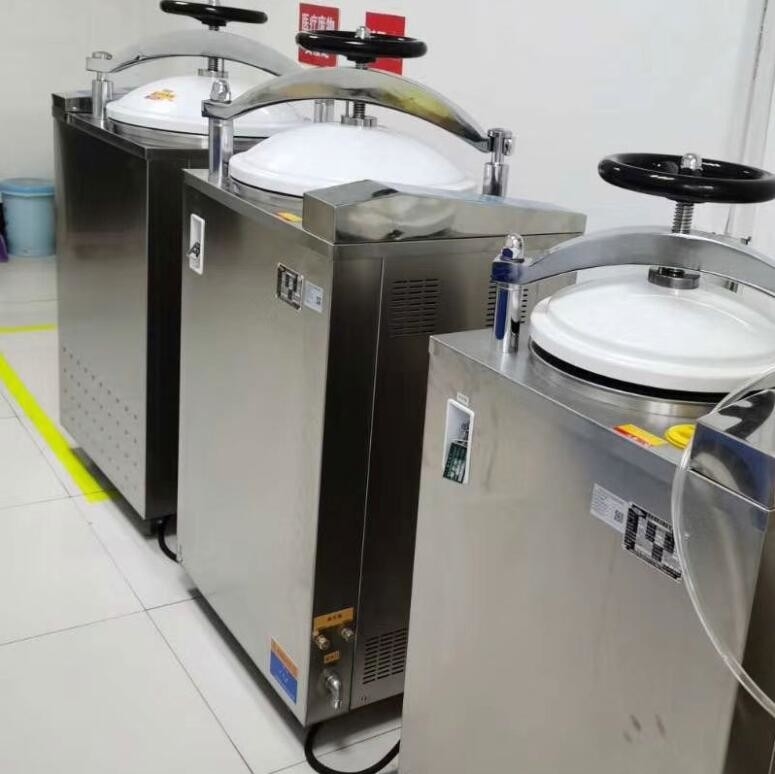

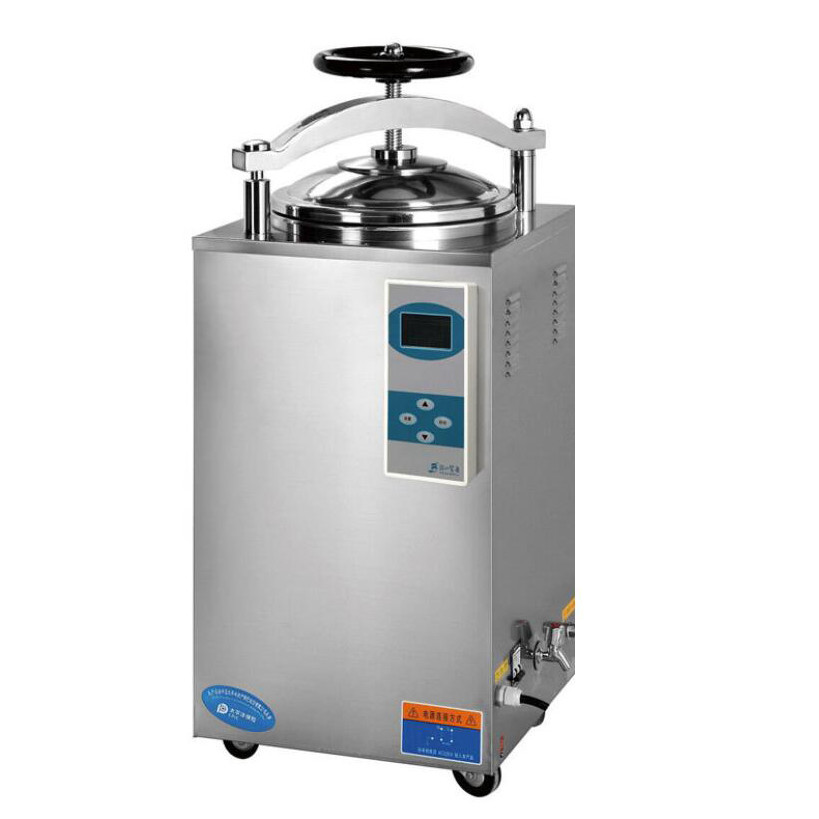

Automatically Sterilization Equipment Vertical Steam Autoclave Sterilizer Digital
This vertical steam sterilizer is a safe, reliable and automatically controlled sterilization equipment, consisting of a heating system, a microcomputer control system and an overheating and overpressure protection system. The container has the advantages of reliable disinfection and sterilization effect, convenient operation, safe use, power saving and durability, and low cost. .
Performance and Features:
• High quality all stainless steel material
•Handwheel translation type quick opening structure
• Safety interlocks
• LCD display working status, touch key
• Water cut protection control
• Self-expanding seal
•Automatically discharge cold air, automatically discharge steam after sterilization
•Over-temperature, over-pressure automatic protection function
Technical datas:
| Model | LS-35HD | LS-50HD | LS-75HD | LS-100HD | |
| Technical parameter | |||||
| Effective volume of sterilization chamber |
35L φ318×450mm |
50L φ340×550mm |
75L φ400×600mm |
100L φ440×650mm |
|
| Fixed work stress | 0.22Mpa | ||||
| Rated operating temperature | 134℃ | ||||
| Maximum working pressure | 0.23Mpa | ||||
| Thermal uniformity | ≤±1℃ | ||||
| Timing selection range | 0-99min or 0-99hour59min | ||||
| Temperature selection range | 105-134℃ | ||||
| Power/Supply Voltage | 1 X 2.5KW/AC220V 50HZ | 2 X 1.5KW/AC220V 50HZ | 3 X 1.5KW/AC220V 50HZ | ||
| Dimensions (mm) | 470×450×1020 | 520×490×1150 | 550×530×1180 | 580×560×1290 | |
| Shipping volume (mm) | 540×540×1140 | 580×580×1250 | 610×610×1280 | 640×640×1360 | |
| Gross/Net | 81Kg/63Kg | 94Kg/74Kg | 113Kg/93Kg |
125Kg/105Kg |
|
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
