Lyophilization Sublimation Industrial Lab Freeze Dryer Vaccine Drug 8KG/ Batch

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: LGJ-100F/200F
Minimum Order Quantity: 1 set
Price: USD8000-22000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Freeze-drying Area: LGJ-100F (1.04M2), LGJ-200F (2.16M2) Cold Trap Temperature: ≤-75℃ (no-loading)
Display: English Touch Screen Power: 3Ph+N+PE, 380V
High Light:

Lyophilization Lab Freeze Dryer

,

Sublimation industrial freeze drying machine

,

8KG/ Batch Drug Freeze Dryer

8KG/ Batch Lyophilization Sublimation Laboratory Freeze Dryer Vaccine Drug



This LGJ-100F Industial vacuum freeze drying machine lyophilizer is widely used in many applications of pharmaceutical biological industry, such as in vitro diagnostic reagents, drugs, active pharmaceutical ingrediet, bioactive factor, peptide, etc.



And Wuhan Bonnin Technology Ltd has multiple model available. The LGJ-20F/30F/50F/100F/200F silicon oil heating vacuum freeze dryer, in-situ freeze-drying. It changes the tedious operation of the drying process in the past, prevents the contamination of materials, and realizes the automation of drying and sublimation. This model has baffle heating and programmable functions, can memorize the freeze-drying curve, and has a built-in U disk extraction function, which is convenient for users to observe the freeze-drying process of materials.



Normal type and stoppering type is optional.



Main technical datas:

Normal type LGJ-20F LGJ-30F LGJ-50F LGJ-100F LGJ-200F
Freeze-dried area 0.3M2 0.4M2 0.5M2 1.04M2 2.25M2
Number of plate 3+1 4+1 4+1 6+1 5+1
Plates space 70mm 70mm 70mm 70mm 70mm
Plate size 270*400*15 300*340*15 360*480*15 360*480*15 500*900*15
Plate temperature -50℃ to 70℃ -50℃ to 70℃ -50℃ to 70℃ -50℃ to 70℃ 50℃ to 70℃
Cold trap temperature ≤-75℃ ≤-75℃ ≤-75℃ ≤-75℃ ≤-75℃
Water for cold trap 4KG/24Hr 6KG/24Hr 8KG/24Hr 15KG/24Hr 30KG/24Hr
Defrost electric defrost Natural defrost Natural defrost electric defrost Water soaking
Voltage AC220V/50Hz AC220V/50Hz AC380V/50Hz AC380V/50Hz AC380V/50Hz
Dimension 800*800*1550 880*735*1320 960*785*1450 1020*780*1700 2100*1200*1700


Main features:

1. It is our company’s patented freeze dryer. Square warehouse in-situ vacuum freeze dryer, pre-freezing and drying are completed in-situ, easy to operate and good drying effect.
2. The ACRYLIC material is used for the drying chamber door. It is colorless, transparent, and the whole process of lyophilization can be observed.
3. Inflatable (drainage) valves use safety diaphragm valves, which can be connected to an inert gas source, and filled with inert gas after drying to extend material storage time.
4. Patented gas diversion technology, uniform ice catching in cold traps, and strong ice catching capability.
5. Internationally renowned brand compressors, high efficiency, long life, low noise.
6. Separator patented technology and partition temperature fuzzy control technology, the shelf temperature difference is small, the temperature control accuracy is high, and the drying effect is even.
7. The freeze-drying curve optimization control technology can control the cooling rate in the pre-freeze phase, and at the same time, it can control the sample heating rate and the current stage vacuum degree in the sublimation and analytical drying stages.
8. The powerful sensor calibration function ensures the long term accuracy of the measured value.
9. 7-inch true color industrial embedded touch screen + SH-HPSC-II modular controller, high control accuracy, stable and reliable performance.
10. The professionally designed FD-EMB control system can save hundreds of process recipes. Each recipe contains 50 temperature control zones to improve the process optimization rate.
11. Intelligent data recording system, real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve, export data can be viewed through the computer and print a variety of operations to facilitate process optimization and verification of drying effect.
12. Flexible manual + automatic control, manually used for groping the process, automatically used for mass production.
13. Real-time alarm display and historical alarm query function to facilitate fault diagnosis and equipment maintenance.
14. Setting the user level and password , and decentralizing operation management.

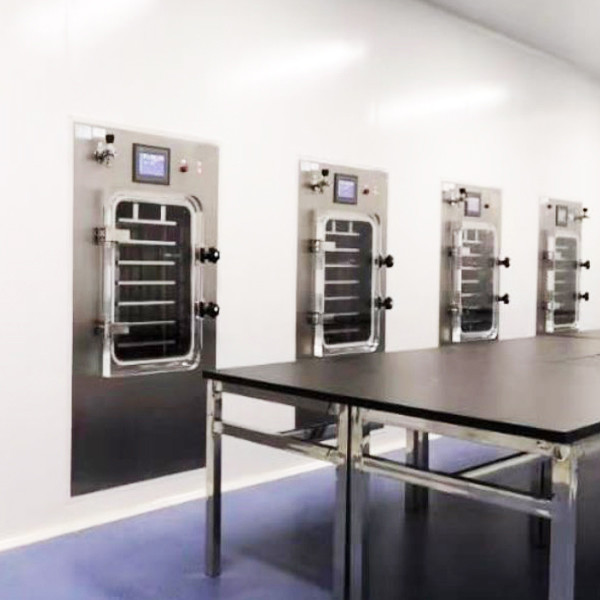

LGJ-200F Full Stainless Steel Vaccum Freeze Dryer With GMP Verification is used in cleanroom.

Lyophilization Sublimation Industrial Lab Freeze Dryer Vaccine Drug 8KG/ Batch 0

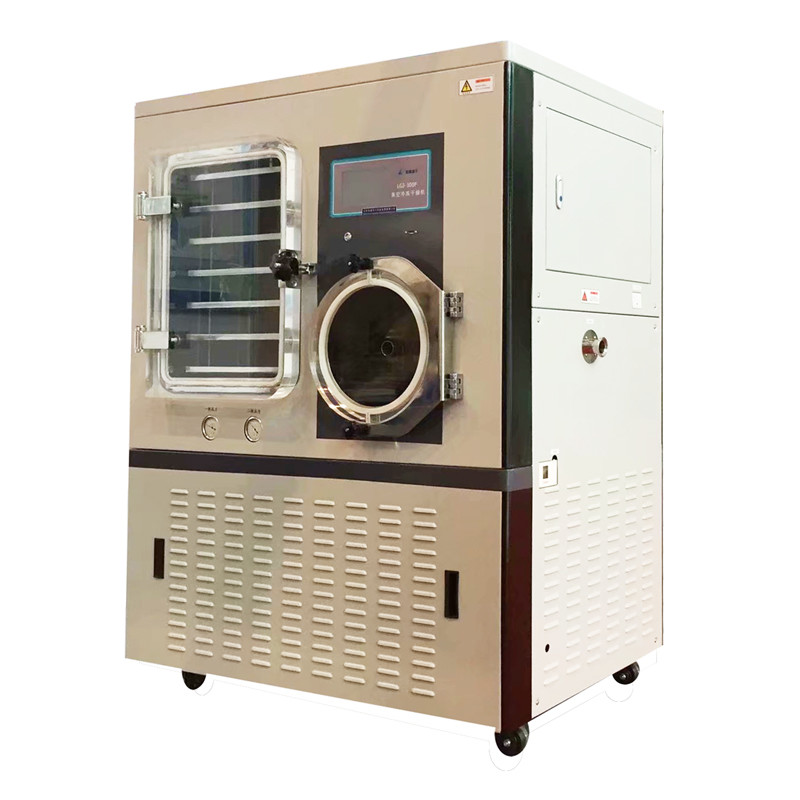

LGJ-20F LGJ-100F Silicon Oil Heating Vaccum Freeze Dryer / Freeze Drying Machine is used for In vitro diagnostic reagents freeze-drying.

Lyophilization Sublimation Industrial Lab Freeze Dryer Vaccine Drug 8KG/ Batch 1Lyophilization Sublimation Industrial Lab Freeze Dryer Vaccine Drug 8KG/ Batch 2

Lyophilization Sublimation Industrial Lab Freeze Dryer Vaccine Drug 8KG/ Batch 3Lyophilization Sublimation Industrial Lab Freeze Dryer Vaccine Drug 8KG/ Batch 4



Excellent Pre-sale service
1. According to your specification request, provide the best price for you.
2. After you confirmed the specification and price, our engineers and sales will make a Official Quotation for you confirm.
3. After our Finance Department confirmed your deposit, we will start manufacture the products for you.
4. Update the progress of production to you in time, to help you know your order details progress
5. After the product manufacture finished, if you need, we will arrange shipping for you. With our professional skill, you just need to pick your products up at the destination place, and don’t need to worry about the shipping at all.


Outstanding After-sale service
1. 12 months guarantee term, and Professional Technical Support.
2. If you have any questions when you use our products, please tell us, we will help you solve the problems in time.
3. If any spare parts have problem after you used it, we can provide it for you, help you solve the problem if anything affect your business.
4. We can also provide engineer to your local place if you need. You just need to bear the Airplane ticket, and accommodation cost.
5. Other relevant service you request.
