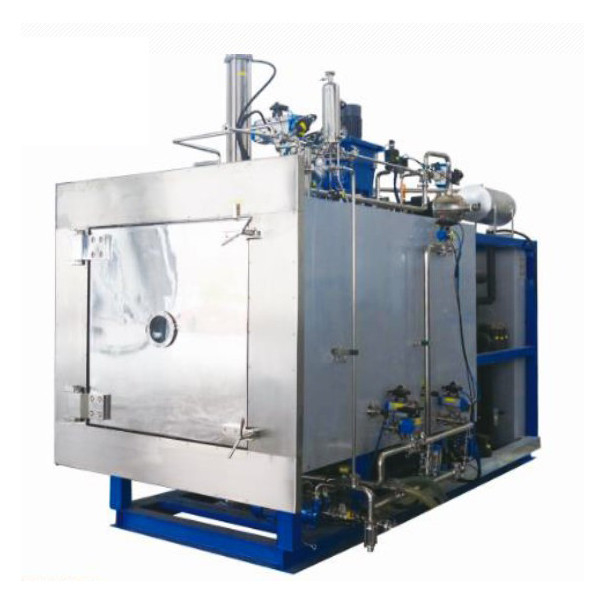

GZLY-5 5M2 Vacuum Freeze Drying Machine CIP SIP Freeze Dried Area

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: GZLY Series
Minimum Order Quantity: 1 set
Price: USD20000-80000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Name: Freeze Dried Machines\Vacuum Freeze Drying Machine Freeze-drying Area: 5.2M2
Liquid Material: 50L Shelf Numbers: 7+1
Cold Trap Temperature: ≤-75℃ (no-loading) Display: English Touch Screen
Power: 3Ph+N+PE, 380V
High Light:

GZLY-5 freeze dryer machine


5M2 Vacuum Freeze Drying Machine


CIP freeze dried machines

GZLY-5 Freeze-dried Area 5M2 Pharmaceutical Medical Vacuum Freeze Dryer CIP SIP Vacuum Freeze Drying Machine



GZLY medical type vacuum freeze dryer series is used for the pharmaceutical factories.
This model is not only suitable for the freeze drying of bulk (liquid, pasty, solid) conventional materials, but also suitable for the drying of the vials materials. When the materials are ready for freeze-drying, they are put into in the vial, then begin freeze drying before the vial's lid unsealed. The capping device compacts the vials' lids after freeze drying to prevent secondary pollution, re-adsorb water, and facilitate long-term storage.


GZLY medical type freeze dryer series are widely used in medical field, such as blood products, vaccines, biological products, and chemical medicines, especially western medicine field. This series models are used in many large-scale pharmaceutical factories. In terms of injections, drug quality can be improved and storage time can be delayed through freeze drying.


Main features
● The shelves are made with unique patented technology, high pressure resistance, high flatness, and good temperature uniformity.
● The cooling speed can be controlled throught The freeze-drying curve optimization control technology in the pre-frozen phase, and at the same time, the sample heating speed and the current vacuum value also can be controlled in the sublimation and analytical drying stages.
● The patented gas diversion design and control technology ,strong ice collecting capacity and high drying efficiency.
● The unique dual-channel sealing technology of the mobile + fixed dual-channel door seals sterilizes the stationary silicone rubber while steam sterilizing.
● Vacuum adjustment during drying operation to avoid foaming and blowing of special materials and improve drying efficiency.
● Industrial-grade embedded touch screen + dedicated SH-HPSC-IV modular controller, stable and reliable system, high control accuracy.
● The professionally designed LYO-CONTROL control system can save multiple sets of process . At the same time, the process can be adjusted in real time during the drying process to improve the process optimization rate.
● Flexible manual + automatic control mode, the manual for groping process, and the automatic for batch production.
● The powerful LYO-MEGA host computer control system can record and save the operating data, curves and alarm records for ten years to improve the traceability of products; at the same time, it is convenient for observation, operation and fault diagnosis.
● User grades and passwords can be set, and operations can be decentralized to meet GMP-related requirements.
● The non-stardarded can be customized as requested.


Main technical datas:

Freeze drying area m2 1.15 2.16 3.24 5.2 10.5
Liquid material
(thickness 10mm)
L 10 20 30 50 100
Shelf number layer 4+1 4+1 6+1 7+1 7+1
Shelf dimensions mm 600*480 600*900 600*900 750*1000 990*1520
Shelf spacing mm 80 80 80 80 80
Temp. range -50~+70 -50~+70 -50~+70 -50~+70 -50~+70
Ice collecting capacity kg/B ≥20 ≥40 ≥60 ≥100 ≥300
Cold trap temp. ≤-75 ≤-75 ≤-75 ≤-75 ≤-75
Cooling mode - water cooled water cooled water cooled water cooled water cooled
Defrosting mode - water soaked water soaked water soaked water soaked water soaked
Ultimate vacuum pa ≤1 ≤1 ≤1 ≤1 ≤1
Power kw 18 21 24 25 58
Φ22 vials pcs 2460 4608 6912 11648 22932
Φ16 vials pcs 4788 8960 13440 22540 42966
Overall weight kg 1500 2600 2800 5000 7000
Steaming water consumption kg/h 60 80 100 130 200
Inpouring water volume l/min 60 75 90 120 160

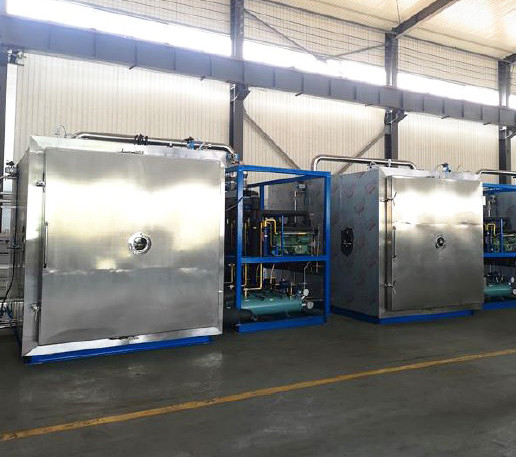

GZLY-5 Pharmaceutical Medical Vacuum Freeze Drying Machine CIP SIP Case

GZLY-5 5M2 Vacuum Freeze Drying Machine CIP SIP Freeze Dried Area 0

GZLY-5 5M2 Vacuum Freeze Drying Machine CIP SIP Freeze Dried Area 1


LGJ-200F Full Stainless Steel Vaccum Freeze Dryer With GMP Verification is used in cleanroom.

GZLY-5 5M2 Vacuum Freeze Drying Machine CIP SIP Freeze Dried Area 2


LGJ-20F LGJ-100F Silicon Oil Heating Vaccum Freeze Dryer / Freeze Drying Machine is used for In vitro diagnostic reagents freeze-drying.

GZLY-5 5M2 Vacuum Freeze Drying Machine CIP SIP Freeze Dried Area 3GZLY-5 5M2 Vacuum Freeze Drying Machine CIP SIP Freeze Dried Area 4

GZLY-5 5M2 Vacuum Freeze Drying Machine CIP SIP Freeze Dried Area 5GZLY-5 5M2 Vacuum Freeze Drying Machine CIP SIP Freeze Dried Area 6

GZLY-5 5M2 Vacuum Freeze Drying Machine CIP SIP Freeze Dried Area 7

FAQ 1. Are you a factory or trading company?

We are a factory.


FAQ 2. Can you supply OEM?

OEM is available.


FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.


FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.


FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.


FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.


FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
