| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | LGJ-50FY, LGJ-100FY |
| Minimum Order Quantity: | 1 set |
| Price: | USD5000-25000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Freeze-drying Area: | 0.5㎡ | Cold Trap Temperature: | ≤-75℃ (no-loading) |
|---|---|---|---|
| Display: | English Touch Screen | Power: | 3Ph+N+PE, 380V |
| High Light: | industrial freeze drying equipment,LGJ-50FY laboratory freeze dryer,freeze drying equipment 6.5KW |
||

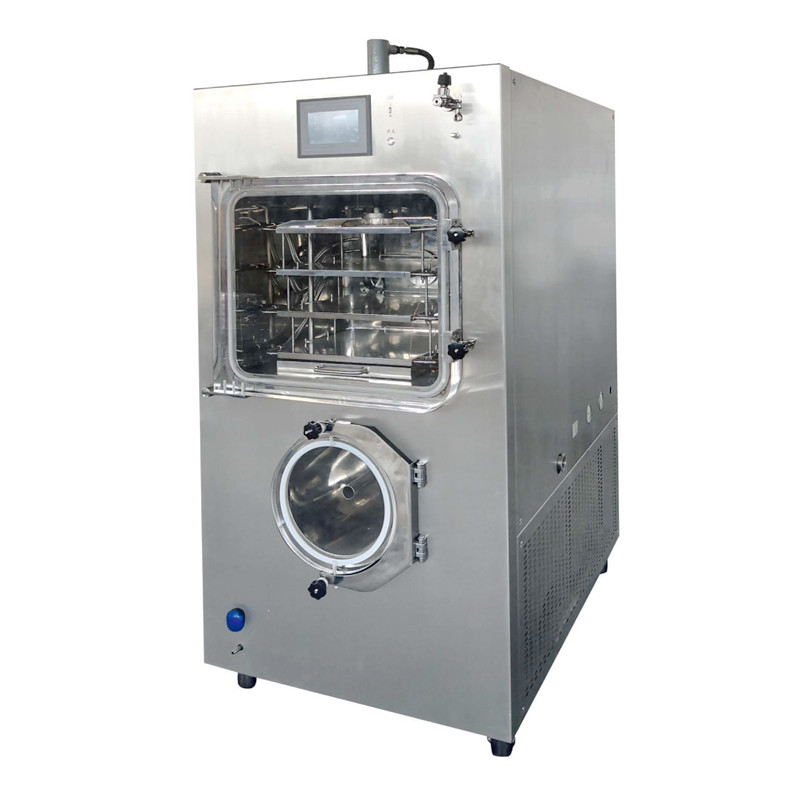

LGJ-50FY Biological Industry Laboratory Freeze Dryer Lyophilizer Freeze Drying Lab Equipment
This LGJ-50FY vacuum freeze dryer machine lyophilizer is designed for pharmaceutical biological laboratory cleanroom use, full stainless steel. It is widely used in many applications of pharmaceutical biological industry, such as in vitro diagnostic reagents, active pharmaceutical ingrediet, bioactive factor, peptide, etc.
And Wuhan Bonnin Technology Ltd has multiple model available. The LGJ-20F/30F/50F/100F/200F silicon oil heating vacuum freeze dryer, in-situ freeze-drying equipment. It changes the tedious operation of the drying process in the past, prevents the contamination of materials, and realizes the automation of drying and sublimation. This model has baffle heating and programmable functions, can memorize the freeze-drying curve, and has a built-in U disk extraction function, which is convenient for users to observe the freeze-drying process of materials.
Normal type A and stoppering type B is optional.
Main technical datas:
|
Model |
LGJ-50F-A |
LGJ-50F-B/ (Stoppering) |
LGJ-100F- A (Standard) |
LGJ-100F-B/LGJ-100FY |
|
|
Freeze Drying Area |
0.7m² |
0.5m² |
1.04 m² |
1.15m² |
|
|
Shelf Temperature |
-50℃~+70℃(no-loading) |
||||
|
Cold Trap Temperature |
<-75℃(no-loading) |
||||
|
Vacuum Degree |
≤5Pa(no-loading) |
||||
|
Water Capture Capacity |
≥10kg |
≥15kg |
|||
|
Cold Trap Volume |
/ |
70L |
/ |
/ |
|
|
Cold Trap Size (Diameter*H) |
, |
Φ400*560mm |
/ |
/ |
|
|
Drying Chamber Size (W*D*H) |
410*510*590mm |
620*510*580mm |
410*580*520mm |
700*590*760mm |
|
|
Shelf & Tray Size |
Shelf: 480*360*18mm |
Shelf: 410*410*18mm |
Shelf: 480*360*18mm |
Shelf: 480*600*18mm |
|
|
Qty. Of Shelf & Tray |
Shelf: 4+1; Tray: 4 |
Shelf: 3+1; Tray: 3 |
Shelf: 6+1; Tray: 6 |
Shelf: 4+1; Tray: 4 |
|
|
Sample Loading Capacity (Liquid) |
7L |
5L |
10L |
11L |
|
|
Height Between Trays |
70mm |
100mm |
|||
|
Tray Temperature Difference |
±1℃ |
||||
|
Refrigerant |
R404A + R23 |
||||
|
Condenser Cooling Mode |
Air cooling |
||||
|
Defrost Mode |
Natural defrosting(optional electric defrosting) |
Electric defrosting |
Electric defrosting |
Electric defrosting |
|
|
Stoppering Mode |
/ |
Automatic |
/ |
Automatic |
|
|
Can Load Vials Qty |
Φ20mm |
/ |
1050 |
/ |
2460 |
|
Φ18mm |
/ |
2058 |
/ |
4788 |
|
|
Φ12mm |
/ |
3075 |
/ |
8624 |
|
|
Vacuum Pump |
8L/S(14.4m³/h) |
15L/S(22m³/h) |
|||
|
Electric Defrosting Consumption |
/ |
1000W |
1500W |
||
|
Silicone Oil Heating Rods Consumption |
1000W |
1600W |
|||
|
Hydraulic Pressure Station Consumption |
/ |
1000W |
/ |
1500W |
|
|
Total Consumption |
5.5KW |
6.5KW |
6.5KW |
7.5KW |
|
|
Power Supply |
AC380V, 50Hz/60Hz(three phase); LGJ-50F-A: AC220V, 50Hz/60Hz(single phase) |
||||
|
Main Body Weight |
600kg |
800kg |
700kg |
1000kg |
|
|
External Size |
1000*850*1420 |
1490*850*1620 |
1170*830*1665 |
1640*1100*1630 |
|
|
Packing Size (W*D*H)mm/ |
Main Body |
1130*980*1620/565kg |
1600*1040*2040/800kg |
1320*990*1855/900kg |
1800*1250*2100/1200kg |
|
Vacuum Pump |
790*330*445(73kg) |
830*370*600(88kg) |
785*455*300(95kg) |
800*500*500(70kg) |
|
| Normal type | LGJ-20F-A | LGJ-30F-A | LGJ-50F-A | LGJ-100F-A | LGJ-200F-A |
| Freeze-dried area | 0.3M2 | 0.4M2 | 0.5M2 | 1.04M2 | 2.25M2 |
| Number of plate | 3+1 | 4+1 | 4+1 | 6+1 | 5+1 |
| Plates space | 70mm | 70mm | 70mm | 70mm | 70mm |
| Plate size | 270*400*15 | 300*340*15 | 360*480*15 | 360*480*15 | 500*900*15 |
| Plate temperature | -50℃ to 70℃ | -50℃ to 70℃ | -50℃ to 70℃ | -50℃ to 70℃ | 50℃ to 70℃ |
| Cold trap temperature | ≤-75℃ | ≤-75℃ | ≤-75℃ | ≤-75℃ | ≤-75℃ |
| Water for cold trap | 4KG/24Hr | 6KG/24Hr | 8KG/24Hr | 15KG/24Hr | 30KG/24Hr |
| Defrost | electric defrost | Natural defrost | Natural defrost | electric defrost | Water soaking |
| Voltage | AC220V/50Hz | AC220V/50Hz | AC380V/50Hz | AC380V/50Hz | AC380V/50Hz |
| Dimension | 800*800*1550 | 880*735*1320 | 960*785*1450 | 1020*780*1700 | 2100*1200*1700 |
Main features:
1. It is our company’s patented freeze dryer. Square warehouse in-situ vacuum freeze dryer, pre-freezing and drying are completed in-situ, easy to operate and good drying effect.
2. The ACRYLIC material is used for the drying chamber door. It is colorless, transparent, and the whole process of lyophilization can be observed.
3. Inflatable (drainage) valves use safety diaphragm valves, which can be connected to an inert gas source, and filled with inert gas after drying to extend material storage time.
4. Patented gas diversion technology, uniform ice catching in cold traps, and strong ice catching capability.
5. Internationally renowned brand compressors, high efficiency, long life, low noise.
6. Separator patented technology and partition temperature fuzzy control technology, the shelf temperature difference is small, the temperature control accuracy is high, and the drying effect is even.
7. The freeze-drying curve optimization control technology can control the cooling rate in the pre-freeze phase, and at the same time, it can control the sample heating rate and the current stage vacuum degree in the sublimation and analytical drying stages.
8. The powerful sensor calibration function ensures the long term accuracy of the measured value.
9. 7-inch true color industrial embedded touch screen + SH-HPSC-II modular controller, high control accuracy, stable and reliable performance.
10. The professionally designed FD-EMB control system can save hundreds of process recipes. Each recipe contains 50 temperature control zones to improve the process optimization rate.
11. Intelligent data recording system, real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve, export data can be viewed through the computer and print a variety of operations to facilitate process optimization and verification of drying effect.
12. Flexible manual + automatic control, manually used for groping the process, automatically used for mass production.
13. Real-time alarm display and historical alarm query function to facilitate fault diagnosis and equipment maintenance.
14. Setting the user level and password , and decentralizing operation management.

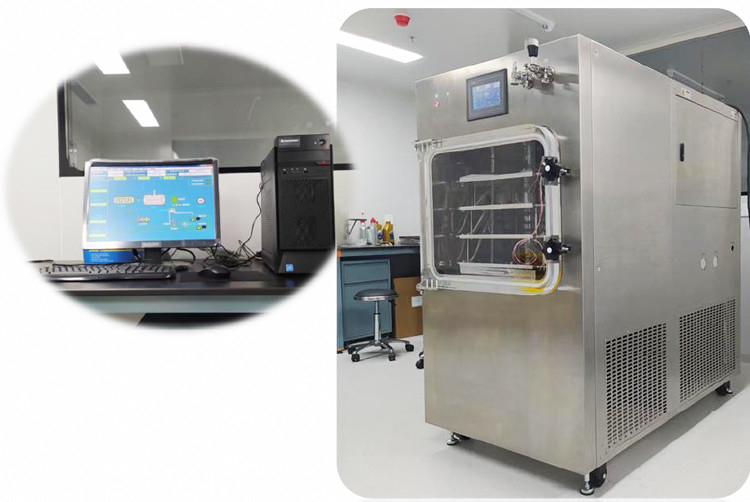

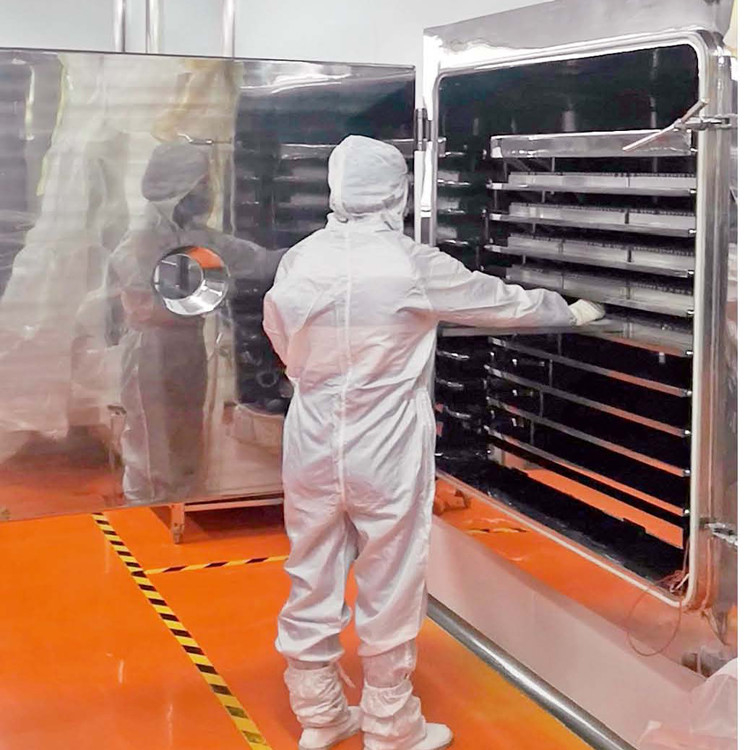

LGJ-200F Full Stainless Steel Vaccum Freeze Dryer With GMP Verification is used in cleanroom.
LGJ-20F LGJ-100F Silicon Oil Heating Vaccum Freeze Dryer / Freeze Drying Machine is used for In vitro diagnostic reagents freeze-drying.
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
