| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | AutoPure-96 |
| Minimum Order Quantity: | 1 set |
| Price: | USD20000-25000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/month |
| Sample Capacity: | 1~96 | Sample Volume: | 50~1000ul |
|---|---|---|---|
| Extraction Time: | 15~40 Minutes / Cycle | Display: | 10 Inch English Touch Screen |
| Sterilization Method: | UV Sterilization Lamp | Plates Type: | 96 Deepwell Plate+magnetic Sleeve |
| High Light: | kingfisher nucleic acid extraction,kingfisher flex rna extraction,RNA PCR Test Instruments |
||
Deepwell Plate Kingfisher Flex Nucleic Acid Extraction System For RNA DNA

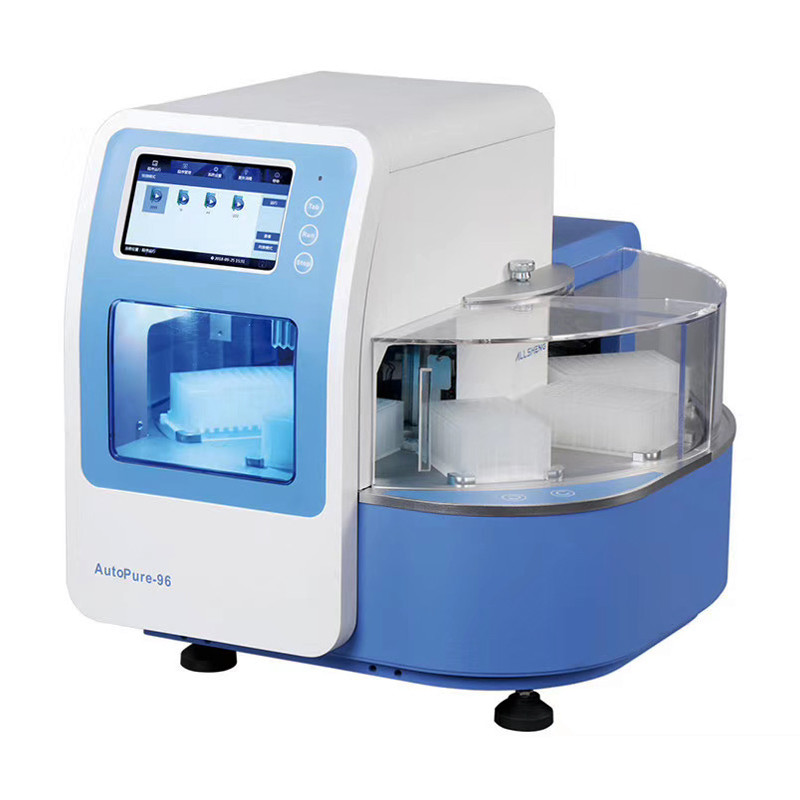

AutoPure-96 BonninTech Fully Automated Nucleic Acid DNA Extraction Machine is an easy-to-use benchtop instrument that automates the nucleic acid extraction process for contamination and impurity testing without hands-on. The instrument using magnetic beads separation technology from blood, cultured cells or bacteria, tissues, cell-free body fluids and plant samples, to purify and extract nucleic acid and protein efficiently and stably.
Operational advantages
High-throughput
AutoPure-96 can process 96x1ml samples simultaneously
2. Open and multiple functions design can be provided more methods for reagent optimization, and also a reliable choice
3. Touch screen interface and easy operation, parameters can be tuned based on experimental requirements
4. Accurate temperature control system ensures stability of purification performance
5. Patent structure design with center rotary table which makes it occupies smaller area of magnetic rod tip comb, which guaranteed stability and liability (Success rate >99.99%)
Antipollution measures
1. Avoid reagent splashing through drip shield plate and beads dried way controlled by software
2. Disposable consumables which can avoid cross contamination
Simple and intelligentized operation

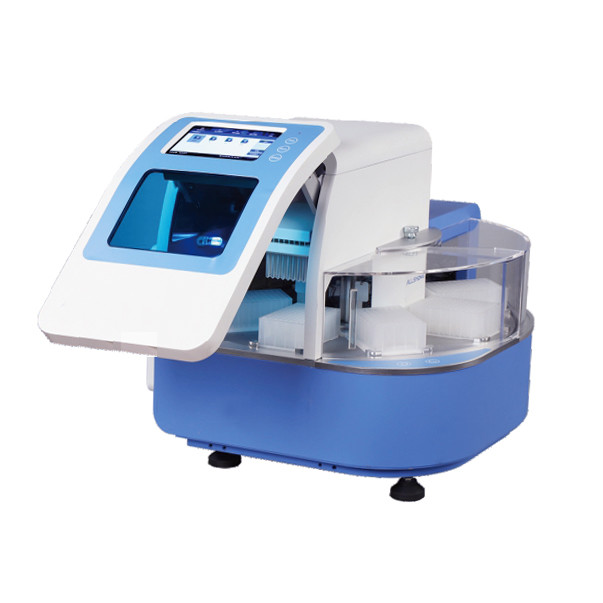

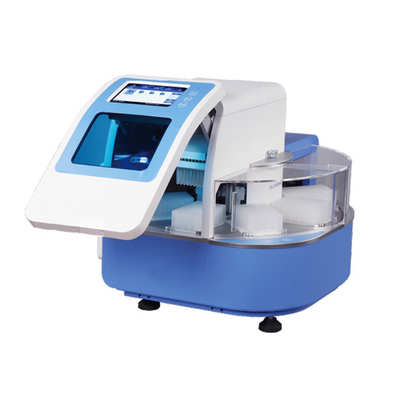

1. Front door can be opened, you can stop it at any moment which is very convenient for reagent optimization and experimental status viewing
2. Start with self-check, equipped with power-off protection
3. 8-plate identification design guaranteed their target position, even though external forces exist
4. Automatic detection in case kit missing
5. With QR code identification, special reagent can be recognized, without setting program or obtaining protocols
Technical Data
| Type | AutoPure-96 |
| Throughput | 1~96 |
| Process volume | 50~1000ul |
| Collection efficiency | >95% |
| Magnetic rod number | 96 |
| Purification accuracy | 100 copy sample positive rate>95% |
| Stability | CV<5% |
| Plate types | 96 Deepwell plate |
| Healting for lysis tube | Ambient temperature~120°C |
| Heating for elution tube | Ambient temperature~120°C |
| Operation | 7 inch color touch screen |
| Extraction steps | Lysis, Sample binding, Washing and elution |
| Storage Capacity | more than 100 programs |
| Protocol Management | Create, edit, delete, protocol mode |
| Pollution Control | UV light |
| Lighting | Yes |
| Extension interface | 4 standard USB port, built-in SD card |
| Exhaust | Fan |
| Power Supply | 450W |
| Dimensions | 560×620×500mm |
| Weight | 54Kg |
Plastics
4x deep well 96 plate 1x 96 deep well tip comb 1x 96 elution plate
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
