| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | DFCR-100 |
| Minimum Order Quantity: | 1 set |
| Price: | USD2000-3800/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Main Machine Weight: | Max 2 Kg Bare Machine, 4 Kg With Package | Excitation Light Source: | Monochrome LED |
|---|---|---|---|
| Collection Method: | Linear Scan | Display: | English Touch Screen |
| Highlight: | fluorescence immunoassay analyzer,dry fluorescence immunoassay analyzer,PCR Test Instruments |
||

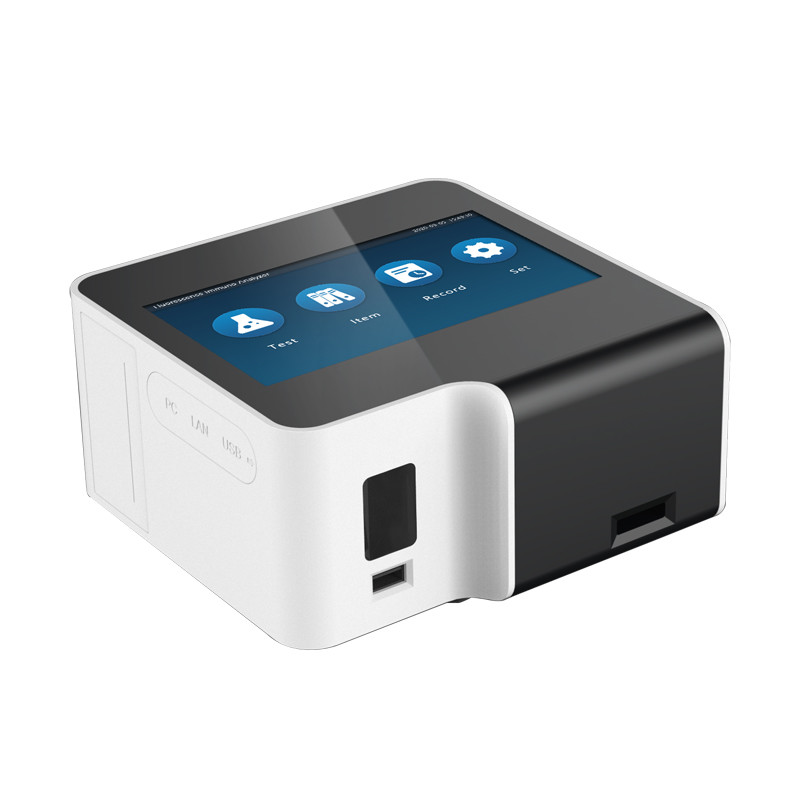

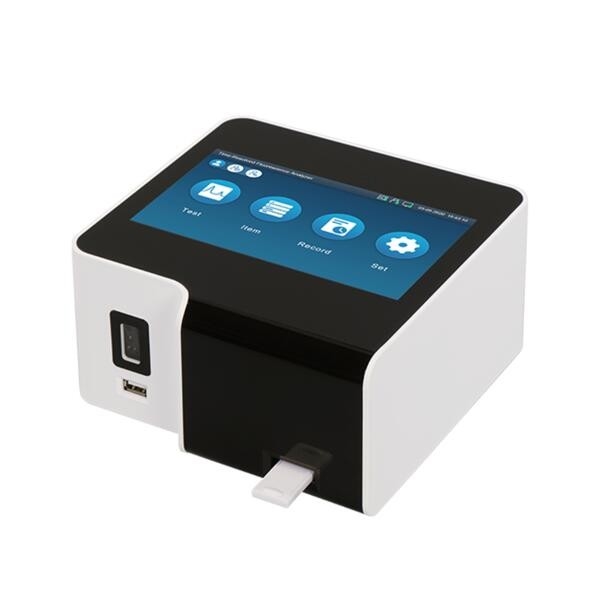

Chemiluminescence Dry Fluorescence Immunoassay Analyzer DFCR-100
DFCR-100 fluorescence immunoassay analyzer is suitable for the detection of fluorescence immunochromatography test strip samples. The collected fluorescent signal is converted into an electrical signal by the photoelectric sensor, so as to calculate the content or concentration of the sample to be tested. While inheriting the advantages of fast, specific and simple immunochromatography technology, the dry fluorescence immunoassay analyzer also effectively improves the sensitivity and accuracy of detection.
Features:
• Has a high-resolution 7-inch touch screen, Chinese and English interface, simple software design, simple and intuitive operation
•Patented optical path design and multi-algorithm data fitting, combined with multiple quality controls, ensure the repeatability and accuracy of instrument detection
• Ultra-fast detection speed, the whole card detection is less than 10s
•Built-in scan code function, easy to scan, the sample information is automatically transferred to the system
•Built-in thermal printer can output results report in real time
• Equipped with large-capacity memory, a single machine can store 10,000 test results, and has the function of result query
•According to customer needs, cooperate with customers to provide medical device registration materials
• Expandable network port, 4G, WIFI, Bluetooth function, realize data network management.
Technical datas:
|
Model
|
DFCR-100
|
|
Display
|
7 inch touch screen
|
|
Dimensions W*D*H Max
|
185mm×186mm×97mm
|
|
Main machine weight Max
|
2 kg bare machine, 4 kg with package
|
|
Excitation light source
|
Monochrome LED
|
|
Excitation spectrum
|
Center wavelength 365nm
|
|
Emission spectrum
|
Center wavelength 613nm
|
|
Collection method
|
Linear scan
|
|
Detection speed
|
<10s/card
|
|
Repeatability
|
Repeatability
|
|
Detector
|
T/C ratio (>0.2) CV≤1%
|
|
Stability
|
≤3%
|
|
Quality control and calibration
|
Our company and third-party quality control products
|
|
Data storage
|
10,000
|
|
Data port
|
Standard configuration: A-USB*2, b-USB, A-USB Optional: Ethernet port, 4G, WIFI, Bluetooth
|
|
Thermal printer
|
Built-in, thermal roll paper 57x20mm
|
|
Scan code function
|
Built-in, one-dimensional code; external two-dimensional code
|
|
Standard curve import
|
ID chip card import
|
|
Software system
|
Linux+QT
|
|
Software upgrade
|
U disk system upgrade and maintenance
|
|
Test sample
|
Serum plasma, whole blood, urine, etc.
|
|
Adapted consumables
|
Reagent card (customizable)
|
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
