96 Deep Well Film Plate Sealer PCR Elisa Microplate Heat Sealer PCR Test Instruments

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: PS-2
Minimum Order Quantity: 1 set
Price: USD1000-2800/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Plate Types: 96 Deep Plate, PCR Plate Heat Sealing Temperature: 80~200℃ (increase Of 1.0℃)
Heat Sealing Time: 0.5~10s (increment 0.1s) Display: LCD English Touch Screen
High Light:

PCR Microplate Heat Sealer


Elisa Microplate Heat Sealer


PCR Test Instruments


96 Deep Well Film Plate Sealer PCR Elisa Microplate Heat Sealer PCR Test Instruments 0

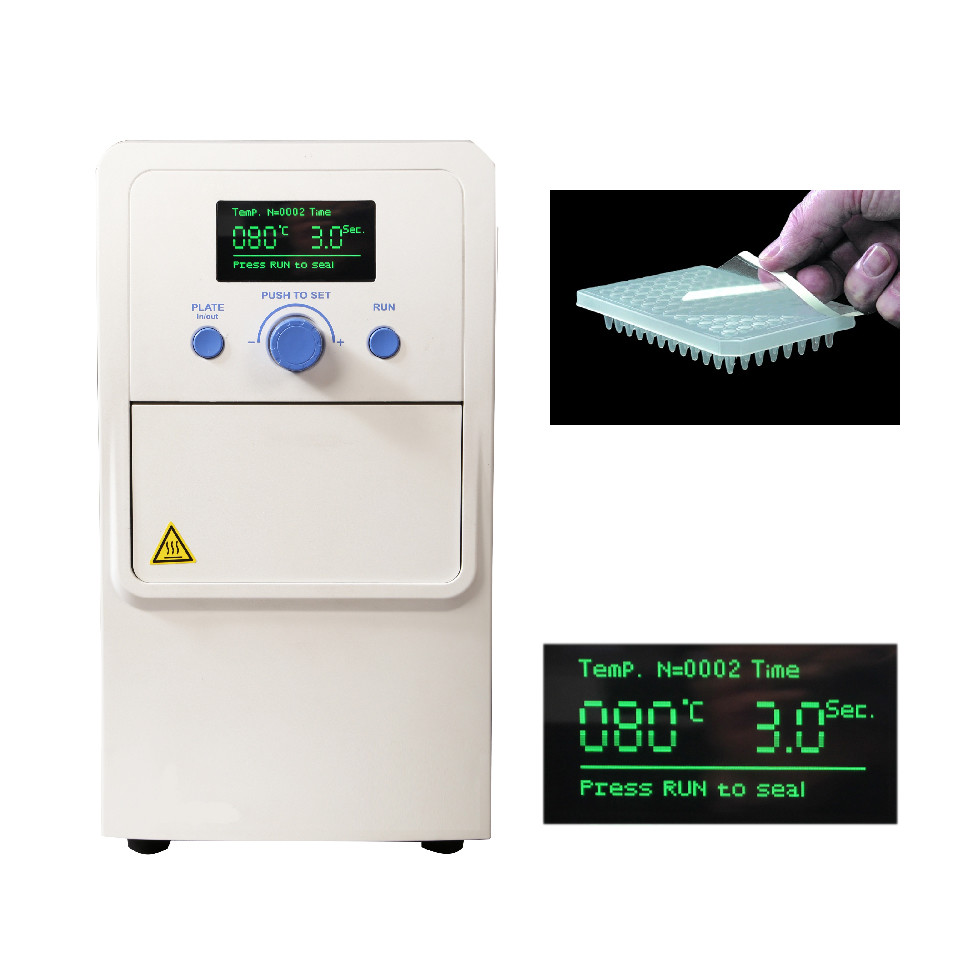

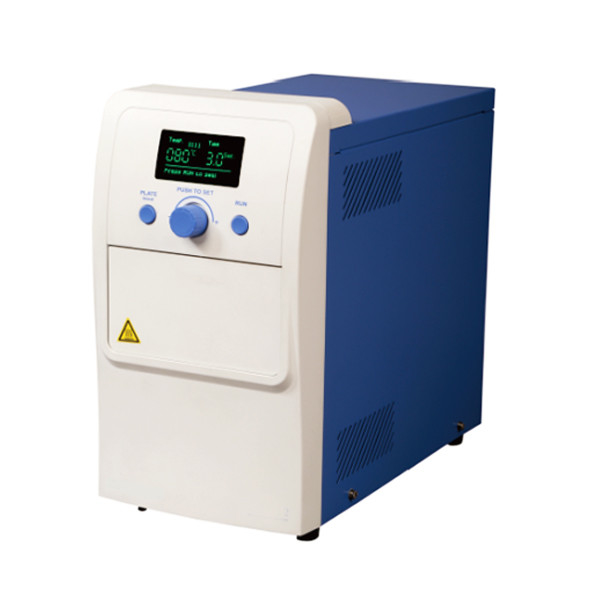

PS-2 Semi-automatic 96 Deep Well Plate Film Sealer Microplate Heat Sealer


The PS-2 Semi-automatic microplate heat sealer has a compact design and is easy to install. It can prevent sample loss and space cross-contamination caused by liquid evaporation and leakage of various microplates during the detection process by heat sealing various special heat sealing films. Rapid heating, real-time display of sealing temperature, automatic detection of microplate height.



1. Rapid heating (up to 170°C within 300 seconds), precise temperature control.
2. Adjustable sealing plate temperature: 80~200℃, real-time temperature display.
3. Simple operation, suitable for a variety of microplates.
4. Temperature, time and pressure are adjustable to ensure stability.
5. Full viewing angle full brightness OLED display, bright display in dark environment.
6. Small footprint: only 370mm deep x 178mm wide.
7. Power supply: AC120V or AC220V.



1. The smart motor controls the access door. If the hand or other objects obstruct the closing access door, the smart motor will reverse to protect the user and the instrument.
2. With a special structure with smart design, the access door can be separated from the instrument, so as to clean and maintain the heating plate


Operation and control:
The Microplate Heat Sealer can be set up for all types of microplates and sealing materials. The sealing time and temperature can be set by the knob:
1. Plate time (in increments of 0.1s) and sealing plate temperature (in increments of 1.0°C).
2. The sealing plate pressure can be adjusted to ensure the stability of the sealing plate.
3. Automatic countdown function.


Energy saving:
1. Auto standby function saves energy. When there is no operation for 60 minutes, the instrument enters standby mode, and the temperature of the instrument is lowered to 60°C, saving energy.
2. When there is no operation within 120 minutes, the instrument will enter the "deep sleep" mode, turn off the display screen, cut off the power supply of the heating body, and only a weak current will be supplied to the core components of the control board. Press any key again, and the instrument will return to the working state.



Model PS-2
Display interface OLED display, high brightness and no dead spots
Heat sealing temperature 80~200℃ (increase of 1.0℃)
Temperature accuracy ±1.0℃
Temperature consistency ±1.0℃
Heat sealing time 0.5~10s (increment 0.1s)
Sealing plate height 9 to 48mm, automatic recognition, no adjustment required
Maximum input power 300W
Dimensions (D×W×H) mm 370×178×330mm
Weight 9.6kg
Adapter plate material PP (polypropylene)/PS (polypropylene)/PE (polyethylene)
Adapter board type Standard assay plates (ELISA plate, cell culture plate) / PCR plate (full skirt, half skirt and no skirt) / deep well storage plate
Suitable sealing film

Foil - polypropylene material / transparent polyester fiber - polypropylene material / transparent polymer material / thin layer transparent polymer material / foil layer material


96 Deep Well Film Plate Sealer PCR Elisa Microplate Heat Sealer PCR Test Instruments 196 Deep Well Film Plate Sealer PCR Elisa Microplate Heat Sealer PCR Test Instruments 2

96 Deep Well Film Plate Sealer PCR Elisa Microplate Heat Sealer PCR Test Instruments 3

FAQ 1. Are you a factory or trading company?

We are a factory.


FAQ 2. Can you supply OEM?

OEM is available.


FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.


FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.


FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.


FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.


FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
