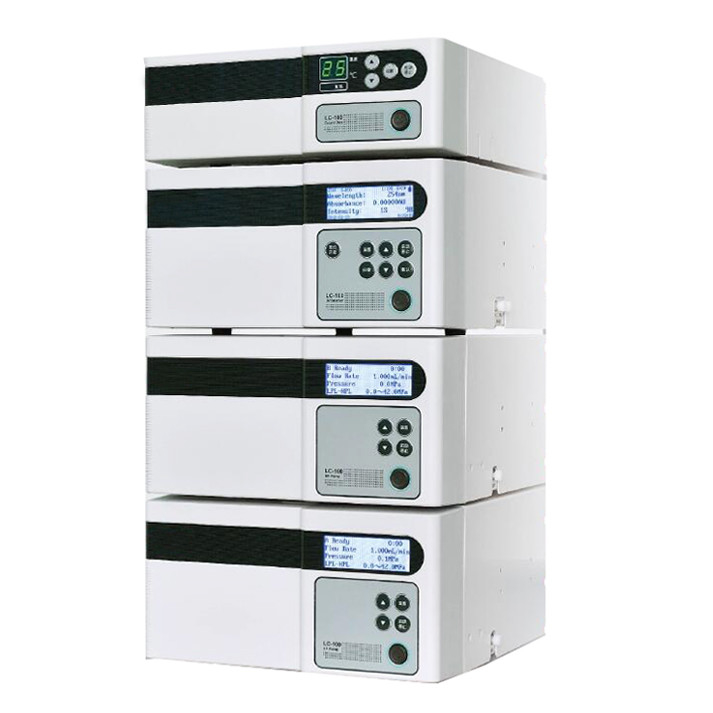

LC-100 HPLC High Performance Liquid Chromatography Instrument 42Mpa

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: ISO, CE
Model Number: LC-100
Minimum Order Quantity: 1 set
Price: USD5000-22800/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Pump Type: Gradient Pump Great Work Pressure: 42Mpa
Flow Setting Range: 0.001-10.00 ML/min, In 0.001 ML Increments Display: English LCD Screen, PC Control
High Light:

LC-100 HPLC high performance liquid chromatography


42Mpa high performance liquid chromatograph


high performance liquid chromatography instrument

LC-100 HPLC High Performance Liquid Chromatography Instrument



Main feature:

1. Networked, remote control and management

2. Intelligent and humanized, realize man-machine dialogue

3. Automation to achieve quasi-unmanned operation

4. High precision and high stability

5. Rich configuration


Technical datas:

LC-100 HPLC System

Flow rate range: 0.001-10.00 mL/min, in 0.001 mL increments
Flow accuracy: ≤±0.1% (1.00ml/min, H2O,R.T.,8.5MPa); Flow precision: RSD≤0.06% (1.00ml/min, H2O,R.T.,8.5MPa)
Maximum pressure: 6090 psi, 42Mpa; Pressure accuracy: ≤±1.0%; Pressure pulsation: ≤0.1 MPa

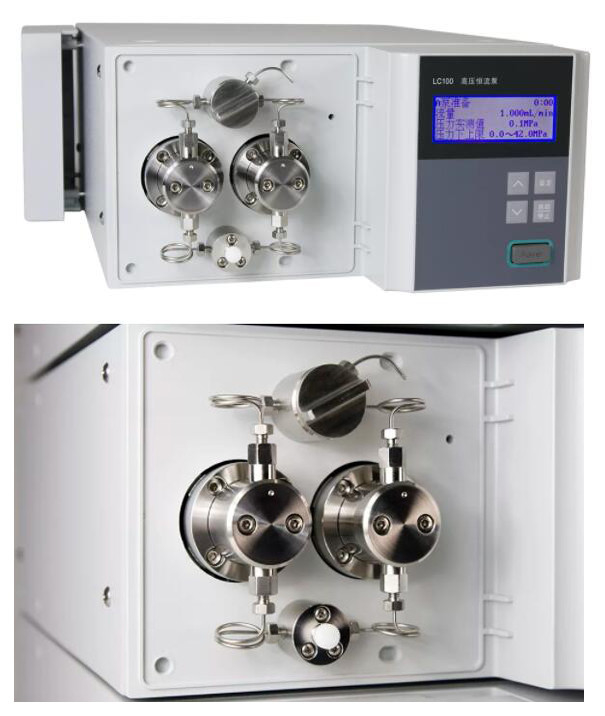

P100 C Dual-piston reciprocating parallel
Flow Precision: 0RSD<0.06%; Fluctuation: 0.1MPa ; Mixing Accuracy :±1%;Mixing Precision:±0.2%;

Power Supply: 110V / 220V

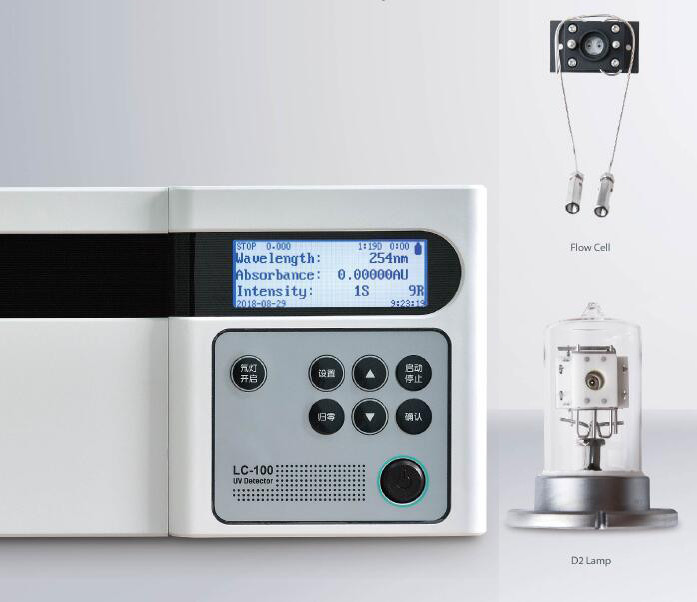

UV100 Detector : Wavelength Range: 190-700 nm
Flow cell volume: 8nm; Wavelength Accuracy: ±1 nm ; Wavelength Precision: <0.1nm;
Minimum Detectable Concentration: 5×10-9 g/mL; Noise :±0.25×10-5AU(Static)/±1×10-5AU(dynamic, under specified requirements);
Drift :≤0.4×10-4AU/h(Static)/±2×10-4AU/h (dynamic, under specified requirements);

Power Supply: 110V / 220V ;

WS-100 Chromatographic Data-processing Workstation

Signal Transmission Form :Full digital signal;
Operation Mode:Reflecting and monitoring the operation of instruments’ each unit (editing gradient

program for changing wavelength scanning, setting event procedure, spectrum scanning, spectrogram comparison, etc.)
Original Series C18 5μm ID4.6×150mm

Manual Injector Rheodyne 7725i
Manual injection valves include manual injector, The standard 20ul quantitative ring can be extended to -1000ul,

100ul flat head injection needle, injector bracket.

Column capacity: Three columns, up to 10mm internal diameter, up to
300mm length with guard column
Temperature range: ambient+5.0 to 80℃, settable in 0.1℃ increments
Temperature accuracy: ≤±2℃

Temperature stability: ≤±0.1℃


LC-100 HPLC High Performance Liquid Chromatography Instrument 42Mpa 0

LC-100 HPLC High Performance Liquid Chromatography Instrument 42Mpa 1

LC-100 HPLC High Performance Liquid Chromatography Instrument 42Mpa 2LC-100 HPLC High Performance Liquid Chromatography Instrument 42Mpa 3

LC-100 HPLC High Performance Liquid Chromatography Instrument 42Mpa 4

FAQ 1. Are you a factory or trading company?

We are a factory.


FAQ 2. Can you supply OEM?

OEM is available.


FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.


FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.


FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.


FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.


FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
