EX1600 Low Pressure Liquid Chromatography Instruments High Performance OEM ODM

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: ISO, CE
Model Number: EX1600
Minimum Order Quantity: 1 set
Price: USD5000-22800/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Pump Type: Parallel Pump Great Work Pressure: 42Mpa
Flow Setting Range: 0.001~9.999mL/min Display: English LCD Screen, PC Control
High Light:

EX1600 Chromatography Instruments


low pressure liquid chromatography oem


ODM High Performance Liquid Chromatograph

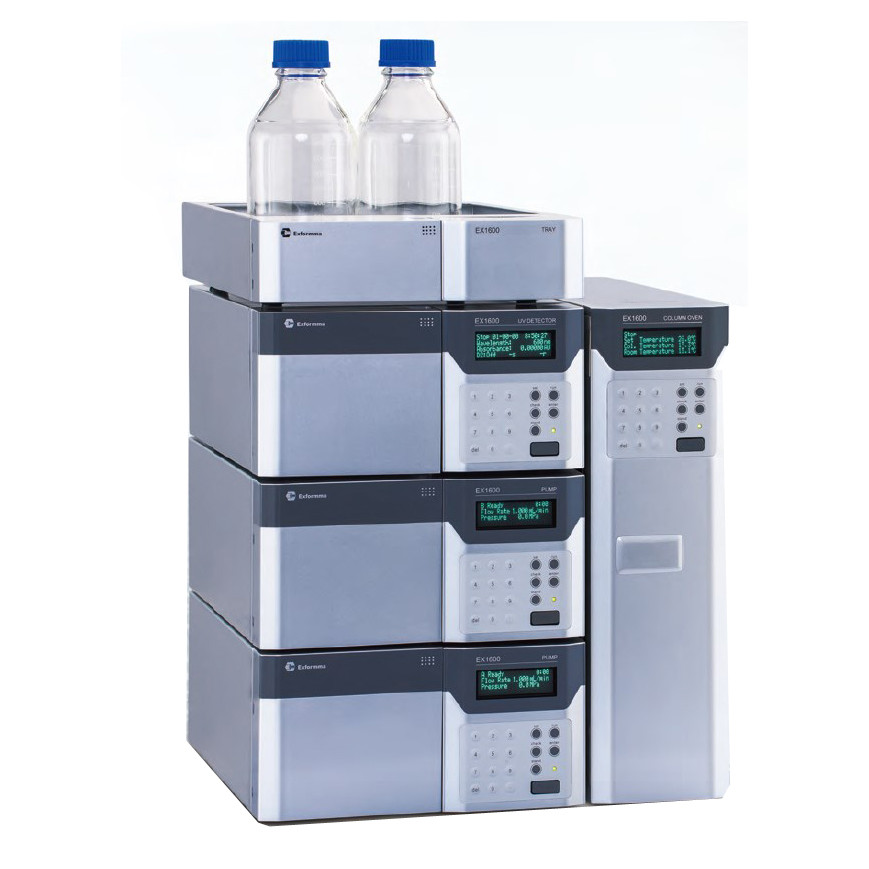

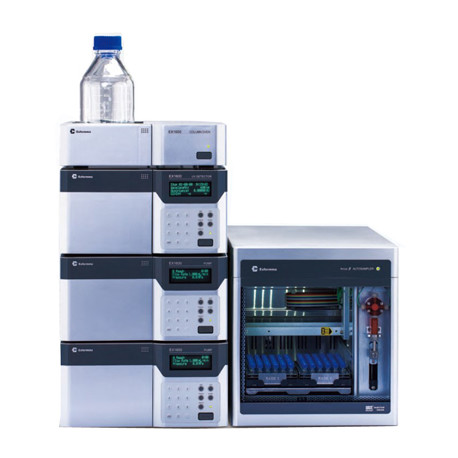

EX1600 Low Pressure Gradient Quaternary High Performance Liquid Chromatograph HPLC System



EX1600 High Performance Liquid Chromatography

Configuration: UV detector, quaternary low pressure pump unit (with automatic online post-column cleaning, online degasser), column thermostat, solvent tray. (According to customer needs, the configuration will be slightly different)


Product description:

The microcomputer technology adopted by EX1600 HPLC can realize various functions of networking, intelligence and automation without a central controller, and each unit can coordinate and interact.


Main feature:

1. Networked, remote control and management

2. Intelligent and humanized, realize man-machine dialogue

3. Automation to achieve quasi-unmanned operation

4. High precision and high stability

5. Rich configuration



EX1600 utilizes modern network technology to connect with the user's Intranet through the LAN interface of the instrument, which can easily realize remote control and information resource sharing.



EX1600 fully realizes man-machine dialogue and monitors the running status of the instrument in real time. Make judgments on potential and existing failures and provide online solutions. In addition, the service life of the whole instrument and unit components is evaluated, and the parts can be replaced in time.

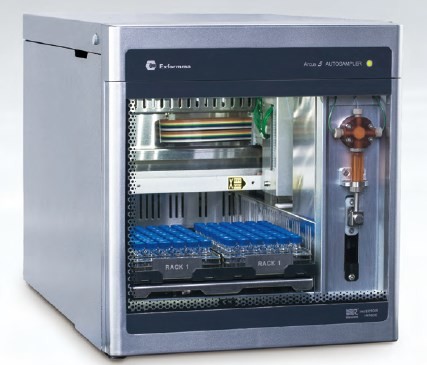

Through the high-precision 1600 automatic sampling system, the automatic sampling is realized, and the cross-contamination of the sample is suppressed to a great extent.

Provides sample analysis accuracy. EX1600 has a self-verification function, which regularly checks the operational verification of each unit, and manages and maintains information.

The precision and stability of the product are greatly improved, so that the small peaks that were not easy to detect are also clearly visible. Provide 2000 hours long-life deuterium lamp, so that users can use it more at ease. The automatic post-column cleaning function effectively reduces the occurrence of failures when using salt-containing mobile phases for analysis. Even a small volume tray has the function of switching mobile phases, which is convenient for users.

A variety of configurations, according to the application analysis of various industries, are convenient for customers to choose.

Pump Parts Specifications
  Model 1600P 1600PQ 1600PREP
Pump type Parallel pump Quaternary low pressure gradient pump Semi-preparation pump
Great work pressure 42Mpa 20Mpa
Flow setting range 0.001~9.999mL/min 0.01~40mL/min
Flow rate RSD<0.06%
Pressure pulsation 0.1Mpa 0.2Mpa
Power supply 110V/220V 110V/220V


Detector Specifications
  Model 1600 UV 1600 UV II
Light source Deuterium lamp Deuterium lamp + tungsten lamp
Wavelength range 190~700nm 190~900nm
Wavelength indication error ≤1nm
Wave length ≤0.1nm
Baseline noise ±0.2×10-5AU
Baseline drift 0.3×10-4AU
Flow cell volume 8μL
Power supply 110V/220V


Column oven Specifications
  Model 1600 CO I 1600 CO II (with cooling function)
Temperature control range 10℃ to 80℃ above room temperature 10℃ to 80℃ under room temperature
Temperature setting range 4℃~85℃
Temperature control accuracy 0.1℃
Power supply 110V/220V


EX1600 parameters.png

EX1600 hplc system.JPG


EX1600 Low Pressure Liquid Chromatography Instruments High Performance OEM ODM 2EX1600 Low Pressure Liquid Chromatography Instruments High Performance OEM ODM 3

EX1600 Low Pressure Liquid Chromatography Instruments High Performance OEM ODM 4

FAQ 1. Are you a factory or trading company?

We are a factory.


FAQ 2. Can you supply OEM?

OEM is available.


FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.


FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.


FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.


FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.


FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
