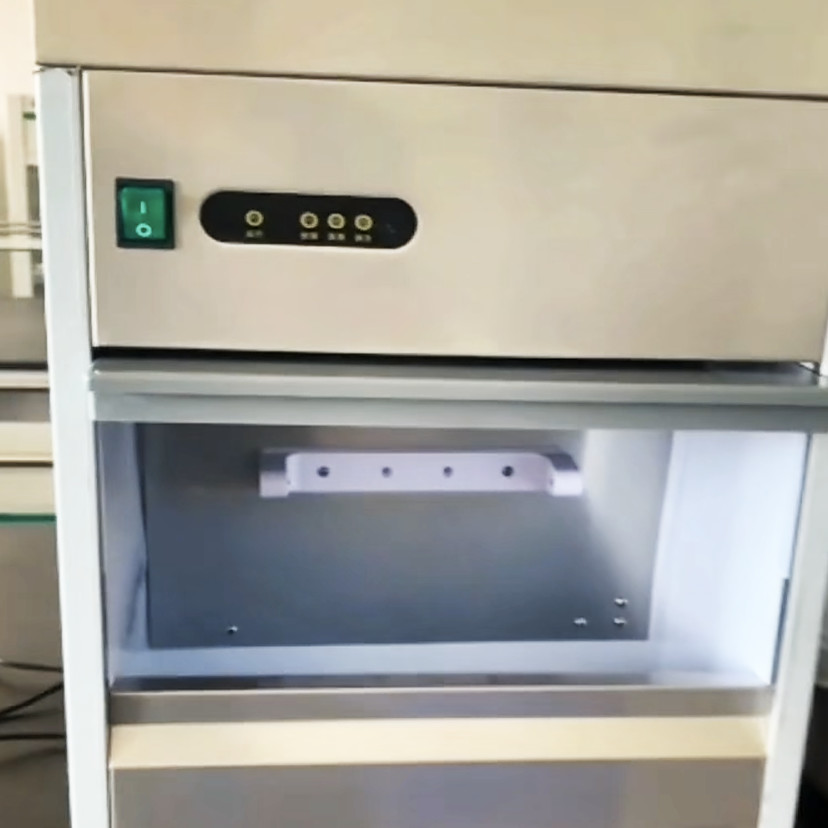

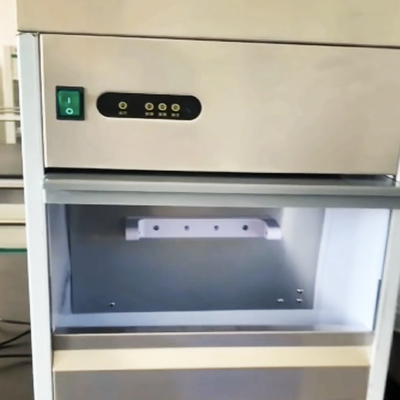

R134a Cooling Lab Ice Maker PCR Test Instruments Anti Corrosion Durable

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: IMS series
Minimum Order Quantity: 1 set
Price: USD500-2800/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Ice Making Capacity: 20kg~200kg Cooling: R134a
Display: English Digital Display
High Light:

PCR lab ice maker

,

lab ice machine R134a

,

PCR Test Instruments ice maker

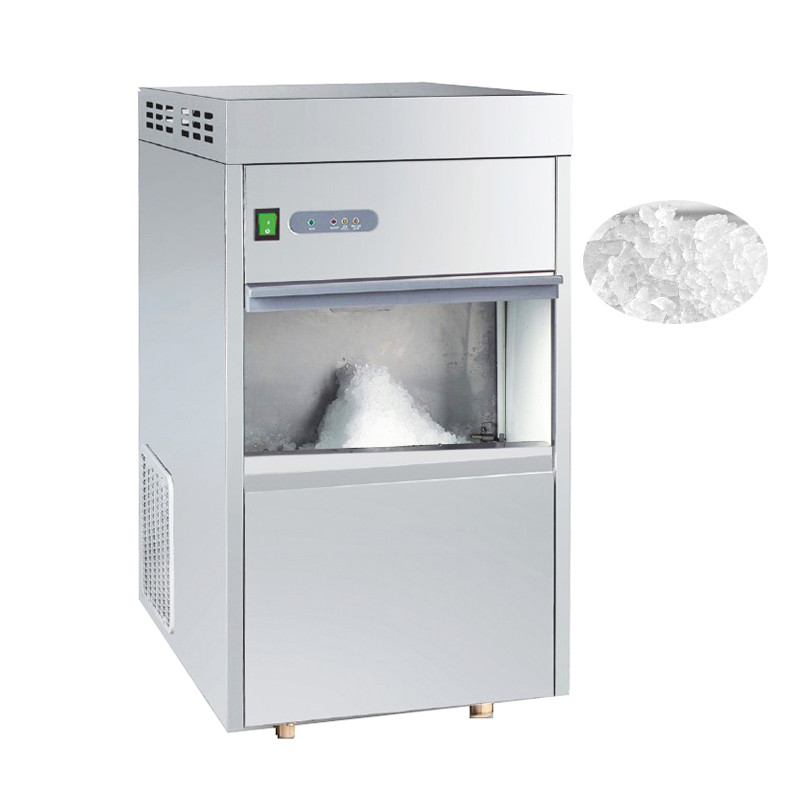

IMS-50 IMS-150 PCR Laboratory Use Automatic Snow Flake Ice Maker Machine



Features:

1) High-quality stainless steel casing, anti-corrosion and durable, independent and integrated structure, compact and simple, saving space.
2) The heat insulation layer of the cabinet is fluorine-free foaming, and the heat preservation effect is good. The inner tank is fluorine-free and antibacterial, which is energy-saving and environmentally friendly.
3) Adopt high-quality and high-efficiency R134a fluorine-free compressor, the parts are tested by SGS company and meet the requirements of EU RoHs environmental protection directive.
4) All electrical safety parts used have “TUV” or “VDE” safety certification, and the certified parts are safe and reliable.
5) The ice making process is controlled by a full computer program, imported computer chip, reliable control and stable operation.
6) The Haitec secondary gear reducer with Italian technology has low noise and stable and reliable operation. The top of the ice machine is equipped with a cooling hole and a fan to ensure reliable operation of the reducer motor under high temperature and harsh conditions.
7) The patented technology of the diaphragm-type ice-making evaporator has high refrigeration efficiency and large ice production.
8) Spiral hob squeeze-type ice making type, compact structure, automatic separation of ice and water. The optimized design of the ice blade makes the ice shape small and practical.
9) Unique water tank floating ball inlet system ensures no residual water, no deicing process, no water loss, no residual water, water saving and energy saving.
10) There are ice stop display, water shortage display, over-cooling protection display, fault warning display and other protective shutdown functions. When the ice machine is full of water shortage, it will automatically stop. When the incoming call comes in, it will automatically turn on, with automatic memory recovery.
11) The ice shape is amorphous and small granular snowflake crushed ice. The ice shape is small, it can penetrate into narrow gaps, the cooling speed is fast, the ice bath effect is good, and it is designed for the laboratory.
12) The front part is equipped with power switch and function indicator light. The detailed and detailed operation instructions are intuitive and convenient to use. All safety indicators are passed through the electrical performance test, which is safe and secure.
13) Long-term ice-making performance detection and debugging before leaving the factory guarantees excellent performance.
14) Snowflake-shaped ice is widely used in hospitals, schools, laboratories, scientific research institutes and other places as well as supermarket food preservation, fishery fishing refrigeration, medical applications, chemical, food processing and other industries.

Technical datas:

Model IMS-20 IMS-30 IMS-50 IMS-85 IMS-100 IMS-150 IMS-200
Ice making capacity 20kg 30kg 50kg 85kg 100kg 150kg 200kg
Product size 300X493X547mm 300X493X547mm 380X543X722mm 548X611X883mm 548X611X883mm 635X611X945mm 680X641X1102mm
Packing size 377x571x595mm 377x571x595mm 457x621x770mm 625x690x932mm 625x690x932mm 712x690x994mm 757x720x1150mm
Weight 32kg 32kg 40kg 57kg 58kg 70kg 85kg
Capacity per day 20kg/day 30kg/day 50kg/day 85kg/day 100kg/day 150kg/day 200kg/day
Power 220V/50HZ 220V/50HZ 220V/50HZ 220V/50HZ 220V/50HZ 220V/50HZ 220V/50HZ
Cooling R134a R134a R134a R134a R134a R134a R134a
Ice storage quanity 10kg 10kg 15kg 25kg 25kg 35kg 55kg
Doors 1 1 1 1 1 1 1
Production per hour 0.83kg 1.25kg 2.08kg 3.54kg 4.2kg 6.25kg 8.33kg
Ideal operating temperature 15℃ 15℃ 15℃ 15℃ 15℃ 15℃ 15℃
Consumption 180w 180w 280w 420w 420w 685w 805w



R134a Cooling Lab Ice Maker PCR Test Instruments Anti Corrosion Durable 0R134a Cooling Lab Ice Maker PCR Test Instruments Anti Corrosion Durable 1

R134a Cooling Lab Ice Maker PCR Test Instruments Anti Corrosion Durable 2R134a Cooling Lab Ice Maker PCR Test Instruments Anti Corrosion Durable 3

R134a Cooling Lab Ice Maker PCR Test Instruments Anti Corrosion Durable 4

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
