L9 Double Beam UV VIS Spectrophotometers 8 Inch Touch Screen

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: L9
Minimum Order Quantity: 1 set
Price: USD2000-8800/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Photometry: Double Beam Monochromator Type: Czerny-Turner Spectrum Bandwidth: 0.5nm,1nm,2nm,4nm,5nm
Focal Length: 200mm Display: 8-inch Color Touch-screen
Highlight:

L9 Double Beam UV VIS Spectrophotometer

,

UV VIS Spectrophotometer 8 inch

,

Touch Screen uv vis spectrophotometers

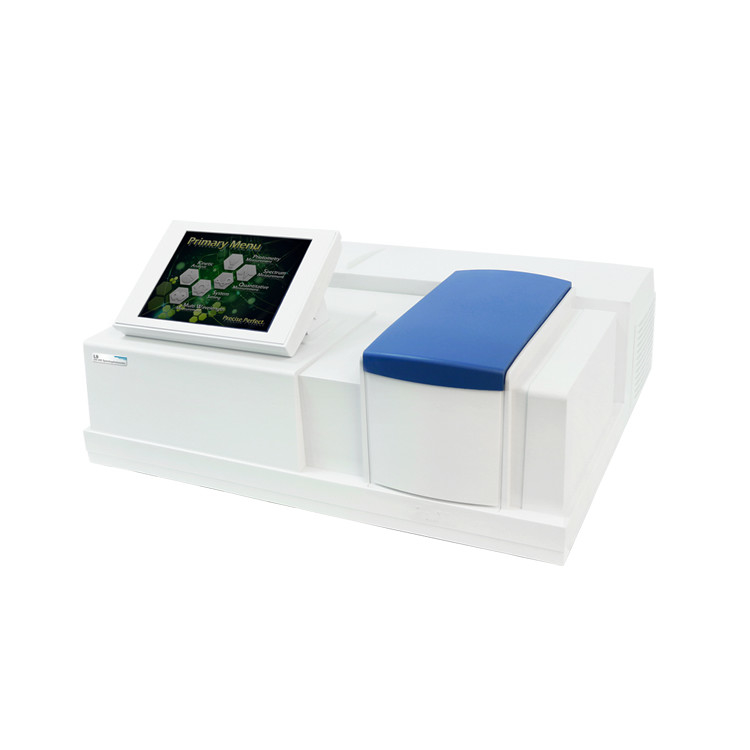

L9 Touch Screen Double Beam UV-VIS Spectrophotometer



L9 double beam UV-Vis spectrophotometer is a new model, with 5-speed adjustable bandwidth, ARM chip control and data processing, 8-inch color touch-screen which displays menu and spectral curve and can analyze spectrum test data. It's quite easy for user and computer interaction. The instrument can perform following operations, including photometry, automatic scanning spectral measurement, quantitative analysis, dynamic analysis, and multi-wavelength measurement.




The instrument serves as the basic equipment for quality control, technical evaluation and scientific research, and can be widely used in susceptibility testing, medicine and health, biochemistry, environmental monitoring, commodity inspection, petrochemical and other fields.



Main Features

● New optical platform, enabling the host machine with excellent optical properties, metering performance, low stray light and noise, high metering accuracy and stability.
● Unique system of deuterium and tungsten lamp installation, facilitating the light source to automatically switch to the best position, and allowing users to operate the instrument, replace the light source and maintain the instrument more conveniently, accurately and safely.
● Sophisticated hardware and software design, empowering the instrument with powerful spectral data processing and storage capabilities, and performing following functions,including automatic scanning of measured spectrum, multi-wavelength (1-3 λ) measurement, kinetic measurement, 1-3 curve fitting, 1-4 derivative spectra, spectra printing and storage and data analysis.
● 8-inch color touch-screen, with a good user-machine interface, easy-to- operate.
● USB communication port.




Specifications

Photometry: Double Beam

Monochromator Type: Czerny-Turner

Focal Length: 200mm

Grating: 1600 lines/mm

Detector: Silicon Photocell

Spectrum Bandwidth: 0.5nm,1nm,2nm,4nm,5nm

Wavelength Setting: 8-inch color touch-screen

Wavelength Range: 190-1100nm

Wavelength Accuracy: ±0.3nm(actual test ±0.2nm )

Wavelength Repeatability: ≤0.1nm

Scanning Speed: Fast-Medium-Slow

Stray Light : ≤0.02%T( at 220nm NaI, 360nm NaNo2 )

Photometric Range: 0.0-200.0% T

-0.301-4.000 A

0.000-9999 C

Photometric Accuracy: ±0.3% T

±0.002 Abs (0-0.5A)

±0.004 Abs (0.5-1A)

Photometric Repeatability: ≤0.15% T

0.001 Abs (0-0.5A)

0.002 Abs (0.5-1A)

Baseline: ≤±0.0008 A(200-1090nm)

Noise: 100%(T)noise≤0.1%(T) , 0%(T)noise≤0.02%(T)

Drifting: ≤0.004 Abs/h (250nm and 500nm after 2h warm up)

COM Port: USB

Light Source: Hamamatsu D2 lamp,Osram halogen tungsten lamp

Power: AC220V±22V 50Hz±1Hz, 200W

Packaging Size: 730mm X 630mm X 450mm 0.21M3 42.5kg



Standrad Accessories

● Operation manual 1
● Glass cuvette 1cm 4pcs
● Quartz cuvette 1cm 2pcs
● Power cable 1
● Fuse 2pcs

● Cuvette holder 10mm




Optional Accessories

● UV WIN8 Spectrum data processing software
● Thermal Plotter
● Cuvette holder 100mm
● Cuvette holder 50mm



L9 Double Beam UV VIS Spectrophotometers 8 Inch Touch Screen 0L9 Double Beam UV VIS Spectrophotometers 8 Inch Touch Screen 1

L9 Double Beam UV VIS Spectrophotometers 8 Inch Touch Screen 2

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
