CIC-D100 21kg Portable Ion Chromatography System Analysis OEM

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: CIC-D100
Minimum Order Quantity: 1 set
Price: USD8000-15800/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Type: High-pressure And Low-pulse Two-piston Tandem Advection Pump Maximum Pressure: 42MPa
Operation Pressure: 100-10000 Mbar (150psi) Display: English Touch Screen
Highlight:

CIC-D100 portable ion chromatography

,

21kg ion chromatography analysis

,

ion chromatography system oem

CIC-D100 IC Chromatograph Laboratory Equipment Ion Chromatography System

The newly upgraded CIC-D100 ion chromatograph can easily test anions, cations and other polar substances in different matrix samples, and simultaneously separate ions with concentrations that differ by 4 orders of magnitude. The test results are accurate and reliable. The addition of functional highlights such as one-key switch on and off takes the user experience to a higher level. It is suitable for third-party testing institutions, enterprises, environmental protection, chemical industry, mining and metallurgy and other fields.



Features:

Simple, economical and practical
+ CIC-D100 ion chromatograph has been accepted by many customers. Based on the latest needs of users, we produced a newly upgraded CIC-D100.
+ Compared with the previous one, it is more accurate and reliable. The new IC not only can detect anions, cations and other polar substances in different matrix samples, but also separate ions with four orders of magnitude difference.
+ Intelligent maintenance function is added to give users a better experience. It is suitable for third-party testing institutions, enterprises, environmental protection, chemical industry, mining and metallurgy and other fields.

Technology advantage:
+ Built-in circulating 3D constant temperature technology Temperature stability time is less than 30 mins, ensuring the accuracy and reliability of test data.

+ The world's leading full-range series of ion chromatographic columns.
+ High efficiency, large capacity of the columns for detecting ions of varied compositions.
+ Self-Regenerating Electrolytic Micro-membrane Suppressor High pressure resistance, small dead volume, highly responsive to signals.
+ Auto-range Conductivity Detector
+ It can directly detect the signal from ppb to ppm without adjusting the range; Only one conductivity detector can detect anions and cations.
+ Observatory intelligent workstation
+ Integrated control; With intelligent start-up, shutdown andmaintenance functions; Compatible with a variety of instruments; Customized images.

Technical Parameter:
+ Built-in circulating 3D constant temperature technology Temperature stability time is less than 30 mins, ensuring the accuracy and reliability of test data.
+ The world's leading full-range series of ion chromatographic columns.
+ High efficiency, large capacity of the columns for detecting ions of varied compositions.
+ Self-Regenerating Electrolytic Micro-membrane Suppressor High pressure resistance, small dead volume, highly responsive to signals.
+ Auto-range Conductivity Detector
+ It can directly detect the signal from ppb to ppm without adjusting the range; Only one conductivity detector can detect anions and cations.
+ Observatory intelligent workstation
+ Integrated control; With intelligent start-up, shutdown andmaintenance functions; Compatible with a variety of instruments; Customized images.








Ion
Chromatograph ic Pump
Type High-pressure and low-pulse two-piston tandem advection pump
Maximum Pressure 42MPa
Pressure Display
Accuracy
≤0.1MPa

Flow Stability
(0.2-0.5)mL/min≤3%; (0.5-1.0)mL/min≤2%;
>1.0mL/min≤2%;

Allowable Deviation of Flow
(0.2-0.5)mL/min , ±5%; (0.5-1.0)mL/min, ±3%; >1.0mL/min, ±2%;
Flow Range 0.001~9.999mL/min
Pressure Pulse ≤0.5%
Flow Precision ≤0.1%
Flow Accuracy ≤0.1%
Maximum Pressure 35MPa





Manual
Sample
Injector
External Diameter of the Tube 1/16"
Contact Material of the Rotor PEEK
Contact Material of Medium PEEK/Ceramics

Column
Heater
Operating Temperature Range 20~60℃(68~140℉)
Controlling Temperature Accuracy ±0.01℃
Allowable Deviation of
Column Heater’s Temperature
±1℃
Temperature Stability ≤0.05℃/h










Conduction
Detection System
Type Constant temperature
auto-range conductivity detector
Cell Volume ≤0.8μL
Detection Range 0~35000μS/cm
Detection Resolution ≤0.0020nS/cm
Output Voltage -6000~+6000mv(adjustable)
Electronic Noise 0.02nS
Baseline Noise ≤0.001μS/cm
Baseline Drift ≤0.02μS
Operating Temperature Range Room temperature,+5℃~60℃(41 ~140℉)
Controlling Temperature Accuracy ±0.001℃
Temperature Compensation 1.7 %/℃
Maximum Pressure 10.0MPa
Linear Range ≥103
Instrument Linearity ≥0.999
Quantitative Repeatability ≤1.0%
Qualitative Repeatability ≤0.5%

Minimum Detectable Concentration
Cl-≤0.0005ug/mL;
Li+≤0.001ug/mL; BrO3-≤0.001ug/mL;


Flow System
Plastic Flow Path Made of PEEK materials

Six-way Valve
PEEK material, pressure 5000psi;
Independent automatic
collecting and flow function.

Suppressor
Type Self-Regenerating electrolytic
micro-membrane suppressor
Maximum Pressure 6.0MPa
Dead Volume <50μL
Power Supply 150W
External Size(L*W*H*) 325*400*500
Net Weight(KG) 21
Gross Weight(KG) 28

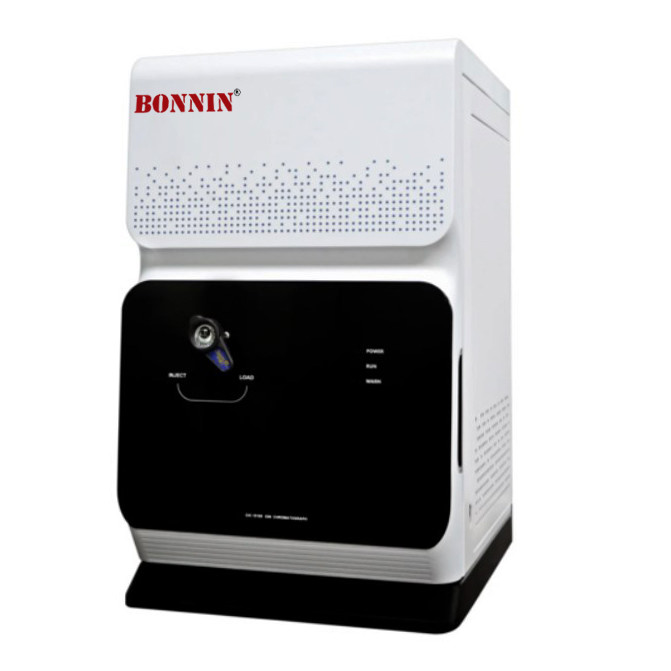

CIC-D100 21kg Portable Ion Chromatography System Analysis OEM 0CIC-D100 21kg Portable Ion Chromatography System Analysis OEM 1

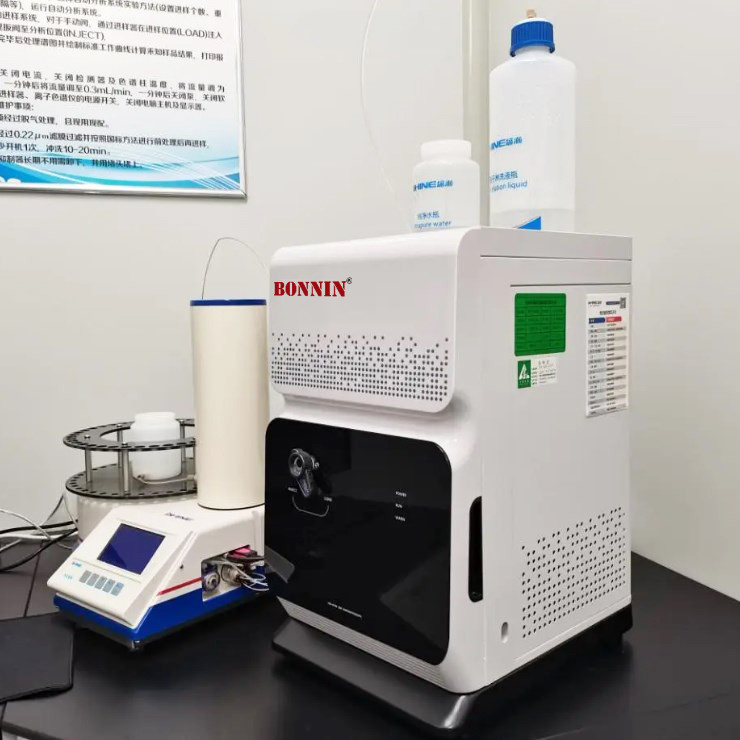

CIC-D100 21kg Portable Ion Chromatography System Analysis OEM 2

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
