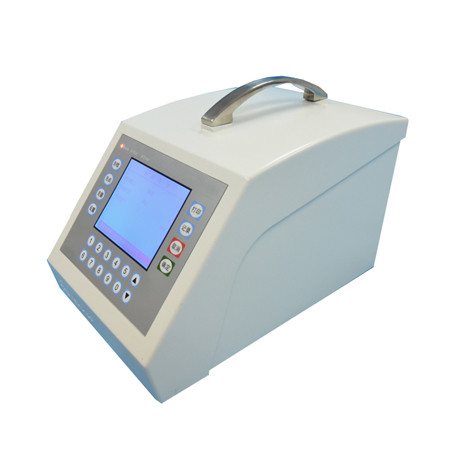

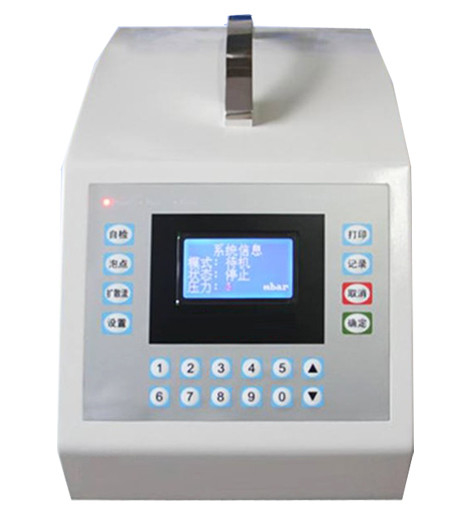

Bonnin Automatic Filter Integrity Tester Machine 110W Air Filtration Bubble Point Testers

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: BNT-V4.0
Minimum Order Quantity: 1 set
Price: USD4000-6000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Applications: Capsule Filters And Air Filter Operation Pressure: 9999 Mbar
Display: English LCD Screen
High Light:

air filtration bubble point testers

,

Bonnin filter integrity test machine

,

automatic filter integrity tester 110W

Air Filter Bubble Point Testing Filter Integrity Testing Equipment for Sale

BNT-V4.0 automatic filter integrity tester is the filter material and filter system integrity test of special equipment, it can be bubble point and diffusion flow (forward flow) method, water intrusion test method to detect filtering accuracy and completeness of filter and filtration systems. Test methods meet FDA, National Pharmacopoeia and the GMP standards for sterile filter validation requirements.



Application Range:
Disc Membrane:Φ25mm-Φ300mm;
Standard Cartridge:2.5″- 40″
Capsule & Mini Catridge
Air filter test :2.5″- 40″



Features:

Technical Parameters:

Power requirements 170-240V AC, 50/60Hz;110W
Maximum operating pressure 9999 mbar
Minimum intake air pressure 3000 mbar
Overall dimensions 240(W) x 380(D) x 280(H)
Test Range maximum test pressure: 500-6900mbar
Test Accuracy Net volume test: ± 4%; bubble point: ± 50mbar; diffusion flow: ± 4%; water immersion: ± 0.1ml / min
Operating conditions Ambient temperature: + 5 ℃ ~ + 35 ℃; Relative humidity: 10-80%
Test Processed

Net volume test: 5 min ± 2min; diffusion flow test: 8 min ± 2min;

Simple bubble point test: 10 min ± 2min; enhanced bubble point test: 20 min ± 2min;

Water immersion test: the setting of test time + 5min ± 2min;

Printing function Wide line printing, output test parameters, test results, automatic print function
Test recording function 500 groups of test results (including test curve), can be increased to 1000 set of test results according to user needs
Display screen 5.7" TFT;monochrome
Serial port connection mode RS232;
Language English

























Bonnin Automatic Filter Integrity Tester Machine 110W Air Filtration Bubble Point Testers 0Bonnin Automatic Filter Integrity Tester Machine 110W Air Filtration Bubble Point Testers 1Bonnin Automatic Filter Integrity Tester Machine 110W Air Filtration Bubble Point Testers 2

Bonnin Automatic Filter Integrity Tester Machine 110W Air Filtration Bubble Point Testers 3

Bonnin Automatic Filter Integrity Tester Machine 110W Air Filtration Bubble Point Testers 4

Bonnin Automatic Filter Integrity Tester Machine 110W Air Filtration Bubble Point Testers 5

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
