1KW 30L 6 Vessels Microwave Digestion System Extraction Workstation For Drug Biological Tissues

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: MRS-6G
Minimum Order Quantity: 1 set
Price: USD7000-9000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Magnetron Type: Single Magnetron Variable Frequency Control System Cavity: 30L Resonant Cavity
Microwave Output: 1000W Display: English Touch Screen
High Light:

30L Microwave Digestion System


1KW Microwave Digestion System


30L Microwave extraction Workstation

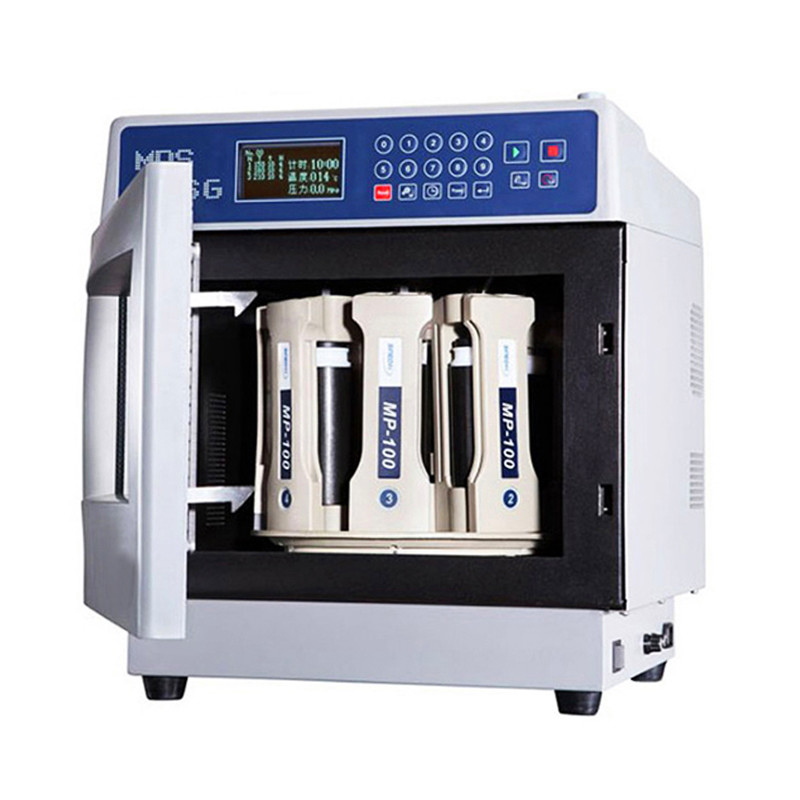

MRS-6G 30L 6 Vessels Microwave Digestion System For Food Drug and Biological Tissues


Feature :

·All-steel industrial grade chamber with corrosion resistance and ultra-long life;
·Ultrastrength aerospace composite fiber digestion outer vessel;
·Exclusive patented multifunctional safety bolt design, instead of safety membrane and other consumables;
·Precise pressure control by piezoelectric crystal without cross-contamination problem;



Food and drug (milk and dairy products, health food), cosmetics, agricultural and sideline products, aquatic products, biological tissues, various types of feed, energy and petrochemical, geology and mineral resources, environmental resources (air, water, soil), metals, alloys, ceramics, RoHS, medicine, domestic wastes.


MRS-6G microwave digestion system, a subversion of tradition, is a market-oriented practical compact microwave digester; It highlights the company's three major ideas of product design and also meets users' needs in safety, durability and convenience of operation.

The outer vessel of SMART exclusively made by ultra strength aerospace composite fiber is invincible in anti-explosion, and its performance indicators such as corrosion resistance, high temperature/impact/pressure resistance are far better than that of the widely used modified PEEK engineering plastics vessel (this material is fusible at high temperature, fragile at high pressure and explosive by chemical corrosion). The compressive strength of aerospace composite fiber is up to 10000psi and temperature 500-600℃, fundamentally eliminating safety risks to operator in use.



Technical Parameters:

Power 220-240 VAC 50/60Hz 8A
Microwave frequency 2450MHz
Installed power 1800W
Maximum output power 1000W, non-pulse continuous automatic variable frequency control
Turntable design Load 8 MP-100 closed digestion vessels at same time
Pressure measurement and control system Piezoelectric crystal pressure sensor, pressure control range :0-10MPa (1500 psi), accuracy ± 0.01MPa
Temperature measurement and control system High-precision platinum resistor temperature sensor, temperature range :0-300°C, accuracy ±1℃
Outer vessel material Explosion-proof outer vessel made of aerospace composite fiber
Inner vessel material TFM material
Chamber exhaust system High-power anticorrosion axial fan, exhaust speed: 3.1 m3/min
Operating ambient temperature 0-40 ° C
Working environment humidity 15-80%RH
Whole physical size 450 x 515 x 510 mm (W x D x H)
Net weight 40 KG

1KW 30L 6 Vessels Microwave Digestion System Extraction Workstation For Drug Biological Tissues 01KW 30L 6 Vessels Microwave Digestion System Extraction Workstation For Drug Biological Tissues 1

1KW 30L 6 Vessels Microwave Digestion System Extraction Workstation For Drug Biological Tissues 2

FAQ 1. Are you a factory or trading company?

We are a factory.


FAQ 2. Can you supply OEM?

OEM is available.


FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.


FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.


FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.


FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.


FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
