| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | LGJ-10 LGJ-12 |
| Minimum Order Quantity: | 1 set |
| Price: | USD2000-22000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Capacity: | 0.12M2~2M2 Available | Cold Trap Temperature: | ≤-56℃, ≤-75℃ |
|---|---|---|---|
| Display: | English Touch Screen | ||
| Highlight: | lab lyophilizer Real time,LGJ-12 mini vacuum freeze dryer,0.12M2 benchtop freeze dryer |
||

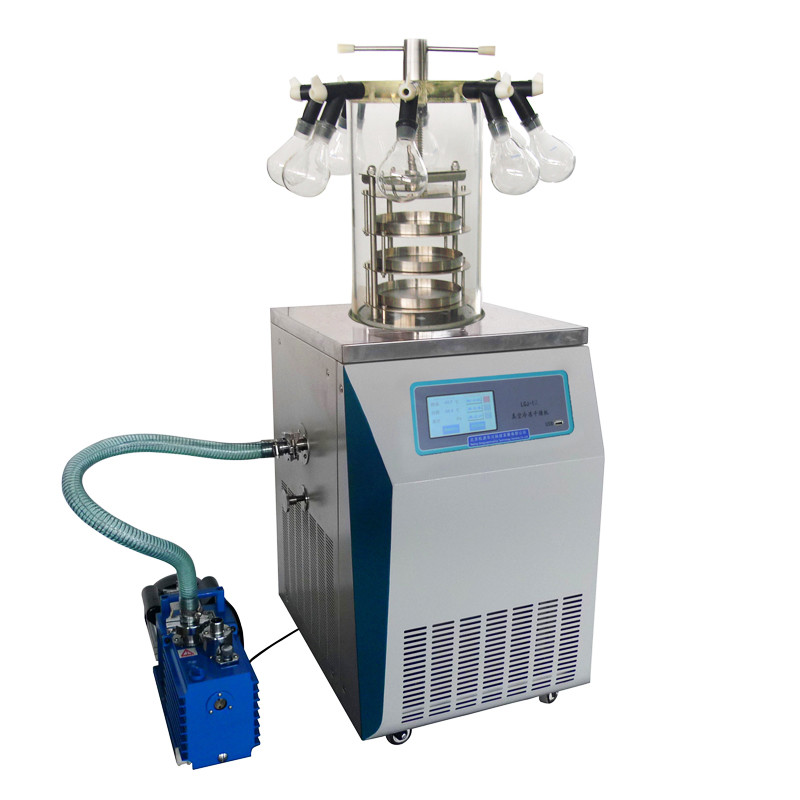

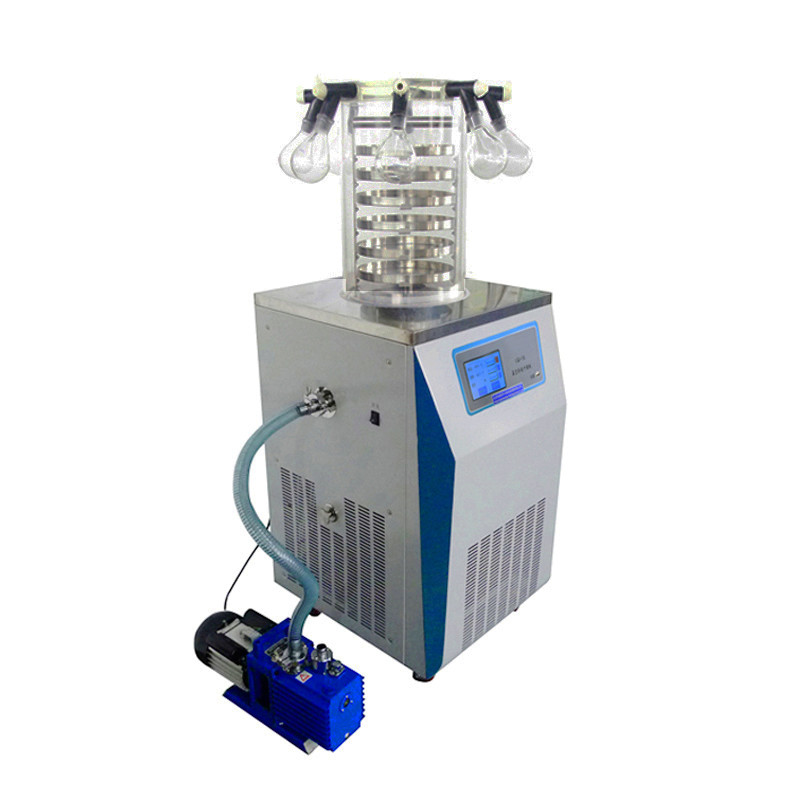

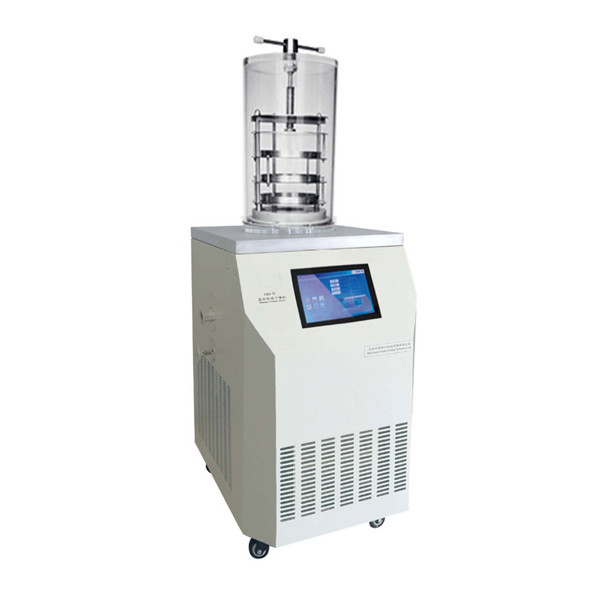

LGJ-10 LGJ-12 Benchtop Small Mini Vacuum Freeze Dryer Laboratory Lyophilizer
LGJ Series Vacuum freeze dryer: firstly freeze the water-containing material below the eutectic temperature to make the water solid ice, then under a higher vacuum, the ice is sublimated directly into water vapor, and then the water vapor condenser vapor condensation to obtain a dry product technology. We have LGJ-10/12/18 laboratory small lyophilizer, also have pilot scale LGJ-20/30, 50/100/200 for different capacity requirements. Normal type, Stoppering type. Optional heating function (electric heating, or Silicone oil heating).
| Normal type | LGJ-10 | LGJ-12 | LGJ-18 | LGJ-10FD |
| Freeze-dried area | 0.12M2 | 0.12M2 | 0.18M2 | 0.2M2 |
| Number of plate | 4 | 4 | 6 | 2 |
| Plates space | 70mm | 70mm | 70mm | 70mm |
| Loadable material | 1.2L | 1.2L | 1.8L | 2L |
| Cold trap temperature | ≤-56℃ | ≤-56℃ | ≤-56℃ | -50—+70 electric heating |
| Water for cold trap | 3-4KG/24Hr | 3-4KG/24Hr | 6KG/24Hr | 3-5KG/24Hr |
| Voltage | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz |
| Dimension | 15×450×(370+430) | 580×500×(720+430) | 630×580×(970+460) | 750*800*1300 |
| Normal type | LGJ-20F | LGJ-30F | LGJ-50F | LGJ-100F |
| Freeze-dried area | 0.3M2 | 0.4M2 | 0.5M2 | 1M2 |
| Number of plate | 3+1 | 4+1 | 4+1 | 6+1 |
| Plates space | 70mm | 70mm | 70mm | 70mm |
| Plate size | 270*400*15 | 300*340*15 | 360*480*15 | 360*480*15 |
| Plate temperature | -50℃ to 70℃ | -50℃ to 70℃ | -50℃ to 70℃ | -50℃ to 70℃ |
| Cold trap temperature | ≤-75℃ | ≤-75℃ | ≤-75℃ | ≤-75℃ |
| Water for cold trap | 4KG/24Hr | 6KG/24Hr | 8KG/24Hr | 15KG/24Hr |
| Defrost | electric defrost | Natural defrost | Natural defrost | electric defrost |
| Voltage | AC220V/50Hz | AC220V/50Hz | AC380V/50Hz | AC380V/50Hz |
| Dimension | 800*800*1550 | 880*735*1320 | 960*785*1450 | 1020*780*1700 |
Main features:
1. It is our company’s patented product. Freezing and drying is finished in the same place. It is easy to operate,and have a good drying effect.
2. The ACRYLIC material is used for the drying chamber door. It is colorless, transparent, and the whole process of lyophilization can be observed.
3. Inflatable (drainage) valves use safety diaphragm valves, which can be connected to an inert gas source, and filled with inert gas after drying to extend material storage time.
4. Patented gas diversion technology, uniform ice catching in cold traps, and strong ice catching capability.
5. Internationally renowned brand compressors, high efficiency, long life, low noise.
6. Separator patented technology and partition temperature fuzzy control technology, the shelf temperature difference is small, the temperature control accuracy is high, and the drying effect is even.
7. The freeze-drying curve optimization control technology can control the cooling rate in the pre-freeze phase, and at the same time, it can control the sample heating rate and the current stage vacuum degree in the sublimation and analytical drying stages.
8. The powerful sensor calibration function ensures the long term accuracy of the measured value.
9. 7-inch true color industrial embedded touch screen + SH-HPSC-II modular controller, high control accuracy, stable and reliable performance.
10. The professionally designed FD-EMB control system can save hundreds of process recipes. Each recipe contains 50 temperature control zones to improve the process optimization rate.
11. Intelligent data recording system, real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve, export data can be viewed through the computer and print a variety of operations to facilitate process optimization and verification of drying effect.
12. Flexible manual + automatic control, manually used for groping the process, automatically used for mass production.
13. Real-time alarm display and historical alarm query function to facilitate fault diagnosis and equipment maintenance.
14. Setting the user level and password , and decentralizing operation management.
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
