Laboratory Automated Microplate Reagent Dispenser 100uL To 1000uL

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: Auto-Mate 96
Minimum Order Quantity: 1 set
Price: USD15000-18000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Sample Capacity: 96 Channels Sample Volume: 20~1000ul
Plate Number: 4 Display: Ipad
Weight: 33kg
High Light:

Automated Reagent Dispenser System


Reagent Dispenser System 1000uL


100uL microplate reagent dispenser

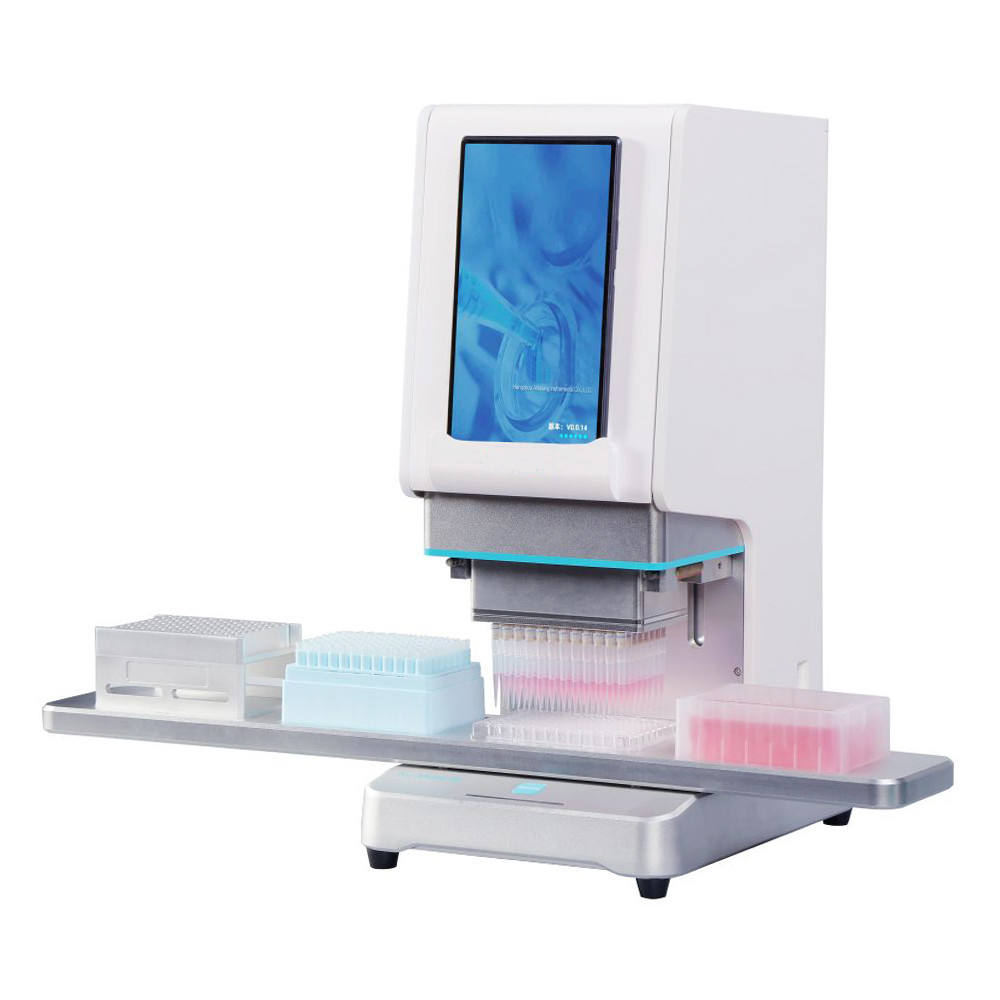

Auto-Mate 96 Automated Liquid Handling Pipette Robot Machine for Laboratory DNA Nucleic Acid Extraction Pipettes

Laboratory Automated Microplate Reagent Dispenser 100uL To 1000uL 0

Auto-Mate 96 liquid handling workstation is used for complex experimental procedures and precise pipette operations, Auto-Mate 96 liquid handling workstation can bring you unlimited imagination. Through the external tablet computer, you can easily set up, save and operate the experimental process. Through the software control, the difference between aspirating and dispensing is truly eliminated, which improves the repeatability of pipette.
The simple and easy-to-operate software system controls the process of loading and unloading tips, aspirating and dispensing liquid, so as to complete complex multi-step experiments. A large amount of repetitive work can be completed in a short time, thereby reducing most of the manual pipette burden, and significantly improving the sample processing speed and repeatability.



Small Size and Saving Space

The Auto-Mate 96 with 2 plate positions has a compact structure. It only takes up a very little space on the laboratory table, and is easy to install in the clean bench, safety cabinet, and fume hood so that you can work in narrow spaces. The work can be easily completed by switching the pipette positions on the mobile table.


Multiple Plate Positions and High Automation

You can choose 2/4 plate positions, or you can customize 3/6 plate positions. The pipette tips and plate positions can be moved automatically.


Intuitive Program Setting Interface

Graphical software interface, which is easy to understood and edited. Through the standard 8-inch Android tablet, users can easily edit the process. The instrument has a built-in user management system to facilitate the management of the experimental program.


Support Wired Operation and Wireless Bluetooth Control

For some experimental environments with special requirements, the instrument can be placed in fume hoods, clean benches, etc. Using Bluetooth wireless control of the instrument, which not only reduces the interference to the experiment, but also ensures the safety of the experimenters.


Compatible with a Variety of Consumables

The instrument can be adapted to other compatible TIPS. In addition, customized services can be provided for special TIPS.


Powerful Software Function

Integrate a variety of pipette functions: aspirating, dispensing, blowing air, continuous blowing air, column-separated aspiration, stepper pipette, mixing, dilution, reverse aspiration; basic mode, advanced mode; the movement speed can be set: the liquid aspirating and dispensing speed can be set, and the controllable pipette speed can meet the physical characteristics of different liquids.


Technical datas:

Model Auto-Mate 96
Plate number 4
Adapted pipette tip Pipet N1000 tips
Pipette range 100-1000uL
Minimum increment 1uL
Accuracy ≤1% at 1000uL
Precision ≤0.4% at 1000uL
Software control mode Basic & advanced mode
Channel 96channel
Technical principle Air displacement
Available well plate SBS standard 24/96/384 deep and shallow well plates
Consumables TIPS
System Standard 8-inch Android tablet, software adaptive to mainstream size tablet
Communication method CAN communication
Power supply 100~240V, 50~60Hz
Power 250W
Wireless control The instrument has a built-in Bluetooth module, which can be connected wirelessly
Weight (kg) 33
Size (WxDxH)mm 690x350x673


Laboratory Automated Microplate Reagent Dispenser 100uL To 1000uL 1Laboratory Automated Microplate Reagent Dispenser 100uL To 1000uL 2

Laboratory Automated Microplate Reagent Dispenser 100uL To 1000uL 3

FAQ 1. Are you a factory or trading company?

We are a factory.


FAQ 2. Can you supply OEM?

OEM is available.


FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.


FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.


FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.


FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.


FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
