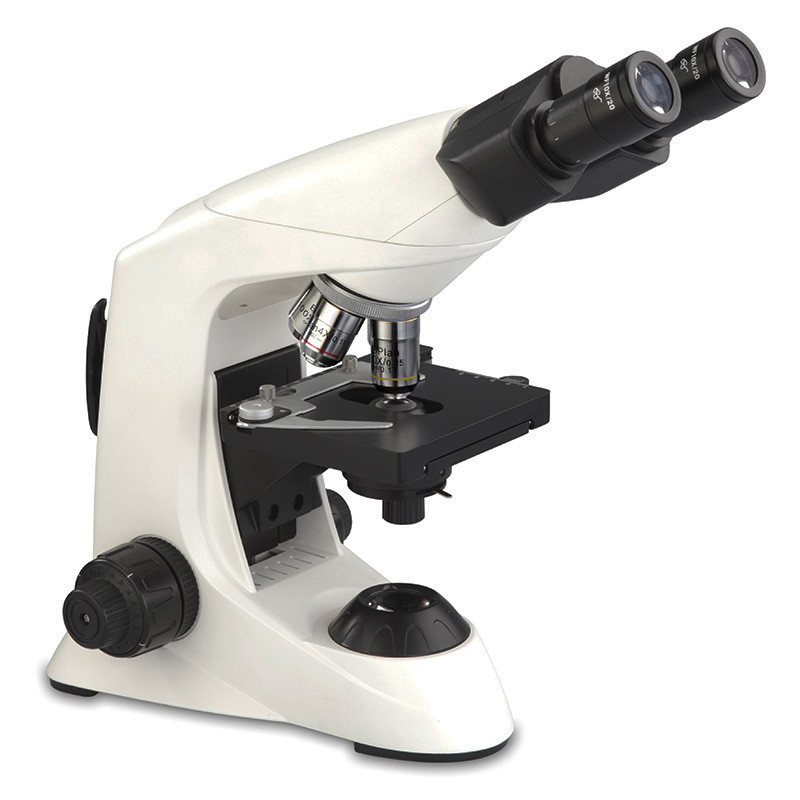

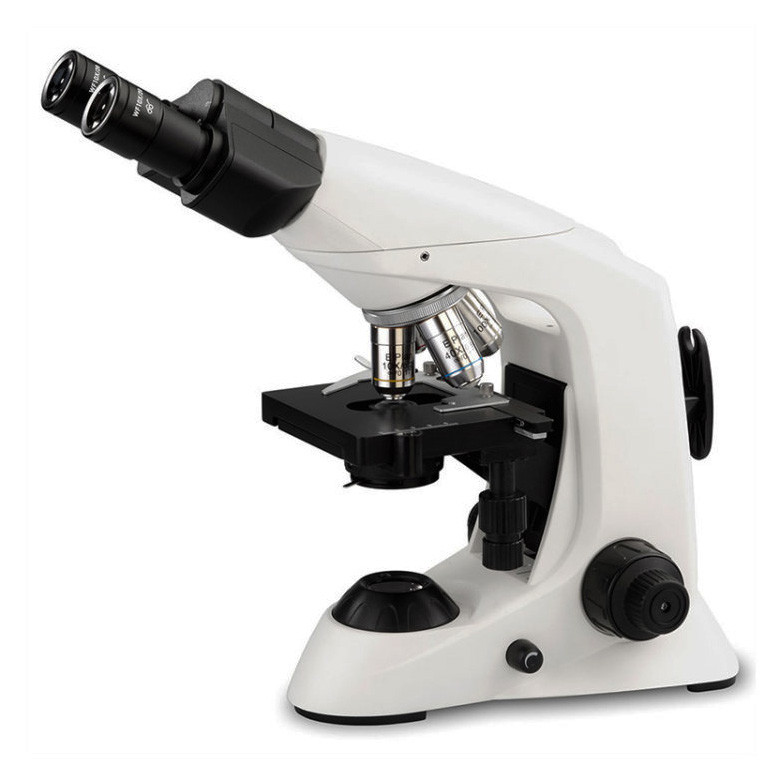

B302E500 Digital Binocular Biological Microscope High Resolution For Laboratory

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: B302E500
Minimum Order Quantity: 1 set
Price: USD1000-5000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Butterfly Head: 5 MP Pixel Digital Head, Inclined 30°,Rotatable 360° Eyepiece: WF10X/20mm (High Eyepoint)
High Light:

B302E500 digital binocular microscope

,

binocular biological microscope

,

Laboratory binocular digital microscope

China B302E500 High Resolution Digital Binocular Biological Microscope For Laboratory







B302E500 Digital Biological Microscope, for the images of the new coronavirus (SARS-CoV-2) were taken on scanning and transmission electron digital microscopes.



Perfect Optical System



Perfect Appearance Design



Perfect Ergonomics Design



Technical Data:

Items Specification B302E500
Main Body
Eyepiece WF10X/20mm (High eyepoint) ●●



Infinity Objective

EPLAN 4X/0.10
EPLAN 10X/0.25
EPLAN 40X/0.65(S)
EPLAN 100X/1.25(S,Oil)
PLAN 4X/0.10
PLAN 10X/0.25
PLAN 20X/0.40(S)
PLAN 40X/0.66(S)
PLAN 60X/0.80(S)
PLAN 100X/1.25(S,Oil)
PLAN 100X/1.15(S,Water)



Butterfly Head

5 MP Pixel Digital Head, Inclined 30°,Rotatable 360°,

Interpupilary Distance: 48-75mm

1/2’’CMOS color sequential scanning. USB2.0

Light Distribution: 20:80

Nosepiece Quadplex





Mechanical Stage

Size 145mmX140mm, Travel Range:76mmX52mm, Scale: 0.1mm, Two Slide Holder

Rackless(Integrated) stage,

Size: 140×135mm,Travel Range: 75×35mm,

Two-slide holder

Abbe Condenser N.A.1.25, With iris Diaphragm
Coaxial Coarse and Fine Focusing Knobs

Coarse Focusing Travel Range: 25mm

Fine Focusing Travel Range: 2µm/division

Aspheric Illumination 3W LED Illumination,Voltage: 100V-240V
Dark Field Unit Dark Field Ring (Dry, N.A.0.9)
Polarizing Unit Analyzer, Polarizer
Wire Winding Device



Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.

Packing Size: 345mm×260mm×455mm Gross Weight: 6.7 kgs Net Weight: 5.3 kgs

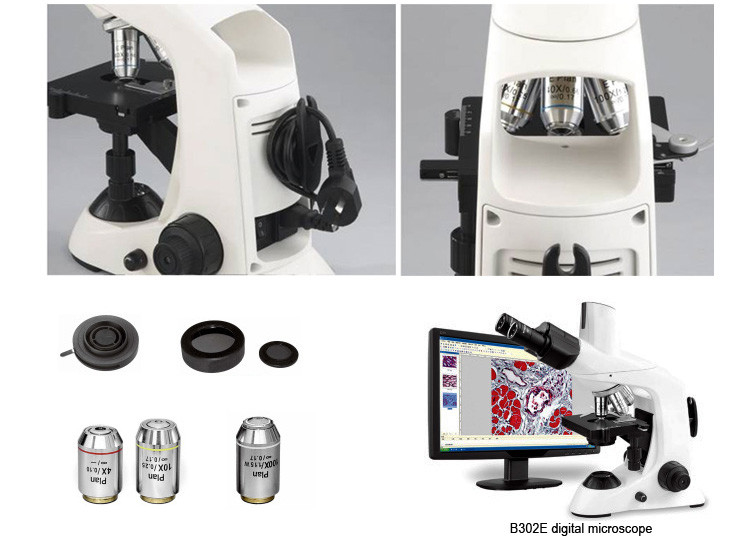

B302E500 Digital Binocular Biological Microscope High Resolution For Laboratory 0

B302E500 Digital Binocular Biological Microscope High Resolution For Laboratory 1

B302E500 Digital Binocular Biological Microscope High Resolution For Laboratory 2

B302E500 Digital Binocular Biological Microscope High Resolution For Laboratory 3B302E500 Digital Binocular Biological Microscope High Resolution For Laboratory 4

B302E500 Digital Binocular Biological Microscope High Resolution For Laboratory 5

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
