| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | Gentier48E |
| Minimum Order Quantity: | 1 set |
| Price: | USD9500-15000/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/month |
| Sample Capacity: | 1~48 | Sample Volume: | 5-100 μL |
|---|---|---|---|
| Plates Type: | 8 Strips PCR Tube, Or Single PCR Tube | Display: | 7 Inch English Touch Screen |
| Software: | Powerful Data Analysis Function | ||
| High Light: | Gentier 48E Real Time PCR System,COVID19 gradient thermal cycler,Real Time PCR Instrument 7 inch |
||
COVID19 PCR Laboratory DNA Fast Gradient Quantitative Real Time PCR Instrument

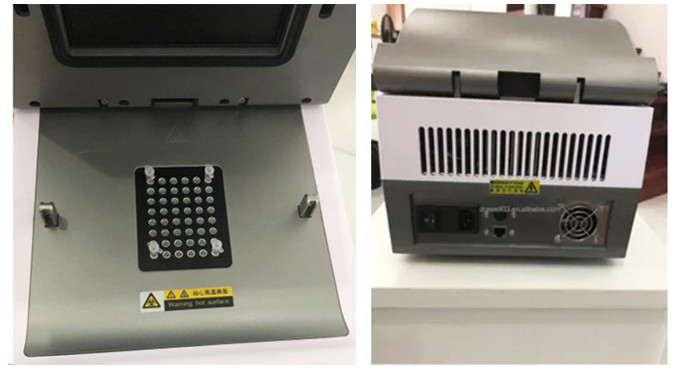

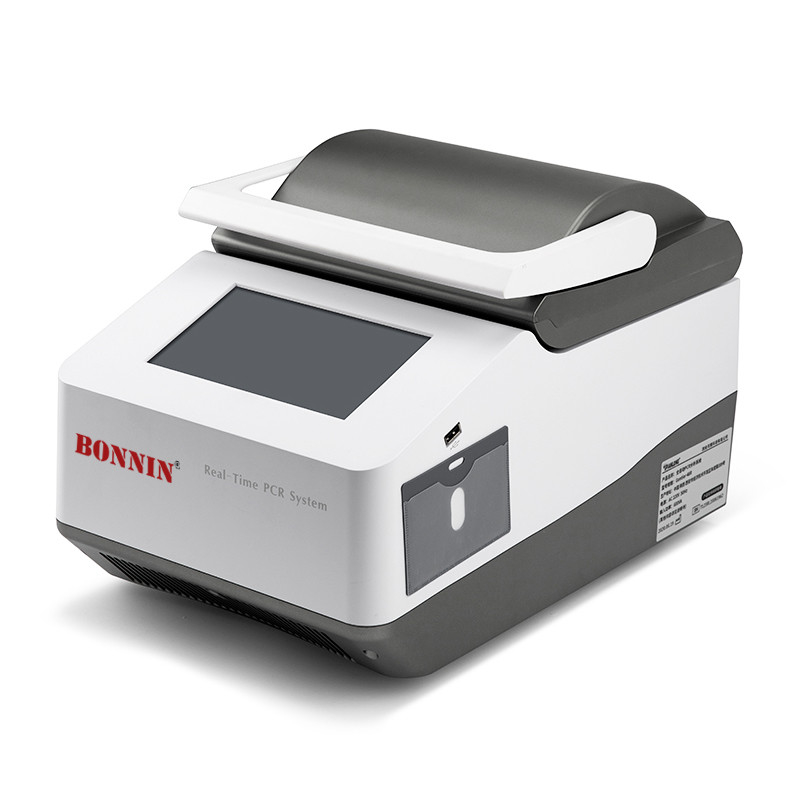

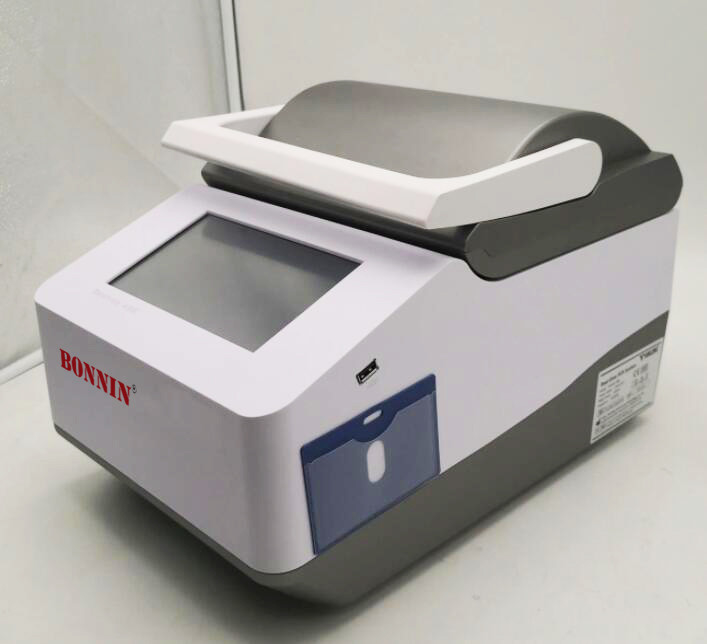

The Gentier48E Real-time polymerase chain reaction PCR system, PCR instrument is intended for performing rapid, accurate polymerase chain reaction (PCR), meanwhile real-time measuring the nucleic acid signals from DNA-binding fluorescent dyes or labeled probes and converts them to comparative quantitative readouts of DNA or reverse transcribed RNA.
Features:
1. Standard with 7" LCD touch screen, functions quickly, accessible through simple, one-touch commands.
2. Wizard operation to lock and unlock the transport locker.
3. Message alarm indicate the status of the machine.
4. USB port update software and firmware.
5. Unique power-off protection function can save all the setting configurations for sudden power outages, and allow the experiment continues when power supply is restored.
Technical datas:
| Model | Gentier48E |
| Sample capacity(wells) | 48 |
| Reaction Volume | 5-100 μL |
| Consumables | 0.2ml 8-strip tubes ,0.2ml PCR single tube(Optical flat cap,clear tube) |
| Temperature range | 0°C-100°C |
| Heating/cooling method | Peltier |
| Max heating rate | 8.0°C/sec |
| Average heating rate | 6.2°C/sec |
| Max cooling rate | 6.2°C/sec |
| Average cooling rate | 4.5°C/sec |
| Temperature accuracy | ±0.1℃ |
| Temperature uniformity | ±0.2℃ |
| Gradient Range | 1°C-40°C |
| Gradient block | 8 row |
| Special temperature portocol | Gradient PCR,Long PCR,Touch Down PCR |
| Detection method | 4 channels scanning at the same time, no edge effect. |
| Range of excitation/ emission wavelengths (nm) |
1 465 /510 (FAM,SYBR Green I,SYTO9,EvaGreen,LC Green) 2 527/ 563 (HEX,VIC,TET,JOE) 3 580 /616 (ROX,Texas Red) 4 632/ 664( Cy5) |
| Machine size(WxDxH) | 260mm X 400mm X 2605mm |
| Weight | 11kg |
Notes:
Gentier 48E Real-time PCR System:
Channels are same with Roche LightCycler 96, Agilent Mx3000P
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
