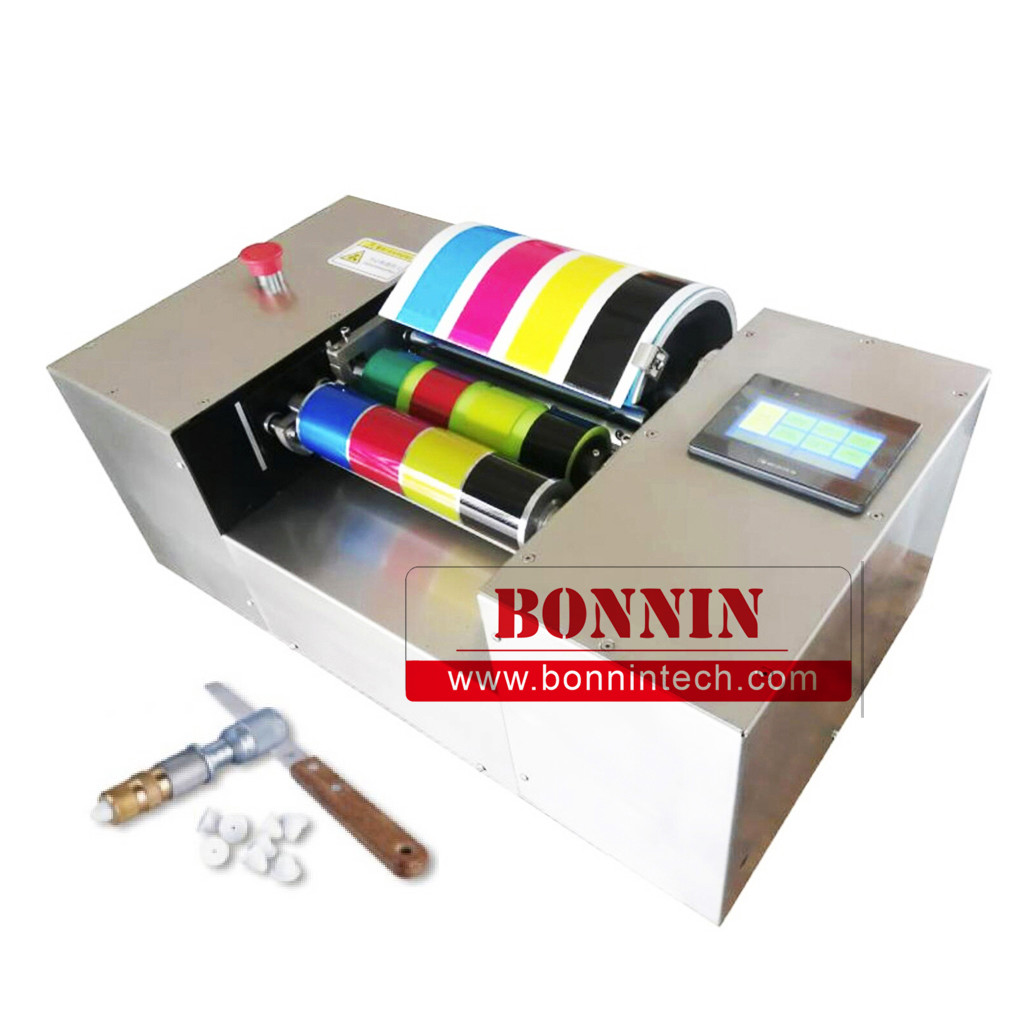

HK-310 Lab Ink Printing Printability Offset Ink Proofer

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: HK-310, HK-320
Minimum Order Quantity: 1 set
Price: USD2000-5800/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Equipment: Offset Printing Ink Proofer Color Effective Area: 40mm X 220 Mm (4 Strips)
Printing Roller Width: 225mm Warranty: 12 Month, Life-time Technical Support

Good Quality Ink Printing Printability Gravure Offset Flexo Ink Proofer, HK-310 Lab Ink Printing Printability Offset Ink Proofer

Automatic Offset Printing Ink Proofer / Printing Ink Printing Proofer,  Install the paper, adjust the ink viscosity, the need to test the ink into the inking device chest, and the air out of the ink until the overflow. The nozzle of the inking machine is aligned with the surface of the inking roller. Open the operation screen to set the data, press "uniform ink" , the instrument automatically execute the computer program. After the ink stop press "print" , printing excellent sample.



HK-310 Automatic Offset Printing Ink Proofer is to imitate the working principle of the design and production of the press, the proofing machine pressure adjustable, a wide range of substrates for printing and packaging production, paper production enterprises, ink production enterprises and research institutions, and so on use. Spot color proofing research through standard proofing to accurately predict the hue of ink. Through the continuous comparison with the color of the standard to determine the correct ratio of ink, spot color deployment is correct and then in accordance with the ratio in the printing press on the mass production, making the color work completely into prepress work.

Standard:
GB / T 8941, ISO2813, ISO 2469, ISO 9416, GB / T 7973, GB / T 7974, GB / T 12911, GB / T7706, ASTM D 6531

Technical parameter:
1. Even ink method: automatic ink (uniform ink time adjustable)
2. Printing accessories: printing pressure can be adjusted according to the thickness of the material external
3. Printing pressure: -1 + 1mm Manual adjustment, printing pressure can be adjusted according to the thickness of the external precision
3. Uniform ink speed: third gear direct speed, respectively, 400, 550, 700 r / min. Speed according to the characteristics of the ink and the characteristics of the paper shift adjustment, adjustable speed 0-900 r / min.
5. Development speed: third gear speed: 10,15,20 r / min, speed control, 0-25 rev / min.
6. Printing roller width: 225mm (color development area of the largest 225MM × 210MM)
7. Color effective area: 40mm x 220 mm (4 strips)
8. Inverter: Taiwan Delta
9. Power supply: 220V, 50Hz
10. Working environment: temperature (20 ± 10 ℃), humidity <85%



HK-310B Gravure Printing Proofer
The gravure proofer is suitable for water-based, solvent-based inks and coatings coating proofing. Used for making color cards and printing samples. It is a tool for detecting ink hue, concentration, varnish gloss, V0C detection, computer color matching proofing or ink contrast.

Technical parameter:
1. Input voltage: AC220V, 50HZ-60HZ
2. Whole machine power: 150W
3. Proofing pressure: printing pressure (0-4mm); printing squeegee pressure can be adjusted, speed can be adjusted, computer program control system
4. Proofing speed: 10-100 m/min
5. Dimensions: 535X430X280mm
6. Screen specification: ø130X140mm
7. Number of screens: a gradient version as standard (also can be customized according to customer parameters)
8. Roller length: 180mm, diameter: 140mm, rubber roller length: 120mm, diameter: 220mm
9. Power (W): 450W
10. Color sample size: 60X108mm/div (10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, 85%, 90%, 95%, 100%, grayscale)
11. Standard anilox roller: 20um, 25um, 30um, 35um, 40um, 45um, 50um, 55um
12. Material diameter: less than or equal to 200MM
13. Convenient function: automatic switching of the whitening function or low-precision color printing
14. Net weight: 80KG

HK-320 Ink Printing Flexo Proofer
1.Applicable objects: monochrome proofing (such as color matching, testing, etc.)
2.Input power: 220V, 50/60Hz
3.Power: 400 w
4.Ink: dropper ink
5.Proofing material thickness: 0.01-2mm (bendable material)
6.Proofing material size: 190x240mm
7.Printing area: 100x130mm
8.Plate area: 150X 150mm
9.Plate thickness: DUPONT: 1.14mm .Tessa (double-sided adhesive tape) :0.38mm
10.Plate roller and screen roller pressure: adjustable by 2mm soil, with scale to show the pressure 11.Plate roller and press pressure: can be adjusted by 2mm soil, there is scale to show the pressure 12.Printing speed adjustable: 0-80 m/min
13.Ceramic roller specifications :100x210mm
14.Number of ceramic roller lines: standard 600LPI (70-1200 lines can be customized).Suitable for: flexographic water - based, UV ink, lithography, letterpress or UV ink
16.Suitable proofing materials: paper, plastic film, non-woven cloth, napkin, gold and silver card paper,etc 17.Dimensions (length x width x height) : 450x800x240mm
18.Instrument net weight: 110KG
19.UV fixing machine drying equipment optional
20.The instrument can be coated, solid color, dot pattern proofing
21.Blade pressure: pneumatic, pressure balance can be adjusted at both ends.The constant pressure design of the scraper is conducive to the repeatability of printing color and uniform standard.

HK-310 Lab Ink Printing Printability Offset Ink Proofer 0HK-310 Lab Ink Printing Printability Offset Ink Proofer 1

HK-310 Lab Ink Printing Printability Offset Ink Proofer 2
FAQ 1. Are you a factory or trading company?
We are a factory.

FAQ 2. Can you supply OEM?
OEM is available.

FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.

FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.

FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.

FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.

FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
