Scott Interlayer Bond Strength Tester Paper Cardboard

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: BN-8058
Minimum Order Quantity: 1 set
Price: USD3000-8000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Equipment: Scott Type Internal Plybond Tester Force: A:(0~500) J/M2; B: (500~1000)J/M2
Warranty: 12 Month, Life-time Technical Support

BN-8058 automatic internal bond strength tester (also known as Scott internal plybond tester, interlayer bond strength tester, internal bond strength tester, etc.) is mainly used to test the Z-direction tensile strength of paper and paperboard (ie, internal bond strength or interlayer bonding). Dedicated testing instrument for strength.



Conforms to TAPPI T 541 Internal Bond Strength of Paperboard (Z-Direction Tensile)
Conforms to ISO 15754 Paper and board – Determination of Z-directional tensile strength

GB/T 26203-2010 “Determination of Internal bond strength in paper and paperboard” (Scott type)
TAPPI T569pm “Internal bond strength (Scott type)”


Technical parameters:

  1. Specimen size: 25.4mm×25.4mm
  2. Number of tests: 25.4×128mm, 5 groups of specimens
  3. Test thickness: (0.1~5)mm
  4. Impact angle: Standard impact energy release angle 90°
  5. Release mode: fully automatic release
  6. Measuring range: 0-1000J/M2
A:(0~500) J/M2;
B: (500~1000)J/M2
  1. Indication error: A file: ±1J/M2; B gear: ±2J/M2
  2. Instrument accuracy: 0.001J/M2
  3. Unit: J/M2,lbf/in2 interchange
  4. Identification rate: 0.001lbf/in2, 5000 pulse high precision encoder
  5. Man-machine interface: 7.0in touch screen control system
  6. Printout: Modular all-in-one thermal printer
  7. Size: 500×400×650mm
  8. Weight: about 70kg
  9. Pneumatic clamping


Sampler optional for Interlayer bonding sampler:

Technical parameters:

  1. Specimen size: 25.4mm*140mm
  2. Parallelism of two long sides: ≤ 0.015mm
  3. Sampling thickness: (0.05~1.2)mm
  4. Dimension: 580*150*620mm
  5. Weight: about 18kg

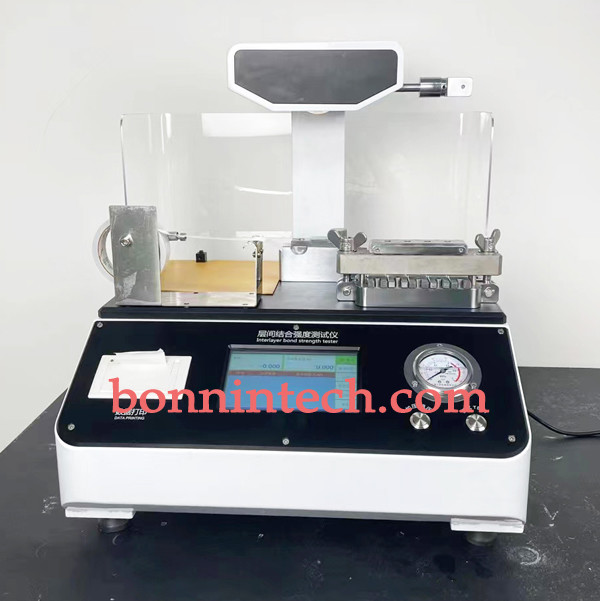

Scott Interlayer Bond Strength Tester Paper Cardboard 0

Scott Interlayer Bond Strength Tester Paper Cardboard 1
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
