20L 45L 50L Capacity Offset Flexo Ink Proofing Use Ink Mixer Machine

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: CP001/002
Minimum Order Quantity: 1 set
Price: USD500-4000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Equipment: Lab Ink Mixer Machine Capacity: 10-45L
Speed: Low Speed, L Shape Warranty: 12 Month, Life-time Technical Support

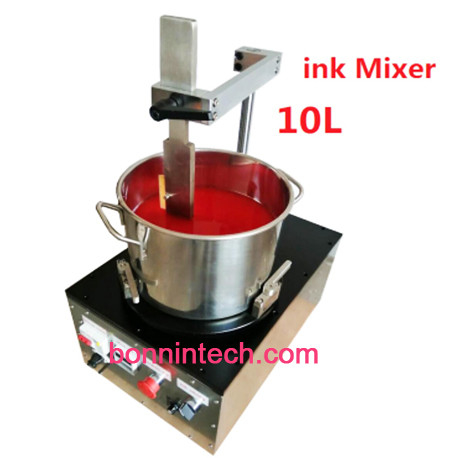

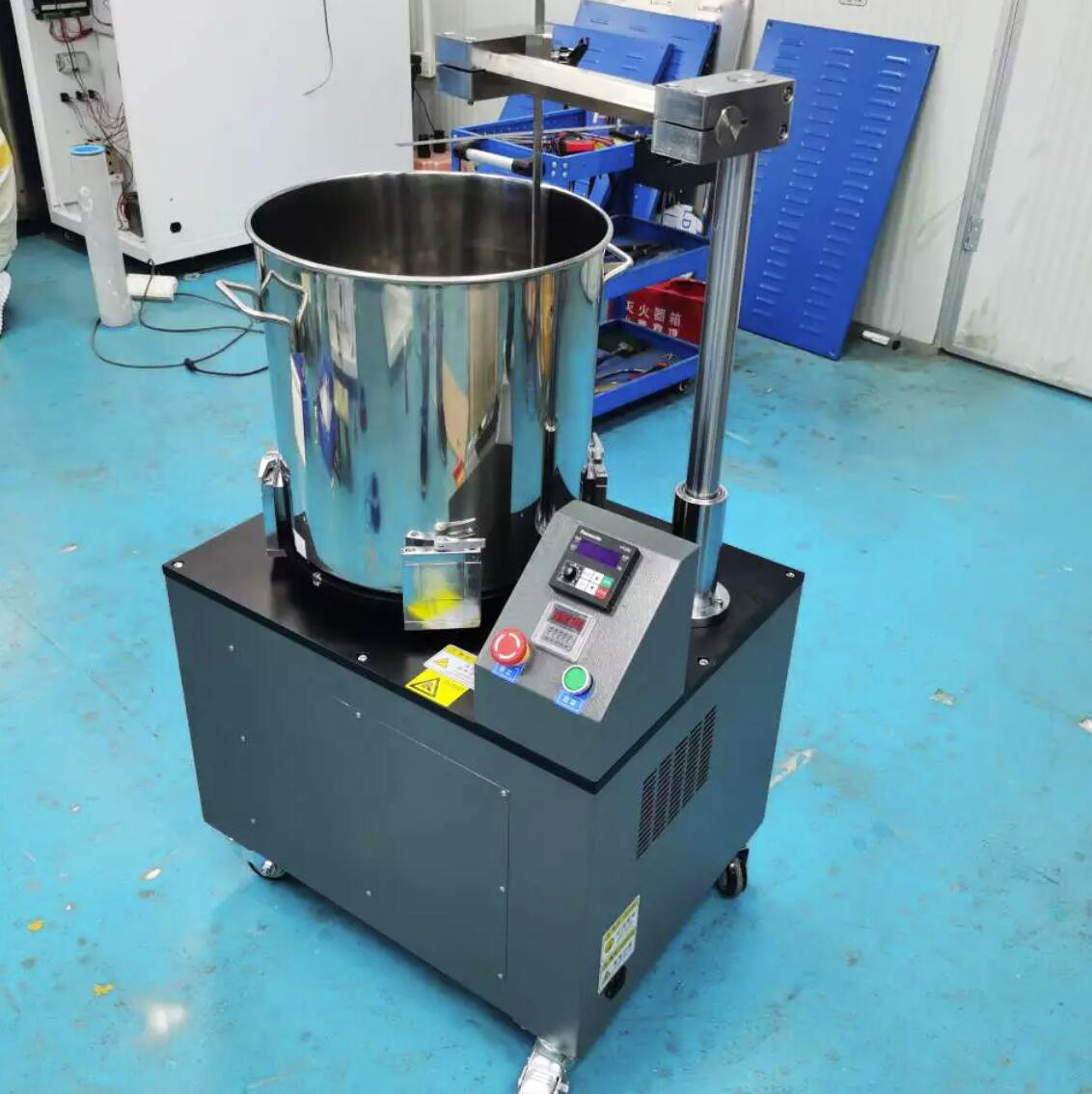

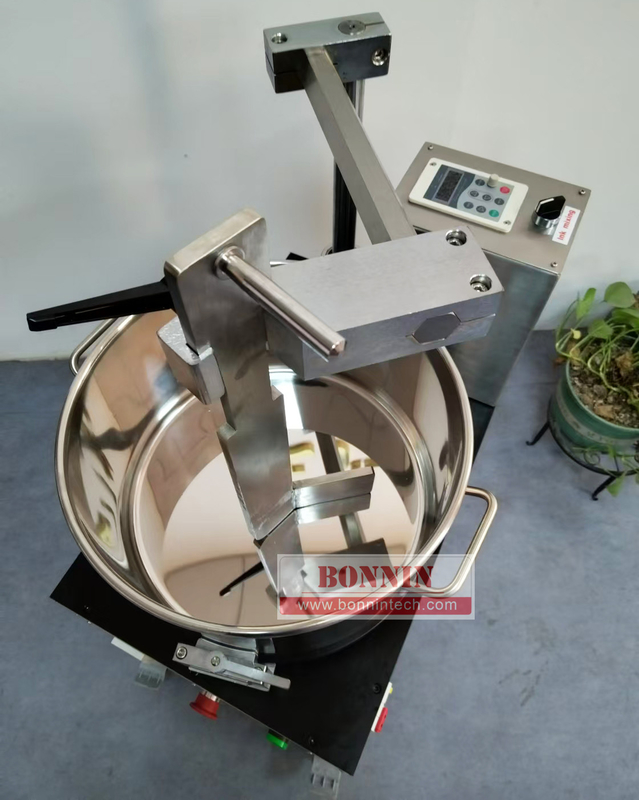

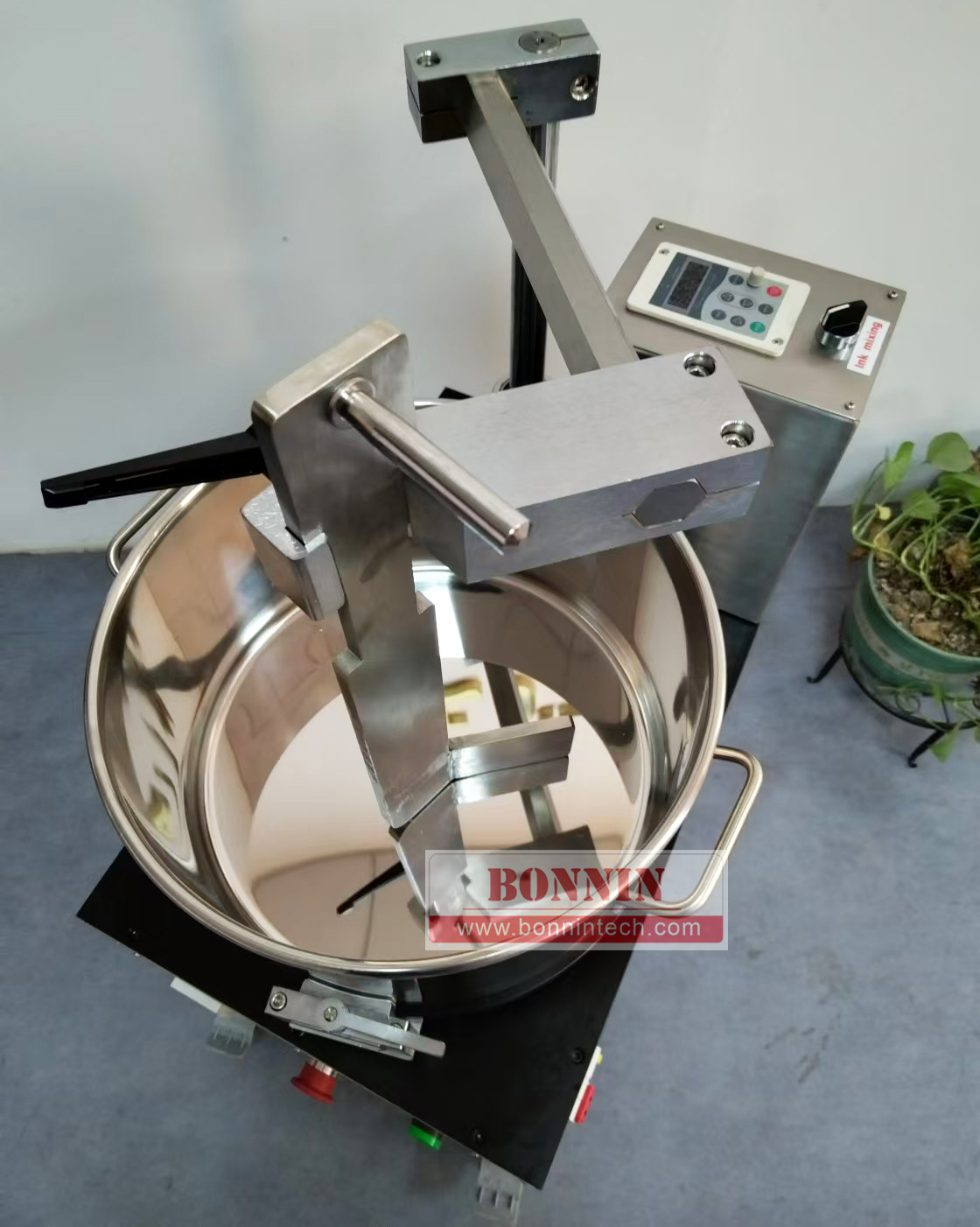

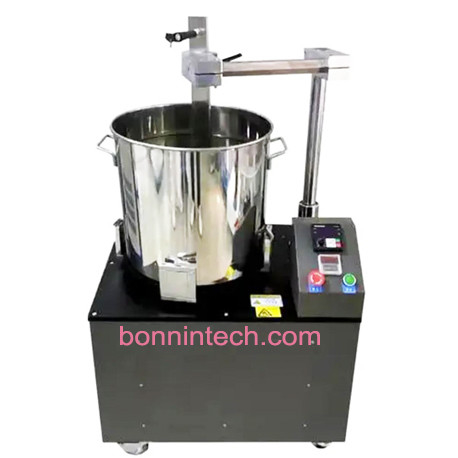

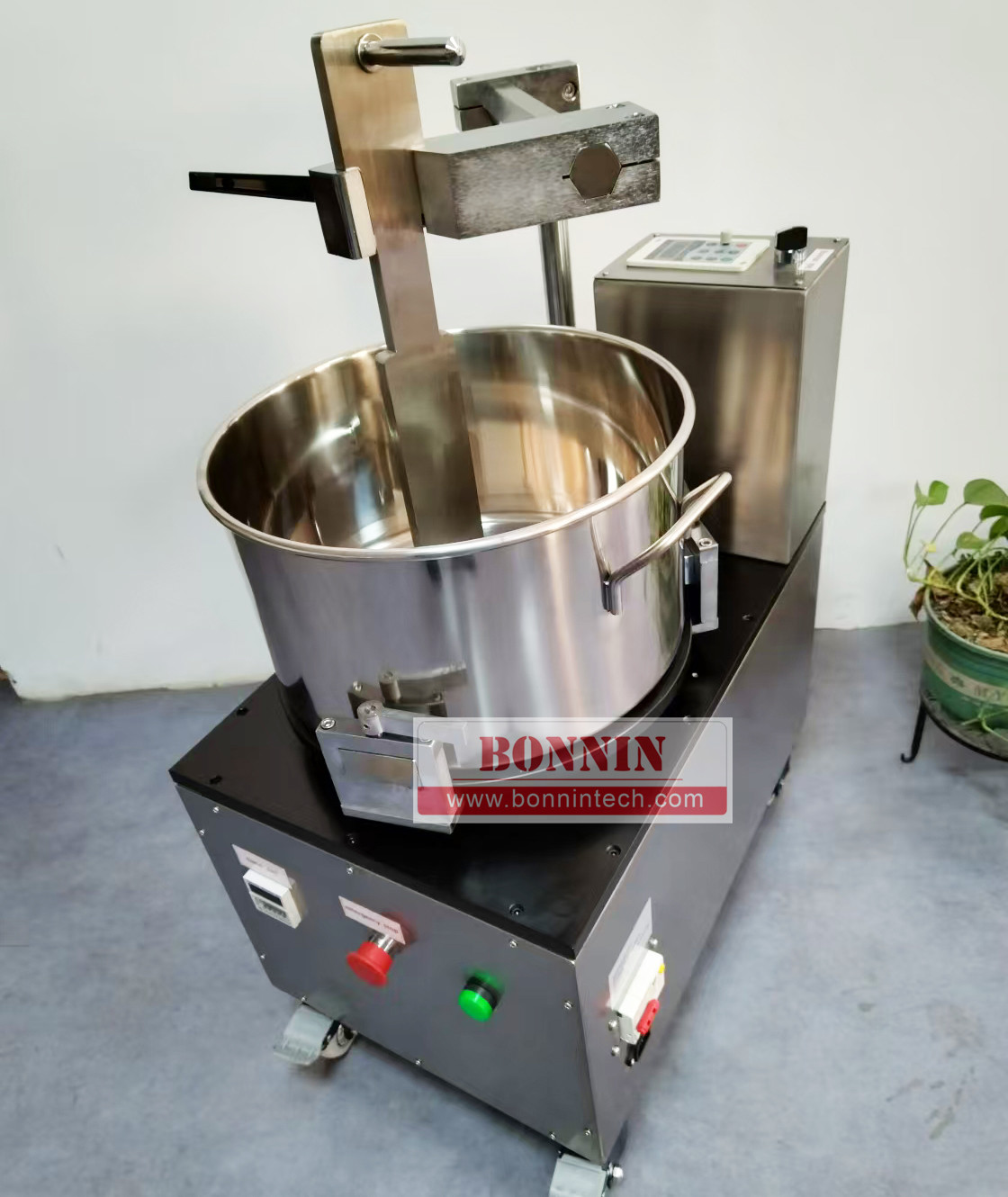

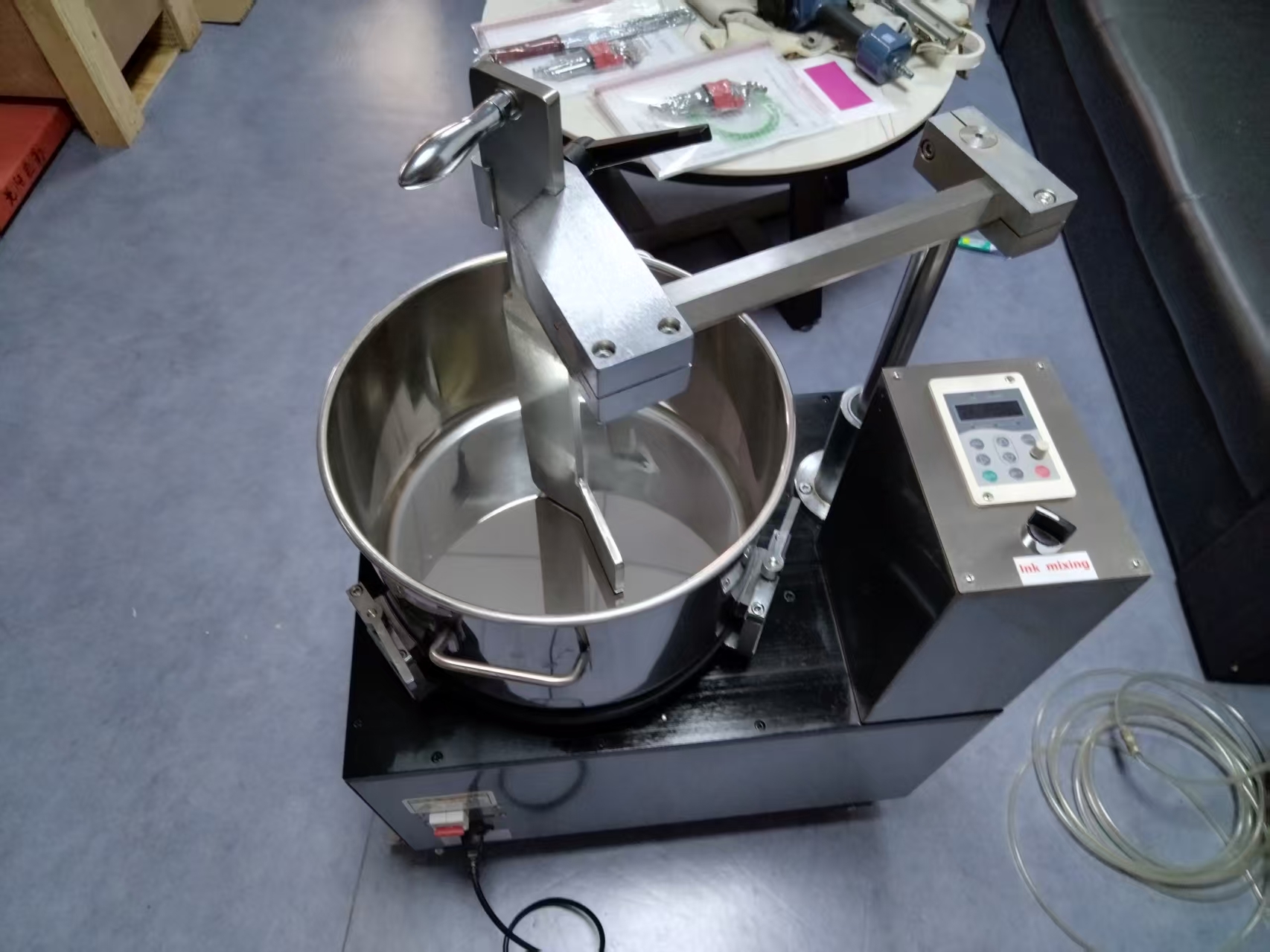

CP001 Small 10L Ink Mixer Instrument, 20L Offset Printing Ink Mixing Machine, 10L Lab Ink Mixer Machine, Flexo Ink Mixing Machine, 20L 45L 50L Capacity Offset Flexo Ink Proofing Use Ink Mixer Machine

ink mixer offset flexo printing 7.jpgink mixer offset flexo printing 5.jpg






ink mixer offset flexo printing 2.jpg

Main parameters:

Input voltage: 220V
Machine power: 850W
Speed: 0-60 RPM
Exterior size: 600x4000x1000mm
Material bucket size: standard 20L ink bucket
Material bucket capacity: minimum 5KG, maximum 20KG
Net weight: 90-100KG
Packing weight: 120KG



Features:
1. Simple and convenient operation.
2. Low-speed, intermittent pail side stirring;
Unique agitator design, ink can be in the process of stirring, shearing, within five minutes will be evenly mixed ink;The stirring ink does not heat up.
3, stirring speed can be fast.
4. Simply replace the agitator (standard 20L ink drum) and lock the ink tank with one key.
5. Agitator: L-shaped agitator, integral forming, without a screw hole, easy to clean.
6. Transmission mode: direct transmission to reduce power loss.
7, mixing time can be set, the body design is compact and easy to move.



HK-320 Flexography Printing Proofer Machine Automatic Flexo Ink Printing Proofer



20L 45L 50L Capacity Offset Flexo Ink Proofing Use Ink Mixer Machine 420L 45L 50L Capacity Offset Flexo Ink Proofing Use Ink Mixer Machine 5







1.Applicable objects: monochrome proofing (such as color matching, testing, etc.)

2.Input power: 220V, 50/60Hz

3.Power: 400 w

4.Ink: dropper ink

5.Proofing material thickness: 0.01-2mm (bendable material)

6.Proofing material size: 190x240mm

7.Printing area: 100x130mm

8.Plate area: 150X 150mm

9.Plate thickness: DUPONT: 1.14mm. Tessa (double-sided adhesive tape) :0.38mm

10.Plate roller and screen roller pressure: adjustable by 2mm soil, with scale to show the pressure 11.Plate roller and press pressure: can be adjusted by 2mm soil, there is scale to show the pressure 12.Printing speed adjustable: 0-80 m/min

13.Ceramic roller specifications :100x210mm

14.Number of ceramic roller lines: standard 600LPI (70-1200 lines can be customized).Suitable for: flexographic water - based, UV ink, lithography, letterpress or UV ink

16.Suitable proofing materials: paper, plastic film, non-woven cloth, napkin, gold and silver card paper,etc

17.Dimensions (length x width x height) : 450x800x240mm



Automatic Flexo Gravure Ink Offset Printing Proofer Machine

offset printing ink proofer machines.jpg













offset print proofer 1.jpg

offset printing ink proofer machines.jpgOffset Proofer.jpg




Advantages:
Even ink mode:
1. The ink leveling speed can be switched between automatic and manual, suitable for different operating habits and special situations;
2. Set the soft start mode for intermediate positioning and non-concatenating in series, reduce the unevenness of color development and ink flying phenomenon, and improve the precision of color development;
3. Four-stage ink leveling mode time setting (each segment can be set to 0-200 seconds), can be set to any ink leveling mode: positioning in series, intermittent close, fixed close and automatic speed change
More accurate and user-friendly; 4. Ink leveling pressure (automatic): can be automatically adjusted according to the rubber roller wear condition or the error of the old and new rubber rollers.
5. Color development pressure (automatic): automatically adjusted according to the color development material thickness (-1 ~ +1 mm), more accurate and convenient.
6. Cleaning: The metal roller does not move in the cleaning mode, which is safe and convenient.
7. Rubber roller: Standard and UV dual-purpose roller is standard.

offset ink proofer 1


offset proofer 1.jpg

offset printing ink proofer machine.jpg



20L 45L 50L Capacity Offset Flexo Ink Proofing Use Ink Mixer Machine 13

20L 45L 50L Capacity Offset Flexo Ink Proofing Use Ink Mixer Machine 14
FAQ 1. Are you a factory or trading company?
We are a factory.

FAQ 2. Can you supply OEM?
OEM is available.

FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.

FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.

FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.

FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.

FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
