ISO 8295 Computerized Digital Coefficient Of Friction COF Tester For Plastic Film Paper

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: BN-8048
Minimum Order Quantity: 1 set
Price: USD2000-5000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Equipment: Coefficient Of Friction Tester Measuring Range: 0 ~ 5 N, Accuracy: 0.5
Stroke: 70 Mm, 100mm, 150 Mm Optional Warranty: 12 Month, Life-time Technical Support
High Light:

220V Digital Coefficient Of Friction Tester

,

ISO 8295 Coefficient Of Friction Tester

220V 110V Computerized Digital Coefficient Of Friction Tester Plastic Testing ISO 8295 ASTM D1894, ISO 8295 Computerized Digital Coefficient Of Friction COF Tester For Plastic Film Paper



This computerized Coefficient Of Friction Tester is a dedicated testing instrument for measuring coefficient of friction of flexible plastic films, foils, paper, nonwovens and other sheet material.



Sample tests include:

ASTM D1894 (COF for Plastics)

ASTM D4521 (COF for Corrugated/Fiberboard)

ASTM D2534 (Coefficient of Kinetic Friction for Wax Coatings)

ISO 8295 (COF for Plastics)

TAPPI T-816 (COF for Corrugated and Paperboard)

TAPPI T-549 (COF for Uncoated Writing & Printing Paper)



Working Principle:

The test is used to determine the kinetic (moving) and static (starting) resistance of one surface being dragged across another. A specimen is attached to a sled of specified weight. The sled is pulled across a second surface at a speed of 150 mm/minute. The force to get the sled started (static) and to maintain motion (kinetic) is measured.

Firstly, cut two pieces of specimen, individual 64mm (2.5 in) square specimens along with a 240mm x 127mm (10 x 5 in) second surface. Put one on the test table and hold by the clamp, another one to cover the slider with sided tape.



Special features:
• Meet to international test standards;
• Flexible Transmission system drive, making more stable, more accurate test;
• Microcomputer control, operation of all buttons;

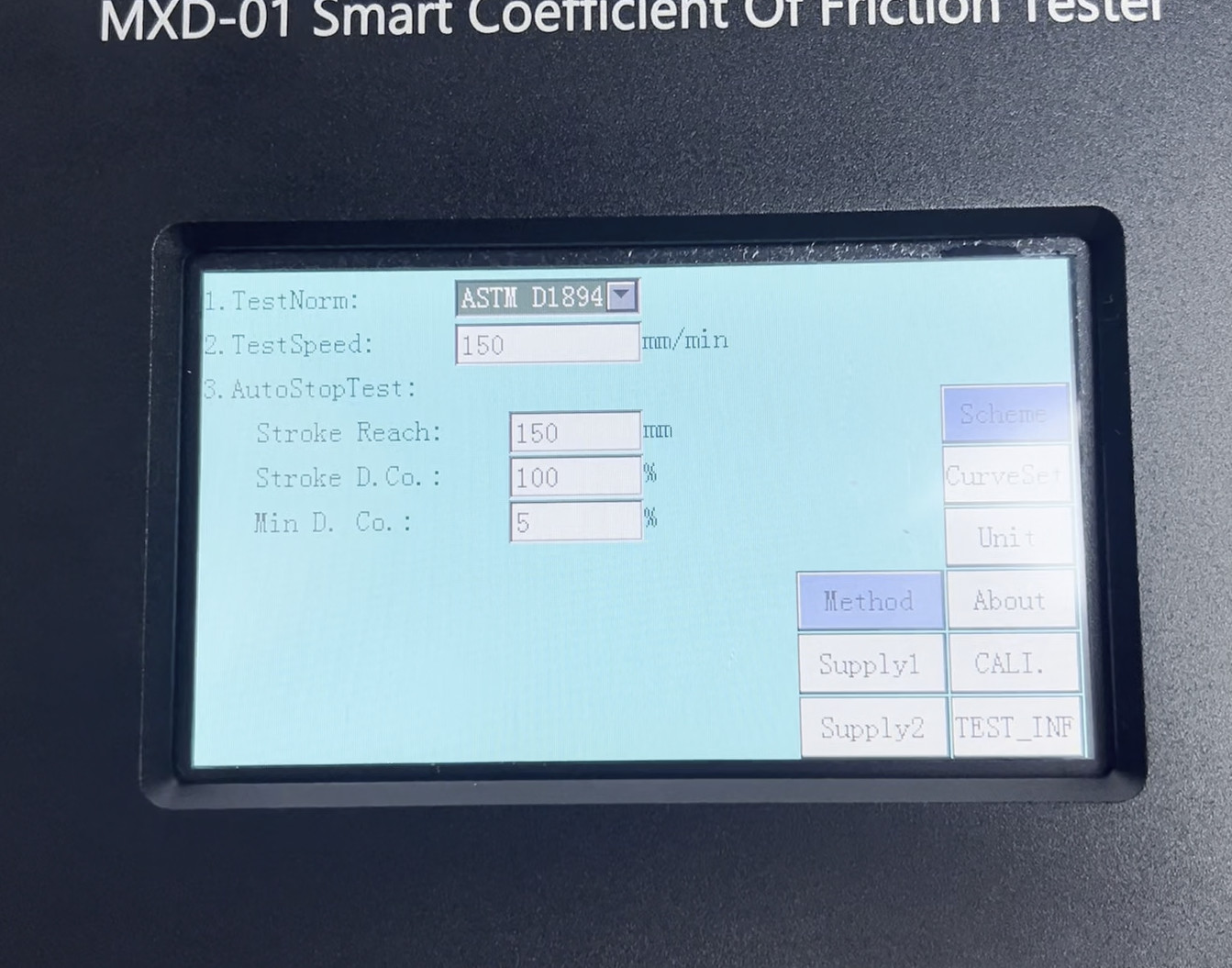

• Large touch screen full display test data;
• Automatically determine the material slip sticky status and test results between samples quantitative analysis of discrete;
• The results of the group test statistical analysis and processing, micro-printer printout mode;
• Be able to store six groups test data with a curve display, query and other necessary functions.

• RS232 communication interface to computer software CD, test curve display.



Technical parameters

Load Range: 0 ~ 5 N, accuracy: 0.5
Stroke: 70 mm, 100mm, 150 mm optional
Slider weight: 200g (Standard)
Test speed: 100mm/min, 150mm/min
Environmental Requirements: Temperature 10 °C ~ 40 °C Humidity 20% RH ~ 70% RH
Power source: AC 220V 50Hz or AC110V 60Hz
Dimensions: 400 (L) × 300 (B) × 180 (H) mm
Net weight: 26Kg

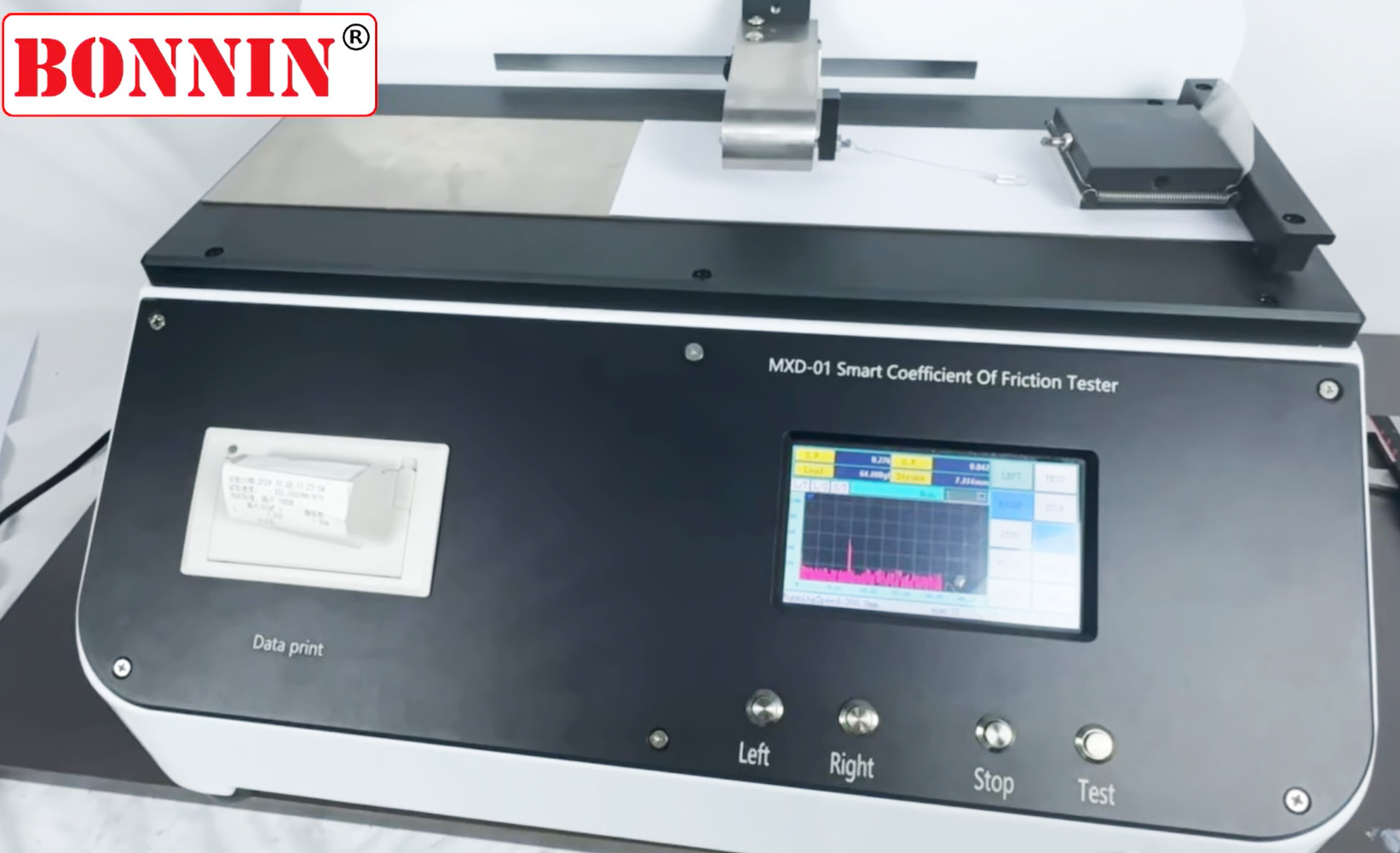

ISO 8295 Computerized Digital Coefficient Of Friction COF Tester For Plastic Film Paper 0

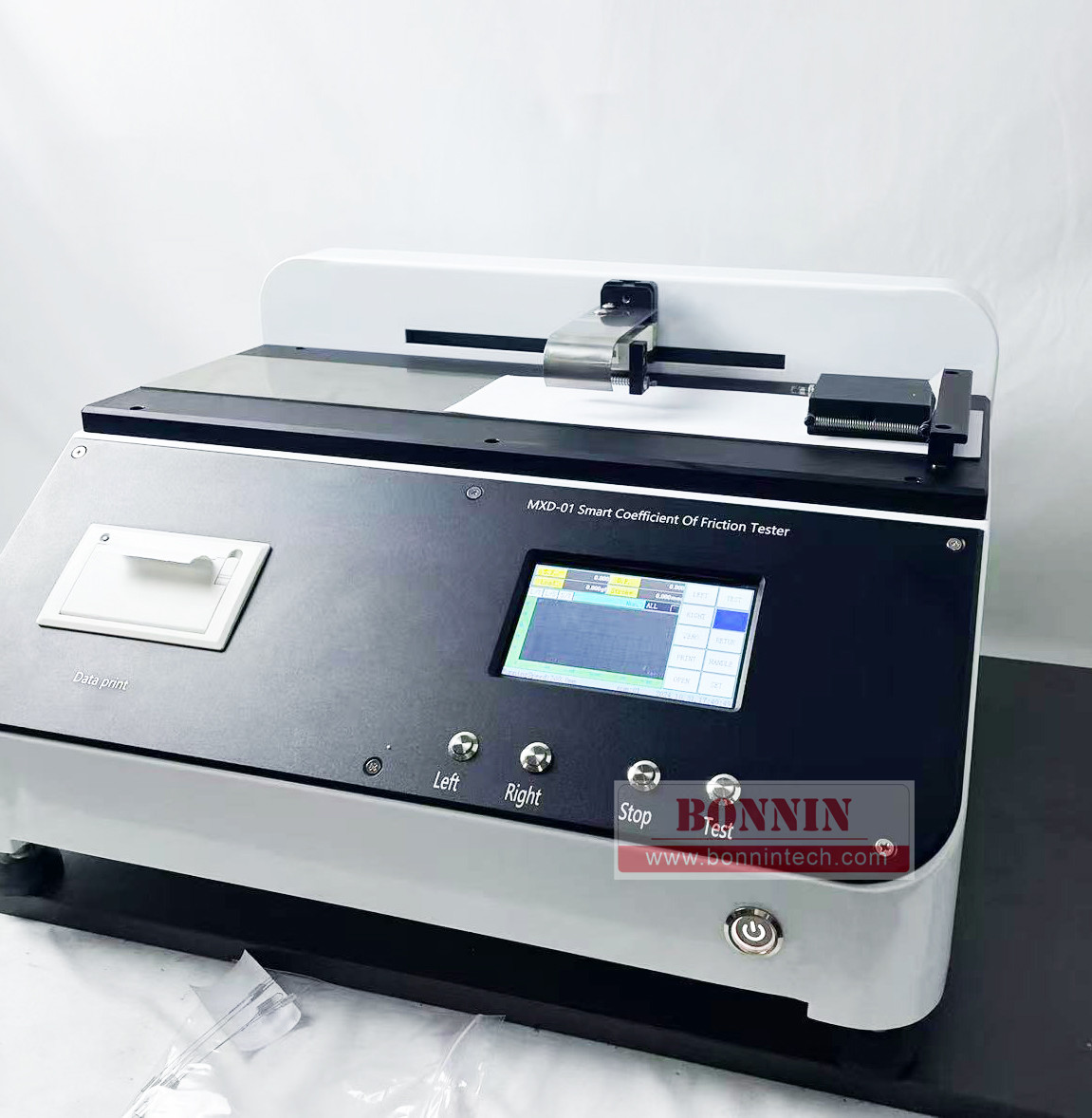

ISO 8295 Computerized Digital Coefficient Of Friction COF Tester For Plastic Film Paper 1

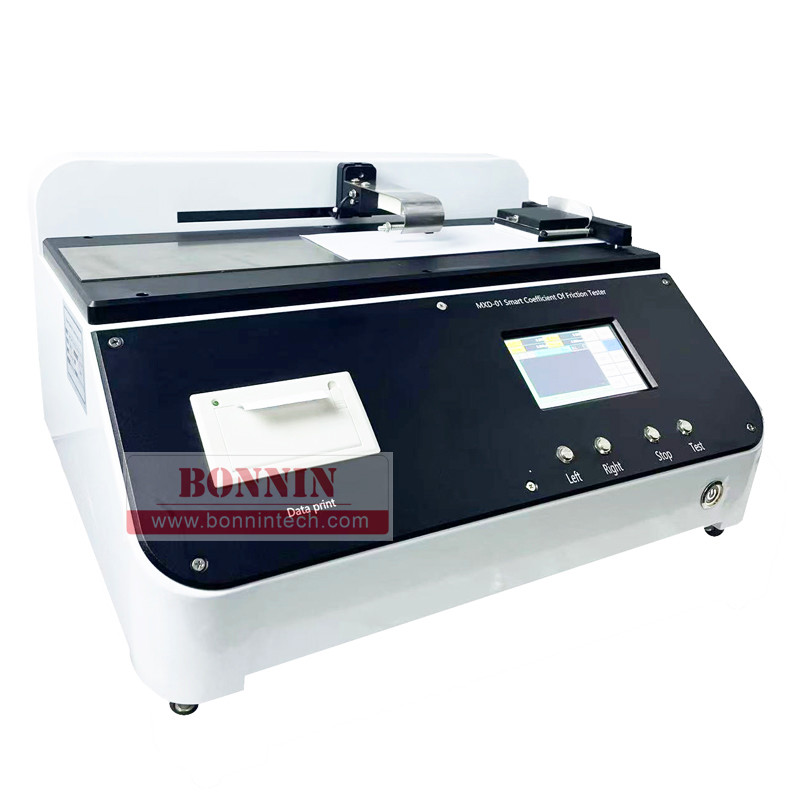

ISO 8295 Computerized Digital Coefficient Of Friction COF Tester For Plastic Film Paper 2
FAQ 1. Are you a factory or trading company?
We are a factory.

FAQ 2. Can you supply OEM?
OEM is available.

FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.

FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.

FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.

FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.

FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
