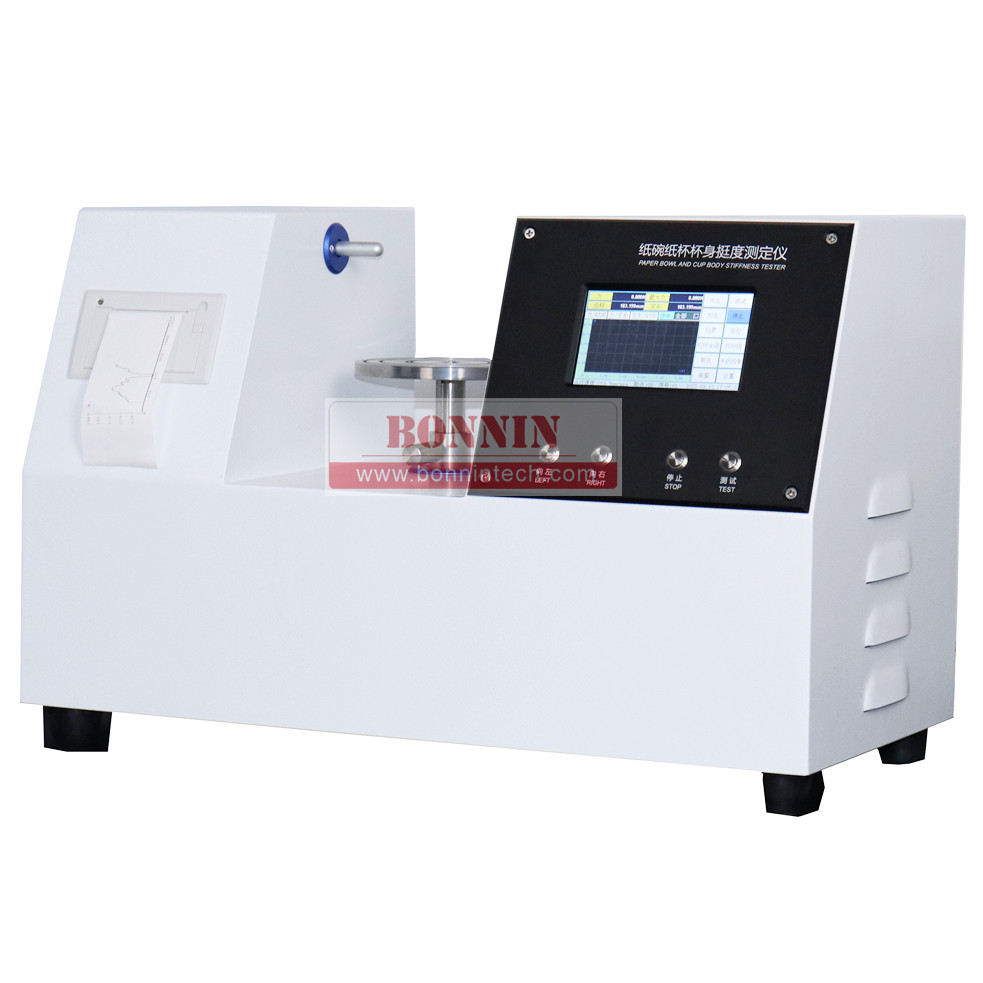

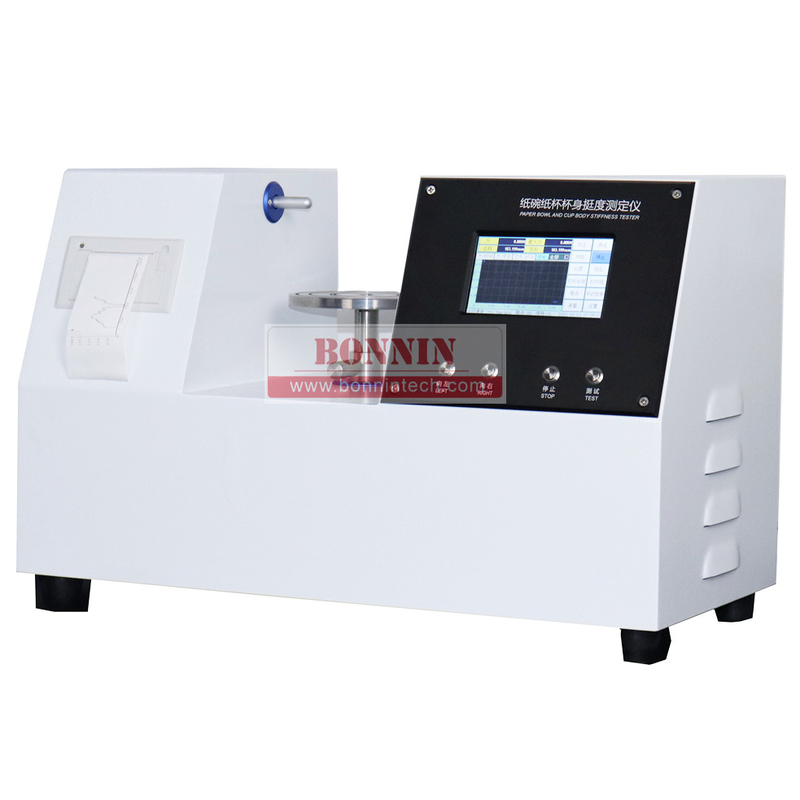

High Accuracy Touch Screen Paper Cup Stiffness Tester

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: BN-8026B
Minimum Order Quantity: 1 set
Price: USD2000-3000/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 200 sets/month
Equipment: Touch Screen Paper Cup Stiffness Tester Measuring Range: 0~20N
Paper Cup Diameter: 50~150mm Warranty: 12 Month, Life-time Technical Support
High Light:

LCD Paper Cup Stiffness Tester

,

Paper Cup Testing Equipment

,

Paper Cup Testing machine

Touch Screen Paper Cup Stiffness Tester Paper Cup Body Stiffness Testing High Accuracy



BN-8026B Touch Screen Paper Cup Body Stiffness Tester is mainly used to test the paper cup paper cup body stiffness tester, it's a testing tool of paper cup paper bowl production enterprise and carton use enterprise control quality, put the sample cup in the stiffness tester. On the movable gantry, the sensor probe is just perpendicular to the side wall of the cup, and the movable gantry is adjusted so that the vertical distance between the probe and the bottom of the cup is about two-thirds of the height of the cup. The instrument automatically records the stiffness value after moving a certain distance forward.



Technical characteristics

★ Microcomputer processing system and PVC control panel, large-screen LCD display, can be operated separately by computer and stiffness meter, one button to complete

★ Fully automatic electronic test equipment, easy to use, wider test range

★ One-click operation of the experimental process to avoid human error

★Microcomputer and computer system automatically judge the initial test status

★ equipped with a micro printer for quick and easy data output, or with a separate printer print graph and data

★Double-head paper cup body stiffness test structure design, test data is more accurate

★ Built-in tray automatic lifting mechanism, high degree of automation



Test principle

Place the sample cup on the movable gantry of the paper cup body stiffness tester, so that the sensor probe just touches the side wall of the cup vertically, and adjust the movable gantry so that the vertical distance between the probe and the bottom of the cup is about the height of the cup. Two/thirds. The instrument automatically records the stiffness value after moving a certain distance forward.



Technical parameters

Measuring range 0~20N
Paper cup diameter 50~150mm
Resolution 0.01N
Indication accuracy ±1%
Test speed 50±2.5mm/min (adjustable)
Deformation 9.5± 0.5mm
Measured paper cup height 30~150mm
Dimensions 380mmX320mmX400mm
Weight 24kg
Ambient temperature 15°C-35°C
Relative humidity up to 70% RH
Power supply 220V, 50Hz

High Accuracy Touch Screen Paper Cup Stiffness Tester 0

High Accuracy Touch Screen Paper Cup Stiffness Tester 1

High Accuracy Touch Screen Paper Cup Stiffness Tester 2
FAQ 1. Are you a factory or trading company?
We are a factory.

FAQ 2. Can you supply OEM?
OEM is available.

FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.

FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.

FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.

FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.

FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
